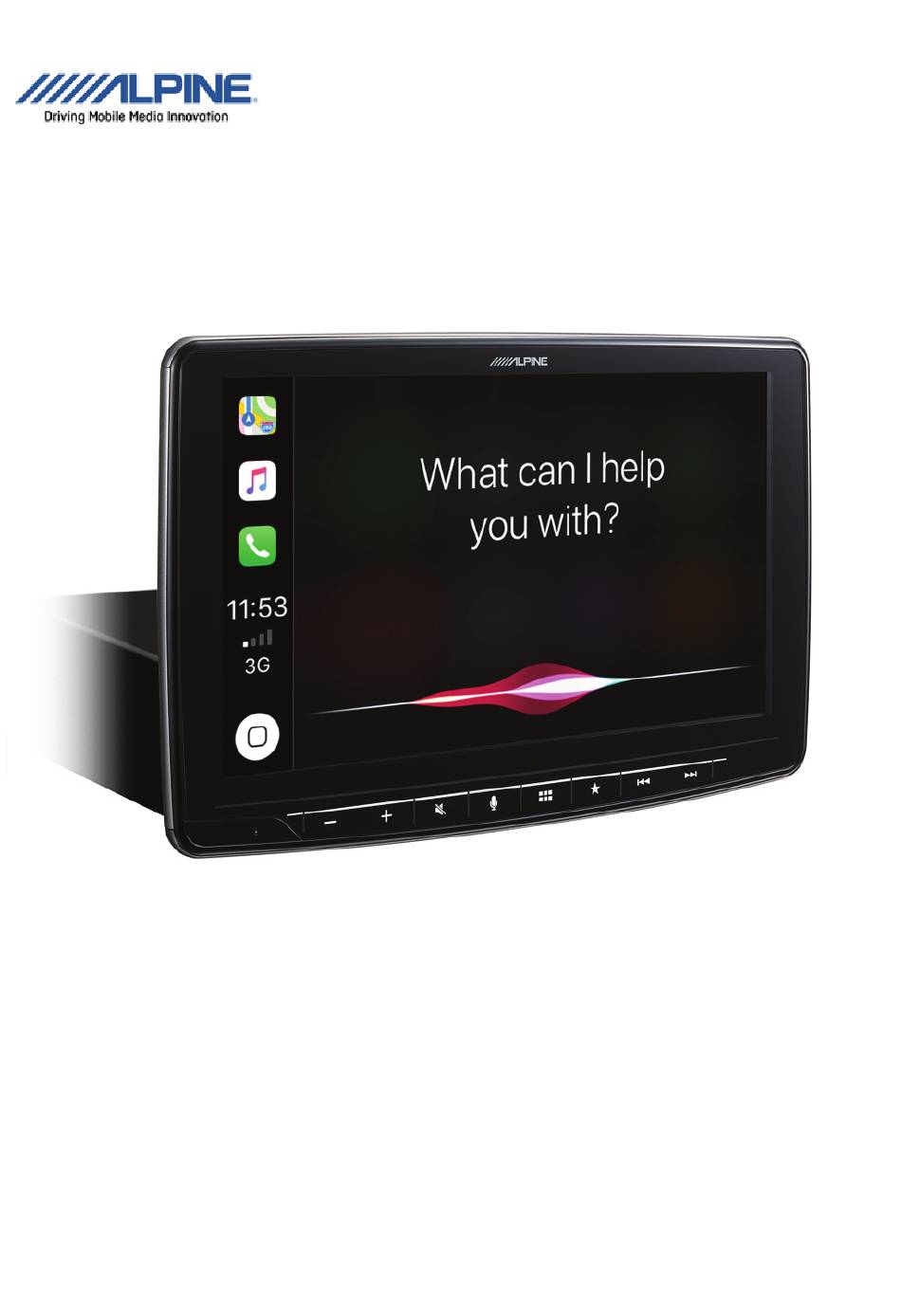

iLX-F903D
Welcome to the Future of Car-Media

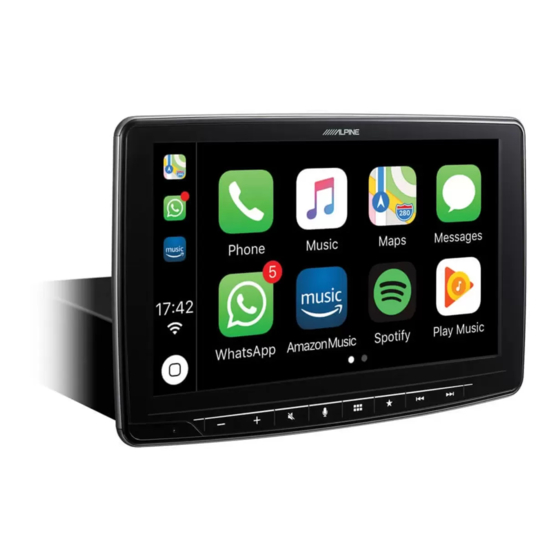

1DIN Chassis – 9" Screen. Digital Media Station, featuring Apple CarPlay and Android Auto compatibility - iLX-F903D
The iLX-F903D Alpine Halo9 brings a 9-inch high-resolution touch-screen to any vehicle with 1DIN installation space. The super-
slim display appears to simply hover over your dashboard and even includes a white LED ambient light on the bottom. You get
Apple CarPlay and Android Auto compatibility, DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming
and much more with this amazing product. Bring the future of car-media to your ride with the Alpine Halo9.

Advertisement

loading
Need help?

Need help?

Do you have a question about the iLX-F903D and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine iLX-F903D

Summary of Contents for Alpine iLX-F903D

  • Page 1 1DIN Chassis – 9” Screen. Digital Media Station, featuring Apple CarPlay and Android Auto compatibility - iLX-F903D The iLX-F903D Alpine Halo9 brings a 9-inch high-resolution touch-screen to any vehicle with 1DIN installation space. The super- slim display appears to simply hover over your dashboard and even includes a white LED ambient light on the bottom. You get Apple CarPlay and Android Auto compatibility, DAB+ digital radio, USB video playback, Bluetooth hands-free and audio streaming and much more with this amazing product.

  • Page 2: Product Information

    "Alpine Halo9" The iLX-F903D is a DAB+ Digital Media Receiver with a 9-inch WVGA touch-screen and drive-less design (no CD/DVD slot). It uses a 1DIN chassis for installation but the screen “hovers” in front of the vehicle’s dash, allowing the oversize screen to be added to a variety of vehicles without the need for custom installation.
  • Page 3 1DIN Chassis – 9" Screen The iLX-F903D features a 1DIN chassis, making it immediately compatible with any vehicle with either 1DIN or 2DIN radio dock. The 9-inch high-resolution touch-screen is attached to the front of the media box with steel brackets to achieve a rock solid display that does not wobble while driving.
  • Page 4 Adjustable Display Angle You can adjust the iLX-F903D’s display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. After the display angle is set, it gets locked into place during installation to be rock-steady while driving over any terrain and when pushing with your finger on the display to control the unit.
  • Page 5 Works with Apple CarPlay Simply connect your iPhone to the USB port of your Alpine Halo9 and launch Apple CarPlay to communicate, navigate and stay entertained with your favourite smartphone apps. Most apps are Siri optimized so you can keep your eyes on the road. Apple CarPlay is compatible with iPhone 5 and newer.
  • Page 6 If you have a Spotify account, you can now use it in your car as well. Spotify is available for both Apple CarPlay and Android Auto and features the same search and playback functionality as the app on your smartphone. Paired with the amazing 9-inch touch- screen this is a must-have app for your Alpine.
  • Page 7 This is a great app for all Amazon Prime Music users. Available for both Apple CarPlay and Android Auto, this app let’s you access millions of songs while you are on the road and control every thing via Alpine 9-inch touch screen.
  • Page 8 Online Navigation with Apple CarPlay When you’re driving, Maps helps you find the way to your destination with turn-by-turn spoken directions and new, easier-to-read visuals. When a turn is coming up, the view zooms in to show you exactly where to go. Along the way, large signs and arrows guide you in the right direction and let you know how long it’s going to take to get there.
  • Page 9 Voice Assistants Push the voice button on your Alpine unit or your steering wheel buttons (if supported) to activate Siri or the Google Assistant. You can simply ask to call people, ask for route directions, write and send messages, ask for weather forecasts and much, much more.
  • Page 10 Alpine unit. USB and HDMI You can connect USB sticks and portable hard drives to playback audio and MP4 video files. The iLX-F903D is also equipped with an HDMI input to connect the optional Alpine DVD player DVE-5300 or any other portable media player with HDMI output.
  • Page 11 Digital Time Correction, Digital X-Over and 9-band Parametric EQ. Best of all, you can set them easily from your smartphone with the Alpine TuneIt App. You also get Media Xpander, 24-Bit DAC...
  • Page 12 Vehicle Data-Bus Connectivity If your car is equipped with parking sensors, you can continue to use this convenient function with your iLX-F903D. Alpine offers many vehicle data-bus interfaces to connect your Halo9 to your vehicle’s data-bus system. This enables compatibility with your vehicle’s steering wheel control buttons, display of air conditioning settings as well parking sensor display.

  • Page 13: Features And Specifications

    1DIN installation kit included The iLX-F903D comes with a 1DIN installation cage that can be used for many vehicles with traditional 1DIN radio dock. Due to the weight distribution of this product, additional measures to secure the product may be necessary.
  • Page 14 Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible Advanced BLUETOOTH® Technology Connection: SSP (Simple Secure Pairing) Supported Individual Profile Connection Hands Free Phone and Music Streaming Phone Book: Phone Book Synchronization Speed Dial: 4 Preset Memory (per phone) Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name Device Name Display Auto Answer...

  • Page 15: Installation

    Menu Language: 24 Languages (for AV / Bluetooth), Clock Auto Dimmer Anti-theft security code Firmware Updatable Power Antenna Lead Remote Turn-On HDMI Input (Alpine Special HDMI connector required) Engine Start-Stop unaffected Installation Perfect F.I.T. Kit Solutions available SPECIFICATIONS Screen Screen Size: 9-inch Capacitive WVGA...
  • Page 16 LW Tuner Tuning Range: 153 - 281 kHz Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf USB Requirements: USB 2.0 Max. Power Consumption: 1,500 mA (CDP Support) USB Class: Mass Storage Class, Play From Device File System: FAT 16/32 MP3 Decoding: MPEG-1/2 AUDIO Layer-3 WMA Decoding: Windows Media™...
  • Page 17 Power Requirement: 14.4 V. DC (11-16V allowable) Pre Output Voltage (Before Clipping): 4 V / 10k ohms Maximum Mounting Angle: 30° Dimensions Din Size: 1DIN chassis and 9” Capacitive Touch Screen Chassis Size (W x H x D) mm: 178 x 50 x 160 mm Nose Piece Size (W x H x D) mm: 235.2 x 152.2 x 19 mm...
