1

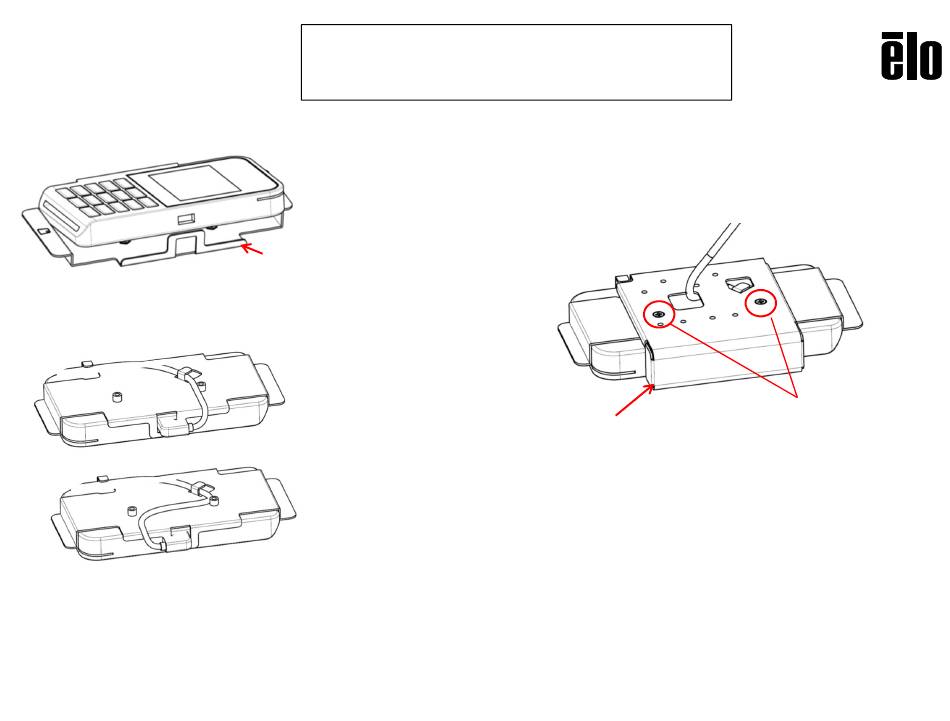

- Add payment
module to bracket (1)
2
- Add USB cable, route as shown.
QIG600028 Rev. B
INSTALLATION INSTRUCTIONS:
E953516 KIT-EMV-INGENICO ICMP CRADLE-PAYPOINT
E002639 KIT-EMV-VERIFONE E355 CRADLE-PAYPOINT
1
VERIFONE E355
INGENICO ICMP
2
3
- Add payment module/bracket (1) to bracket (2)
with 2 screws from bag L.
Screws,
X2
Pg.1
Advertisement
Related Manuals for Elo TouchSystems E953516
Summary of Contents for Elo TouchSystems E953516
- Page 1 INSTALLATION INSTRUCTIONS: E953516 KIT-EMV-INGENICO ICMP CRADLE-PAYPOINT E002639 KIT-EMV-VERIFONE E355 CRADLE-PAYPOINT - Add payment module to bracket (1) VERIFONE E355 Screws, - Add payment module/bracket (1) to bracket (2) with 2 screws from bag L. INGENICO ICMP - Add USB cable, route as shown.
- Page 2 INSTALLATION INSTRUCTIONS: E953516 KIT-EMV-INGENICO ICMP CRADLE-PAYPOINT E002639 KIT-EMV-VERIFONE E355 CRADLE-PAYPOINT - Attach payment module assy. to bracket (3) with 4 screws from bag G. - Attach module + bracket (3) using 2 screws from bag K. Attach module USB cable to computer accessory port.
- Page 3 INSTALLATION INSTRUCTIONS: E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02 E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02 - Add payment Screws, module to bracket (1) - Add payment module/bracket (1) to bracket (2) with 2 screws from bag C. VERIFONE E355 INGENICO ICMP For X-series, see pg. 2. For IDS-series, see pg.
- Page 4 INSTALLATION INSTRUCTIONS: E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02 E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02 X-series - Attach module USB cable to computer - Attach payment module assy. to accessory port. bracket (3) with 2 screws from bag D. Attach bracket (3) using 2 screws from bag A. (Partially attach L screw first and slide on module to aid assy.).
- Page 5 INSTALLATION INSTRUCTIONS: E200788 KIT-EMV-INGENICO ICMP CRADLE-X/IDS02 E201363 KIT-EMV-VERIFONE E355 CRADLE-X/IDS02 IDS-series - Remove two existing screws from IDS back-cover (green circles). Attach bracket (5) using 2 screws from bag H. Add one screw (5b) from bag A. - Attach module USB cable to computer accessory port.
- Page 6 INSTALLATION INSTRUCTIONS: E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M Screws, - Add payment module to bracket (1) - Add payment module/bracket (1) to bracket (2) with 2 screws from bag C. VERIFONE E355 INGENICO ICMP (Use table or box edge to aid assembly) - Add USB cable, route as shown.
- Page 7 INSTALLATION INSTRUCTIONS: E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M For display in landscape For display in portrait orientation, see pg. 3 - orientation, see pg. 5 - QIG600028 Rev. B Pg.2...
- Page 8 INSTALLATION INSTRUCTIONS: E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M - Attach bracket (4) using 2 screws from bag A. - Attach needed cables to computer / display (eg. pwr., video, USB,). Replace L/R cable doors. Bracket (5) up = 2002L Down = ESY22i, ESY15i, 1502L - Add bracket (5) to bracket (4) using 2 screws from bag J.
- Page 9 INSTALLATION INSTRUCTIONS: E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M - Attach bracket (3) assy. to VESA mount with 2 M4 flat head screws*. For all systems larger than 15”, attach bracket (6) with 2 M4 flat head screws* (red arrows). *Use screws in bag E for 10”/15”...
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS: E200465 KIT-EMV-INGENICO ICMP CRADLE-I/M E201088 KIT-EMV-VERIFONE E355 CRADLE-I/M - Attach needed cables to computer / display (eg. pwr., video, USB,). Replace L/R cable doors. - Attach bracket (3) assy. to VESA mount with 4 M4 flat head screws* (red arrows). *Use screws in bag E for 10”/15”...
