Field of application and product discription
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The Audio/Video Modulator modulates an A/V signal in a RF channel to
connect to a television set or to feed a small house network.
At the input one may connect a CCD camera, a VCR, a DVD player or a similar
item. In this way a children´s room, a house entrance or another sensitive area
can be monitored.
With easy programming steps, a channel, which is not used for TV-
transmission, can be selected to transmit the signal from the input source.
POWER-switch
SET-button + and – button

Programming of the output channel

Switch on the AVM 6-00 on the power switch. To set the channels, press the +
or key. The displayed value is automatically stored.
To switch the VHF channel spacing from It (Italy) to Eu (Germany), press the
SET key. The spacing used in Germany is identified by briefly flashing Eu. In this
setting, the VHF channels will be shown with the prefix E on the display. For
special channels, an S is shown in front of the number. No ID is shown for UHF
channels.

Functions menu

Special functions can be set by simultaneously pressing + -.
The possible settings are shown in the following table
1st digit 2nd digit
picture-sound carrier offset 0 0
0 1
0 2
0 3
Signal generator 1 0
1 1
Sound carrier amplitude 2 0
2 1
To leave the functions menu, press the SET Key

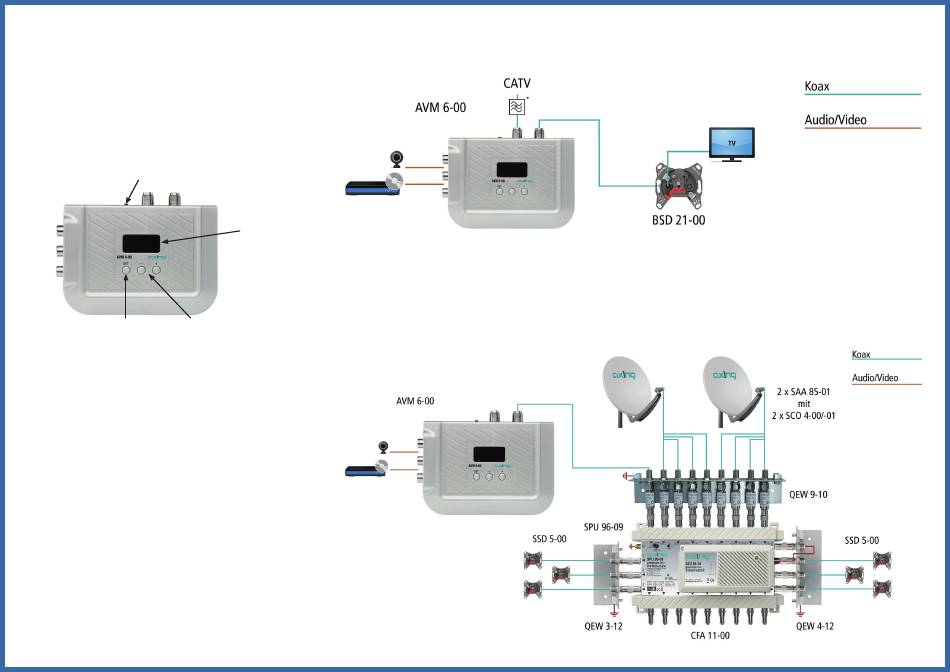

Signal feeding:

e.g. through AVM 6-00
LED-display
e.g. through multiswitch
Setting
4,5 MHz
5,5 MHz (default)
6,0 MHz
6,5 MHz
off (default)
on
12 dB
16 dB (default)
* For the application a band
rejection fiter must be used,
to block one channel of the
CATV spectrum.
