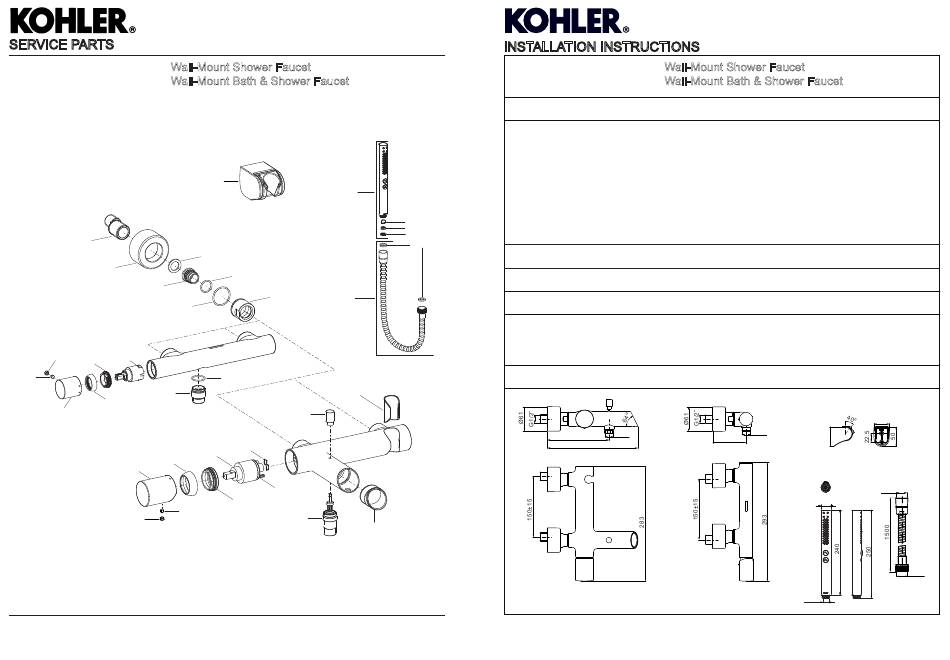

SERVICE PARTS
8962T-B9
Wall-Mount Shower Faucet

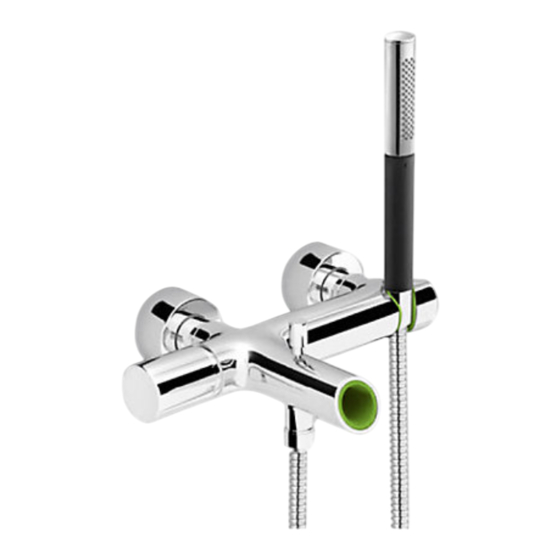

8963T-B9
Wall-Mount Bath & Shower Faucet
1170944**
3010689**
864471
3010698
834705**
1086390
3010715
833438
864922**
3010970**
1152362-A**
834791**
1146844-A**
3011113
834705**
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1338604-2A-A
1059041**
1297467**
1218659
870992
831727**
3010697**
870721
Green:3010756
White:3013331
3010690**
880084
834460
880085
3010213
3012713**
Green:3010692
White:3013329
TOOBI
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1.Flush the water supply pipes thoroughly to remove debris.
2.The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
3. The highest working pressure for handshower & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
1240266
1030624
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
77420
880010
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
HANDLE OPERATION
For 8962T-B9, push the handle back, turn clockwise for cold water, counter-clockwise for hot water.
For 8963T-B9, push the handle down, turn clockwise for cold water, counter-clockwise for hot water, bath spout
works; lift the diverter gently, turn clockwise for shower; shut off the faucet, turn counter-clockwise until it stops.
ROUGH-IN DIMENSIONS
4
1338604-2A-A
8962T-B9
Wall-Mount Shower Faucet
8963T-B9
Wall-Mount Bath & Shower Faucet
G1/2˝
153~160
84~91
223
8962T-B9
8963T-B9
TOOBI
Bracket
40
G1/2˝
Handshower
Hose
G1/2˝
Ø28
G1/2˝
G1/2˝
1
