Steps To Install The Pre5 - Cisco Performance Routing Engine 5 Quick Start Manual

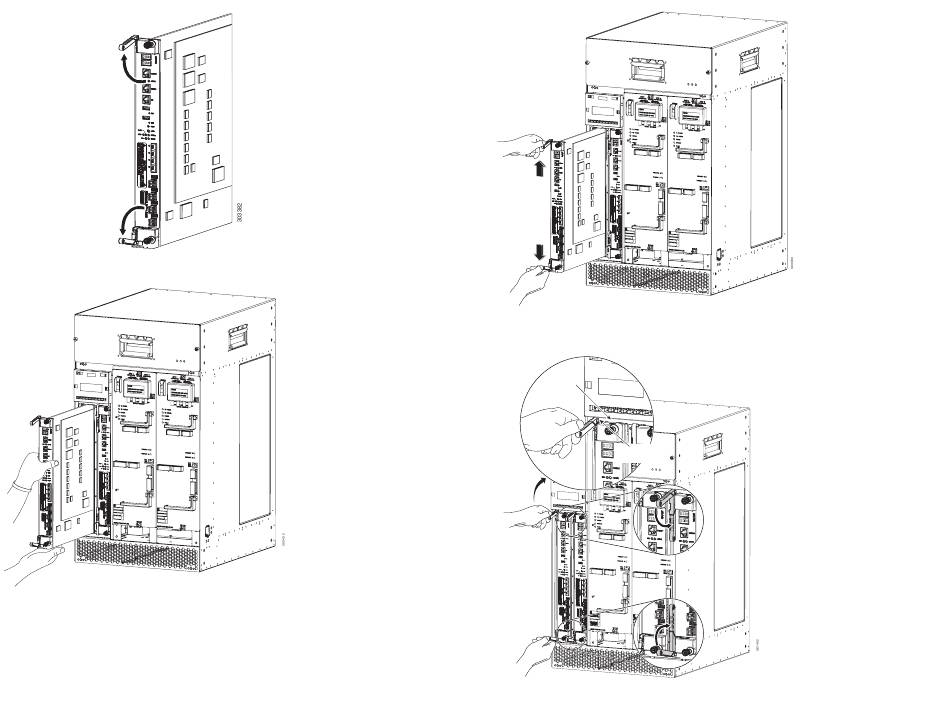

1. Ensure that the ejector levers of the PRE5 are at a fully-open position.
2. Grasp the PRE5 and position it in the slot.
3. Keep the ejector levers of the PRE5 at the fully-open position, without exerting
excessive force. Then slide the PRE5 into the slot, slowly.
Chassis
front panel
surface
End of
ejector lever
4. Slide the PRE5 into the slot until the ends of both ejector levers touch the front panel
surface of the chassis. Then, pivot both the ejector levers toward each other to firmly
seat the PRE5 in the backplane.
