MID-SIZE FLAT SCREEN ROTATION ACCESSORY
(1) Rotation Assembly
(4) 10-24 x .5" Flat Head Cap Screws
(2) ¼-20 x .5" Button Head Cap Screws
(2) ¼-20 Square Nuts
(1) 1/8" Hex Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
NOTE: The CH-SMAC400 adds 0.94"of depth and 6 lbs (2.72 kg) to overall installation. It is the installer's responsibility to ensure
that combined weight of screen and CH-SMAC400 does not exceed the maximum support weight of the mount.
1. Remove screen from mount or, if not installed, install interface bracket to back of screen per instruction supplied with the
interface.

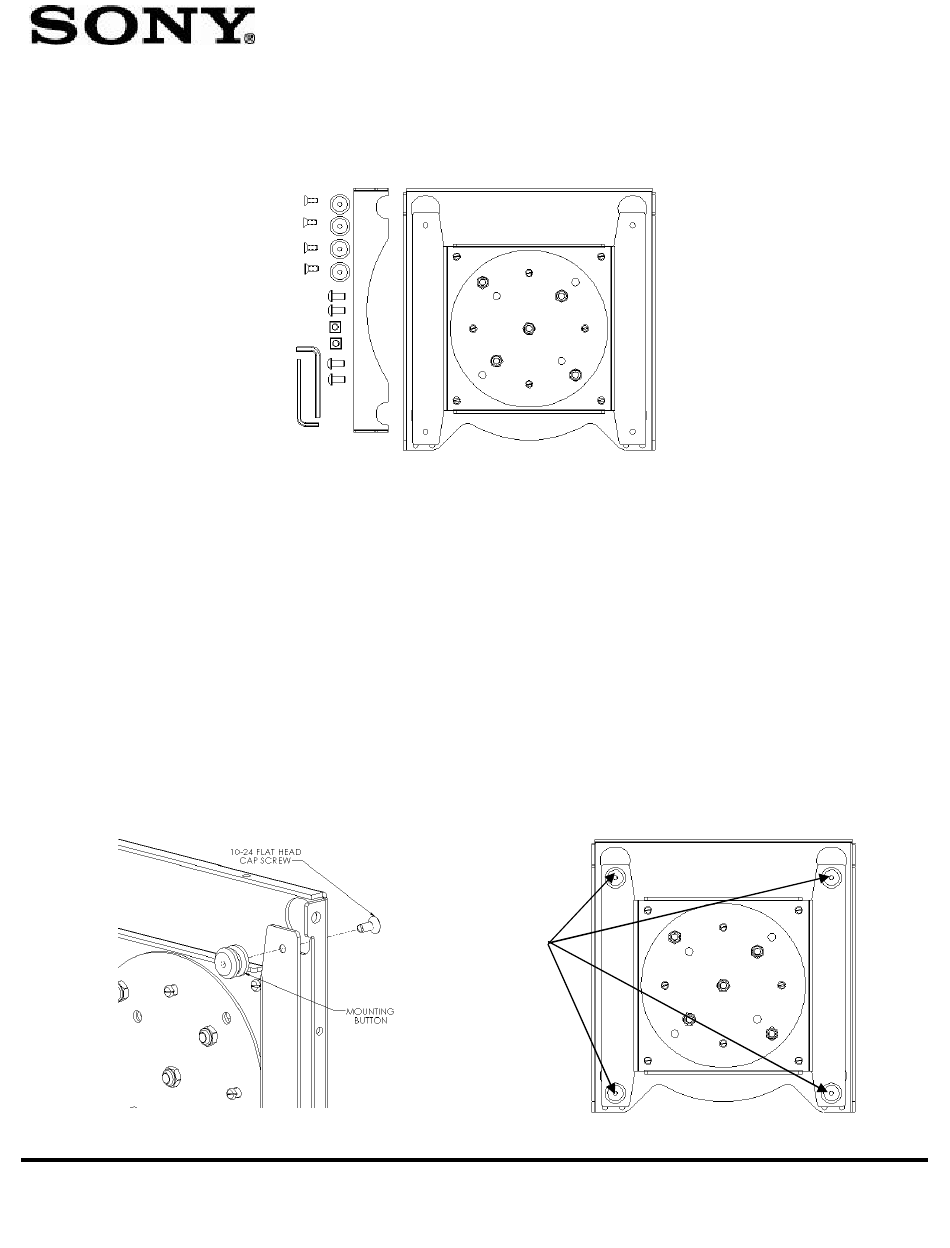

2. Attach mounting buttons to Rotation Assembly, using the four 10-24 x 1/2" flat head cap screws. Make sure the buttons are
securely fastened. .
Sony Electronics Inc.
1 Sony Drive, Park Ridge, NJ 07656
P: 201-930-1000 www.sony.com/displaysystems
INSTALLATION INSTRUCTIONS
CH-SMAC400
Prior to assembly, unpack carton completely and verify contents.
FLAT SCREEN DISPLAYS ARE EXTREMELY FRAGILE.
Figure 2
Figure 1
(4) Mounting Buttons – Tapped 10-24
(2) ¼-20 x .5" Security Button Head Cap Screws
(1) 5/32" Security Hex Key
ATTACH
MOUNTING
BUTTONS
HERE
Figure 3
8832-000278
10/08
Advertisement
Table of Contents
Related Manuals for Sony CH-SMAC400
Summary of Contents for Sony CH-SMAC400
- Page 1 FLAT SCREEN DISPLAYS ARE EXTREMELY FRAGILE. NOTE: The CH-SMAC400 adds 0.94”of depth and 6 lbs (2.72 kg) to overall installation. It is the installer’s responsibility to ensure that combined weight of screen and CH-SMAC400 does not exceed the maximum support weight of the mount.
- Page 2 CH-SMAC400. See Figure 7. Figure 7 6. With the aid of another person, lift flat panel display and CH-SMAC400 up to mount, aligning buttons of rotation accessory with slots in the mount. 7. Raise safety latch on mount to secure display, making sure latch is completely engaged.
