Summary of Contents for Goodwe GW60K-MT

  • Page 1 MT Series (50kW~75kW) INTRODUCTION © copy right reserved by GoodWe...
  • Page 2: Table Of Contents

    Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 3 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 4: Product Overview

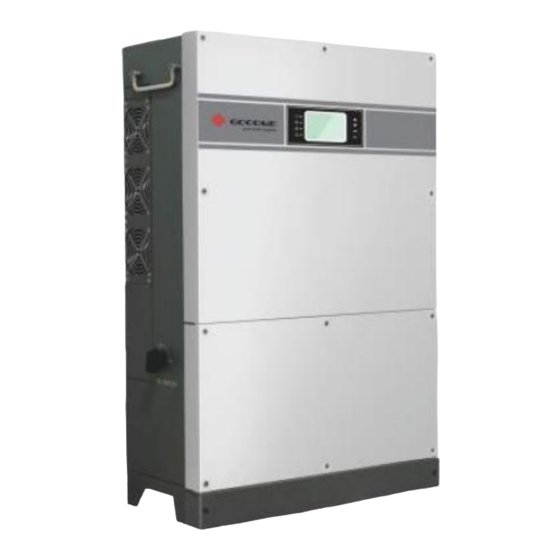

    1.1 Product Overview • MT Series Overview (50kW~75kW) Buttons Pilot Lamp LCD Display Handle Cooling Fans DC Switch © copy right reserved by GoodWe...
  • Page 5 1.1 Product Overview • MT Series Overview (50kW~75kW) PV Input Terminals WiFi/GPRS Port AC Output Terminal RS485 Port USB Port © copy right reserved by GoodWe...
  • Page 6 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 7: Development Background

     Different regions in various countries in the world,the power grids were different; An excellent inverter must have the power grid anti-interference ability; Meanwhile ,the output current harmonic wave,PF and DCI value must conform to different regions in different countries’ laws and regulations requirement. © copy right reserved by GoodWe...
  • Page 8 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 9: New Product Feature

    1.3 New Product Feature Four MPP Trackers Type Ⅱanti-thunder for AC & DC Support RS485 & WiFi & GPRS communication IP68 level fans 5 inch multi-function screen © copy right reserved by GoodWe...
  • Page 10 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 11: Installation Guide

    2.1 Installation Guide 1.Open package 3.Installation and check instructions 2.Accessory package 6.RS485 wires 4.Connection to Grid installation (AC Side Connection) 5.DC Side Connection 8.Monitoring 7.WiFi / GPRS Configuration module installation © copy right reserved by GoodWe...
  • Page 12 2.1 Installation Guide 1.Open package and check © copy right reserved by GoodWe...
  • Page 13 2.1 Installation Guide 2.Accessory package © copy right reserved by GoodWe...
  • Page 14 2.1 Installation Guide 3.Installation instructions Carry out the installation vertically or tilt backward no more than 15 degrees, no lateral tilt, and wiring area should be downward, which is shown in below picture. © copy right reserved by GoodWe...
  • Page 15 2.1 Installation Guide 3.Installation instructions To ensure the good heat dissipation and convenient disassembly, the minimum gap around the inverter should not be less than the following values, which are shown in below picture. © copy right reserved by GoodWe...
  • Page 16 (1) Drill 6 holes on the wall with the backboard as template positioning, whose diameter is 13mm , depth is 65mm; the size of MT model is shown in below pictures. (2) Fix the backboard on the wall with the expansion screws in accessory bag. © copy right reserved by GoodWe...
  • Page 17 (3) Carry the inverter with the handles on both sides of the inverter of MT series, which is shown in below pictures. (4) Hang the inverter on the backboard, which is shown in below pictures. © copy right reserved by GoodWe...
  • Page 18 2.1 Installation Guide 4.Connection to Grid (AC Side Connection) Unscrew the inverter’s downside cover and take it way. AC Side © copy right reserved by GoodWe...
  • Page 19 2.1 Installation Guide 4.Connection to Grid (AC Side Connection) Cable specifications of AC electric wire are shown in pictures. © copy right reserved by GoodWe...
  • Page 20 2.1 Installation Guide 4.Connection to Grid (AC Side Connection) N---Null Line L1---Live Wire 1 ---Earth Wire L2---Live Wire 2 L3---Live Wire 3 Note: The N line of GW65KHV-MT / GW75KHV-MT should not be connected. © copy right reserved by GoodWe...
  • Page 21 Supported power grid forms: The power grid forms supported by the three-phase machine type of GW50K- MT/GW60K-MT series include TN-S, TN-C, TN-C-S, and TT, as shown in below picture. For TT power grid form, the effective value of voltage between the null Note: line and the earth wire is less than 20V.
  • Page 22 2.1 Installation Guide 4.Connection to Grid (AC Side Connection) The power grid form supported by the three-phase machine type of GW65KHV- MT/GW75KHV-MT series is IT, as shown in below picture. © copy right reserved by GoodWe...
  • Page 23 2.1 Installation Guide 5.DC Side Connection Cable specifications of DC electric wire are shown in below picture. © copy right reserved by GoodWe...
  • Page 24 Before connecting PV string, make sure DC switch is turned off. Installation instruction of PV+ wire of MC4 connectors please refer to below pictures. Step 3 Step 4 Step 1 Step 2 Step 7 Step 6 Step 8 Step 5 © copy right reserved by GoodWe...
  • Page 25 2.1 Installation Guide 5.DC Side Connection Installation instruction of PV- wire of MC4 connectors is the same with PV+ wire. © copy right reserved by GoodWe...
  • Page 26 2.1 Installation Guide 6.RS485 wires installation This function only applies to inverter with RS485 ports and communication lines must be separated from other power lines to avoid communication interference. © copy right reserved by GoodWe...
  • Page 27 2.1 Installation Guide 6.RS485 wires installation The RS485 interface is used to connect EzLogger Pro only, please make sure the connecting cables not exceed 1000m. RS485 connection please refer to below picture. © copy right reserved by GoodWe...
  • Page 28 WiFi / GPRS module: 1).Connect the white 5 pins connector to WiFi / GPRS module as picture a & b showed and fix the WiFi / GPRS module on the inverter as picture c showed. © copy right reserved by GoodWe...
  • Page 29 2.1 Installation Guide 7.WiFi / GPRS module installation 2).Check the connection inside the inverter as below picture showed. © copy right reserved by GoodWe...
  • Page 30 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 31: Internal Structure

    2.2 Internal Structure  Block Diagram of MT series inverter. Input MPPT Circuit1 Filter Input MPPT Circuit2 Filter Output DC/AC Filter Filter Filter Input MPPT Circuit3 Filter Input Output Isolation Relay MPPT Circuit4 Filter DC Switch © copy right reserved by GoodWe...
  • Page 32 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 33: Trouble Shooting

    2.3 Trouble Shooting  Error Code The error message in below diagram will be displayed on the LCD if a fault occurs. © copy right reserved by GoodWe...
  • Page 34 Should any problems arise, the red (FAULT) LED indicator on the front panel lights up and the LCD screen will display relevant information. Please refer to the following table for a list of error message and associated solutions. Error message display area The red LED lights up © copy right reserved by GoodWe...
  • Page 35 2.3 Trouble Shooting  Troubleshooting © copy right reserved by GoodWe...
  • Page 36 2.3 Trouble Shooting  Troubleshooting © copy right reserved by GoodWe...
  • Page 37 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 38: Technical Data

    45~55Hz/55~65Hz; 422~528Vac AC output range 0.80leading…0.80lagging Power factor <3% THDi 3W/N/PE 3W/N/PE 3W/PE 3W/PE Grid connection 98.70% 98.8% 98.8% 98.8% Max. efficiency 98.3% 98.5% 98.5% 98.5% Euro efficiency 99.90% 99.90% 99.90% 99.90% © copy right reserved by GoodWe MPPT adaptation efficiency...
  • Page 39 Weight (kg) Wall Bracket Mounting -25~60℃ Ambient temperature range 0~95% Relative humidity 4000m Max. operating altitude IP65 Protection degree Transformerless Topology Fan cooling Cooling Display Communication USB2.0; RS485; WiFi/GPRS/LAN; Bluetooth 5/10/15/20/25 (Optional) Standard warranty(years) © copy right reserved by GoodWe...
  • Page 40 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 41: Monitoring Configuration

    Otherwise please set the communication to WiFi according to user manual of inverter at first. 1.3). Power WiFi router on. 1.4). Switch on the WiFi of laptop. 2). Connect laptop to “Solar-WiFi” 2.1). Search WiFi network and connect to “Solar-WiFi” (Password: 12345678). © copy right reserved by GoodWe...
  • Page 42 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 2.2). Browse website: http://10.10.100.253 2.3). Enter User Name: “admin”, Password: “admin”. © copy right reserved by GoodWe...
  • Page 43 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 3). Click ‘Start Setup’ © copy right reserved by GoodWe...
  • Page 44 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 4). Select WiFi router’s SSID and click ‘Next’ © copy right reserved by GoodWe...
  • Page 45 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 5). Type in password and click ‘Next’ Note: If it fails, there will be a notice. © copy right reserved by GoodWe...
  • Page 46 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 6). Click ‘OK’ and configuration process completes. © copy right reserved by GoodWe...
  • Page 47 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) Note: If you want to modify the SSID and password of the inverter’s WiFi, please refer to picture below. © copy right reserved by GoodWe...
  • Page 48 3.2 Monitoring Configuration 1.WiFi Inverter (Via laptop/Pad) 7). Disconnect the inverter WiFi , and connect to the local WiFi , create a station in GoodWe portal with the SN and check code. System will be online in the portal. www.goodwe-power.com Portal Website:...
  • Page 49 1.3). Power WiFi router on. 1.4). Download latest version monitoring APP from google play store or Apple store and install it on smart phone or pad.Run it.(APP’s name can be found in user manual) © copy right reserved by GoodWe...
  • Page 50 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 2). Click “Settings” and connect to “Solar WiFi” . Password:12345678 © copy right reserved by GoodWe...
  • Page 51 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 3). Run App and press “Configure Wi-Fi Quickly” © copy right reserved by GoodWe...
  • Page 52 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 4). The normal connection of Wi-Fi module If it is not shown like this Reconnect your smart device to Solar-WiFi again and back to step 3. © copy right reserved by GoodWe...
  • Page 53 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 5). Press “Router SSID” to choose your Wi-Fi router network. © copy right reserved by GoodWe...
  • Page 54 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 6). Enter password then press “Start”. © copy right reserved by GoodWe...
  • Page 55 3.2 Monitoring Configuration 1.WiFi Inverter (Via APP) 7). Configured successfully © copy right reserved by GoodWe...
  • Page 56 • Install the Ezlogger Pro to the target position; • Connect the adapter; • Device Connection; • A: Connect the inverter to the Ezlogger Pro ; • B: Connect the COM port to PC. • Start to configure the Ezlogger Pro. © copy right reserved by GoodWe...
  • Page 57 1). Check and record the IP Address, Subnet Mask, and Gateway after the laptop joins the local area network; Fig 2. Click ‘View Fig 1. Click ‘Start’, and network status and tasks.’ Click ‘Control Panel’. © copy right reserved by GoodWe...
  • Page 58 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro • Local Area Connection • Wireless Connection Fig 3. Click ‘Local Area Note: The “Local Area Connection’. Connection” option will only appear when the net port is connected. © copy right reserved by GoodWe...
  • Page 59 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro Fig 4. Click ‘Details’ © copy right reserved by GoodWe...
  • Page 60 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro Fig 5. Record the 3 items in Fig 5, which will be useful later. © copy right reserved by GoodWe...
  • Page 61 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro 2). Connect the Ezlogger with laptop via STP cable; 3). Set the local area IP Address to 192.168.1.100 on the laptop; © copy right reserved by GoodWe...
  • Page 62 1、Run program ProMate on the laptop; a).The program is in the USB disk in Ezlogger box. b).If the USB disk is missing, please download ProMate from GoodWe website and install the program on the laptop. 2、The connection status display as ‘Connection Succeeds’, and EzLogger Pro SN and software version will come out soon;...
  • Page 63 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro 6). Click the refresh button, then all inverter’s SN will be listed; If any inverter is missing, please check the cable connection off the inverter. © copy right reserved by GoodWe...
  • Page 64 3.2 Monitoring Configuration 2.RS485 Inverter with EzLogger Pro 7、 Modify the IP Address, Subnet Mask, Gateway to the one recorded (Refer to Page 12); 8、 Press ‘Set’, find ‘Set IP Successfully!’ in ‘Log Info’; © copy right reserved by GoodWe...
  • Page 65 2.RS485 Inverter with EzLogger Pro 9). Then Disconnect the laptop, and connect the net port to the router, create a station in GoodWe portal with the SN and check code. System will be online in the portal. Portal Website: www.goodwe-power.com.
  • Page 66 3.2 Monitoring Configuration 3.GPRS Inverter GPRS inverter is unnecessary to configure for now , just to create a station in GoodWe portal with the SN and check code. System will be online in the portal. © copy right reserved by GoodWe...
  • Page 67 Contents  Product Overview  Development Background  New Product Feature  Installation Guide  Internal Structure  Trouble Shooting  Technical Data  Monitoring Configuration  Certifications © copy right reserved by GoodWe...
  • Page 68 3.3 Certifications MT series relevant certifications: © copy right reserved by GoodWe...
  • Page 69 THANKS © copy right reserved by GoodWe...

This manual is also suitable for:

Mt seriesGw50k-mtGw65khv-mtGw75khv-mt
