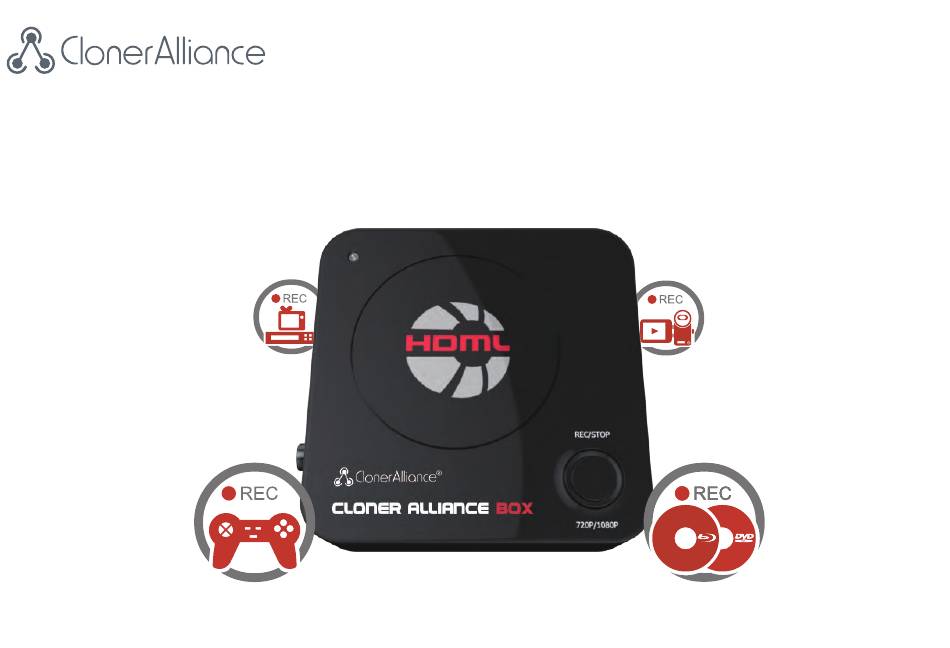

- Page 1 ClonerAlliance Box User Manual Record Videos For Colorful Life Keep all Videos in your hands via HDMI...
- Page 2 ClonerAlliance Box User Manual This documentation describes how to use ClonerAlliance Box (Model: CA988B) device. Copyright Notice Copyright © ClonerAlliance Inc. All rights reserved. Documentation Version 2.5.2 No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of ClonerAlliance™...
- Page 3 Safety Notices Before using ClonerAlliance Box, please ensure that you read and understand the safety precautions below: 1. Do not attempt to open the case of ClonerAlliance Box or modify it in any way, as this will void the warranty. 2.
-
Page 4: Table Of Contents
CONTENTS Getting Started Box Contents ................1 Product Diagram How to record videos to the USB storage device Connect... -
Page 5: Getting Started
GETTING STARTED 1.1 Box Contents • a. ClonerAlliance Box • c. Power Adapter • b. HDMI Cable • d. User Manual... -
Page 6: Product Diagram
PRODUCT DIAGRAM 1. ON/OFF: Press this button to turn on/turn off the power. 2. 5V/2A: Plug the power adapter into this socket and power on ClonerAlliance Box. 3. IN: Connect an HDMI cable between the source video player and ClonerAlliance Box. 4. -
Page 7: How To Record Videos To The Usb Storage Device
Video Player STORAGE POWER CLONER ALLIANCE BOX Your ClonerAlliance Box can capture any video from any video source/device, which is a useful Recording and playing devices for sound and image carriers. All you need is the right ports/connections! 1. Plug the power adapter into the power socket and plug the other end into the 5V/2A port of ClonerAlliance Box. -
Page 8: Record/Capture
ClonerAlliance Box User Manual 3.2 Record/Capture 1. After all devices are connected properly, please press the“ON/OFF”button to switch on the power of ClonerAlliance Box. After turning on ClonerAlliance Box. The LED light will be solid Blue or Green. Then turn on other devices. 2. - Page 9 ClonerAlliance Box User Manual LED Status Indication Solid Green The current video is at 720p/others. Solid Blue The current video is at 1080p. Blink Blue/Blink Green Recording Blink Blue/Green alternately Buffering, please wait. Tips 1. When the storage space of the USB flash drive or mobile hard disk is full, ClonerAlliance Box will stop recording. 2.
-
Page 10: Supported Resolutions
SUPPORTED RESOLUTIONS 1920x1080 (50p), 1920x1080 (60p) 1920x1080 (24p), 1920x1080 (25p), 1920x1080 (30p) 1920x1080 (50i), 1920x1080 (60i), 1280x1024 (60p) Input 1280x720 (60p), 1280x768 (60p), 1280x800 (60p) Output 720x480 (60i), 720x480 (50i) 640x480 (60p), 720x480 (60p), 720x576 (50p) Recording 1920x1080 (30p), 1280x720 (60p), 1280x720 (30p) 640x480 (60p), 720x480 (60p), 720x576 (50p) -
Page 11: Product Specifications
PRODUCT SPECIFICATIONS Capture format MP4 (H.264) Video standards (input) NTSC, PAL Supported disk formats FAT32, NTFS Input signals HDMI Output signals HDMI (passthrough), USB Bitrate Max: 10Mbps Note: ClonerAlliance Box will record several 2GB files if the USB is in FAT32 format. If in NTFS format, ClonerAlliance Box will record only 1 file with greater size. -
Page 12: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS You can visit https://www.cloneralliance.com/help/ at any time to view latest technical questions and answers. My TV Has A Black Screen When Using ClonerAlliance Box, what should I do? Don’t worry, it’s very easy to solve this problem. Please click the link below to find the answer. https://www.cloneralliance.com/help/knowledgebase/black_screen_tips What kinds of mobile hard disks do ClonerAlliance products support? 2TB capacity or below. - Page 13 ClonerAlliance Box User Manual If it keeps flashing, please check the steps below: 1. Please make sure your connection is correct first. Connect ClonerAlliance Box to TV via an HDMI cable (HDMI Out). Connect your source device to ClonerAlliance Box(HDMI In). 2.
- Page 14 ClonerAlliance Box User Manual Please download MP4Cloner at: https://www.cloneralliance.com/files/download/mp4cloner.exe HDMLCloner Helper is a smart program to create familyvideodiscs/Bfamilyvideodiscs movie discs from video files, whether downloaded from video websites or recorded via HDMI. As we know, it is not only a recorded computer program for used in sound and image editing, but also a reorded computer operating program.
-
Page 15: Contact Us
CONTACT US If you encounter any problem when using our products, please contact us by support@cloneralliance.com or call 18449CLONER (toll free) and we will serve you with utmost satisfaction. We’ll offer a satisfying discount on batch purchase and affiliate program. If you are interested, please contact us by market@cloneralliance.com. -
Page 16: After Sales Warranty
AFTER SALES WARRANTY ClonerAlliance Inc. provides 60Day No Hassle Return(No Additional Fee) and 2Year Replacement Warranty Service for all hardware. Please rest assure to use ClonerAl liance products. -
Page 17: Disclaimer
DISCLAIMER HDMI is a registered trademark of HDMI Licensing, LLC. USB is a registered trade mark of USB Implementers Forum. HDMI and USB are registered trademarks of their respective companies. ClonerAlliance Inc. is not affiliated with those companies. - Page 18 Toll free: 18449CLONER Support Email: support@cloneralliance.com Market Email: market@cloneralliance.com www.cloneralliance.com Copyright ClonerAlliance Inc. All rights reserved.
