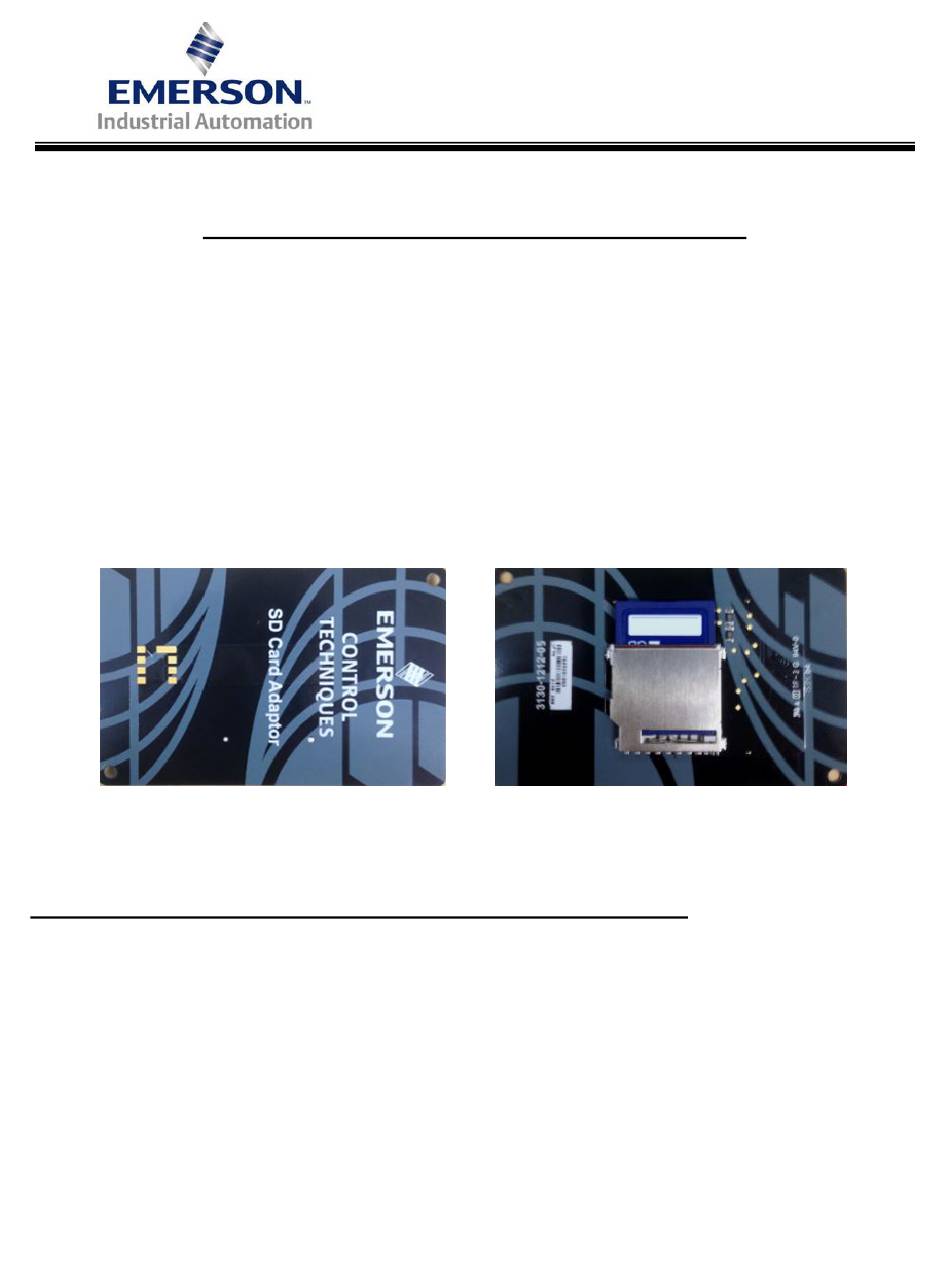

Application Note M700 AN0006 Rev-02-9/20/2016 This Application Note applies to the Unidrive M700 Drive Series Saving and Restoring Unidrive M700 drive parameters This application note will describe how to save and then restore parameters to a Unidrive M700 using the NV Media Card. The NV Media Card is made up of two individual parts fitted together: the SD-CARD-ADAPTOR and a SD memory card.
Page 2
Warning: Be aware of possible live terminals when installing the keypad with power on. Figure 1 To install, align the keypad and press gently in the direction shown in Figure 1 until it clicks into position. To remove, reverse the installation instructions. Once the keypad has been removed the NV Media Card can be installed into the drive as shown in Figure 2.
Page 3
Figure 2 Once the NV Media card has been installed into the drive as shown in Figure 2 (2) the drive keypad will need to be replaced and drive powered on in order to program the NV Media card. Using the drive keypad scroll up or down to drive parameter 00.030. Press the keypad ‘M’ so that ‘None’...
Page 4
Cycle power to the drive and the newly programmed M700 drive is now ready for use. Resources Unidrive M700 User Guide Unidrive M700 Parameter Reference Guide Guides, can be found on our website: www.emersonindustrial.com/en-US/controltechniques You can email to techsupport.cta@emerson.com You can call Technical Support at 952-995-8000, 24/7/365...
