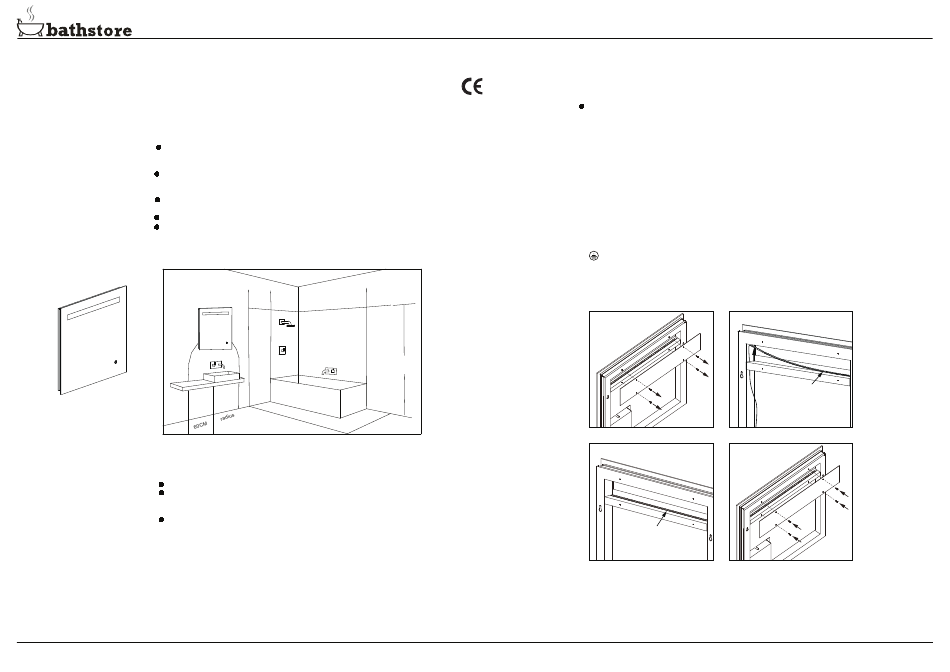

bathstore Atmos Installation Instructions

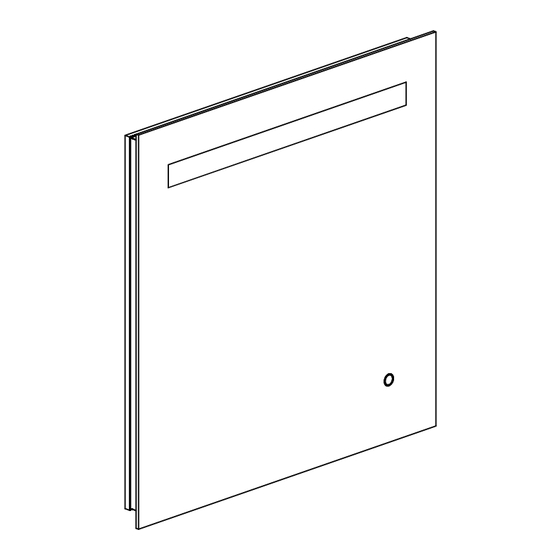

ATMOS AMBIENT COLOUR CHANGE LED MIRROR INSTALLATION INSTRUCTIONS
Please read these instructions carefully before installation.
Installation should be carried out by a qualified electrician.
Please leave a copy for the user/maintenance engineer for future reference.
GENERAL
THIS PRODUCT CONFORMS TO UK SAFETY STANDARDS AND MUST BE INSTALLED IN
ACCORDANCE WITH CURRENT IEE WIRING REGULATIONS AND BUILDING REGULATIONS
(PART P).
THIS PRODUCT MUST BE EARTHED, AND SHOULD NOT BE CONNECTED TO AN UNEARTHED
CIRCUIT. IF THERE ARE ONLY TWO WIRES COMING FROM YOUR POWER SUPPLY IT MEANS
THAT THIS FITTING BE WIRED TO AN UNEARTHED CIRCUIT.
ENSURE THAT CONNECTIONS ARE TURNED OFF AT THE CONSUMER UNIT OR FUSE BOARD
BEFORE INSTALLING OR CARRYING OUT ANY MAINTENANCE.
THIS PRODUCT IS FOR IN DOOR USE ONLY.
THIS PRODUCT IS IP44 RATED AND CAN BE INSTALLED IN THE ZONE 2 (AS DEFINED BY THE
IEE WIRING REGULATIONS) AND BEYOND. SEE THE DIAGRAM BELOW.
IEE Bathro m Zones Diagram
zone
2
41800181100
IMPORTANT
When working at heights, please use a suitable platform to work from.
Please note: For new installations, check for any electrical cables or pipe
work (gas/water) in the vicinity of the intended mounting point before proceeding
with the installation.
Ensure that the fixing location is able to take the weight of the complete fitting.
Wear suitable eye protection when drilling. Be careful when using power tools near water.
o
60CM
60CM
zone
1
zone zone
2
2
225cm
OUTSIDE ZONES
1 - 2
Do NOT strike mirror glass with hard or pointed items. It is
recommended that the product is cleaned with a soft, dry,
non abrasive cloth. Do NOT use cleaning agents or abrasive
materials on any type of finished surface. Do NOT allow
moisture to come into contact with the electrical components.
COMPLIANCE
This product complies with the following safety standards:
BS EN 60598-1: 2008+A11: 2009, EN60598-2-1: 1989
WIRING
This product is manufactured to class I category and requires
an earth connection
C L O O U R C O D N I : G
L - i L e v = B o r w n
N - N e t u l a r = l B e u
- a E h t r = G e r n e & e Y o l l w
REPLACEMENT OF LED STRIPS
- turn off at consumer unit or fuse board before accessing wiring.
WARNING
When replacing an LED strip please follow the steps illustrated below to remove
the old LED strip.
1. 2.
4.
3.
New LED
Any Queries Call : 08000 23 23 23
2nd Floor, 69-71 Clarendon Road
Watford, Hertfordshire
WD17 1DS
Old LED
B
