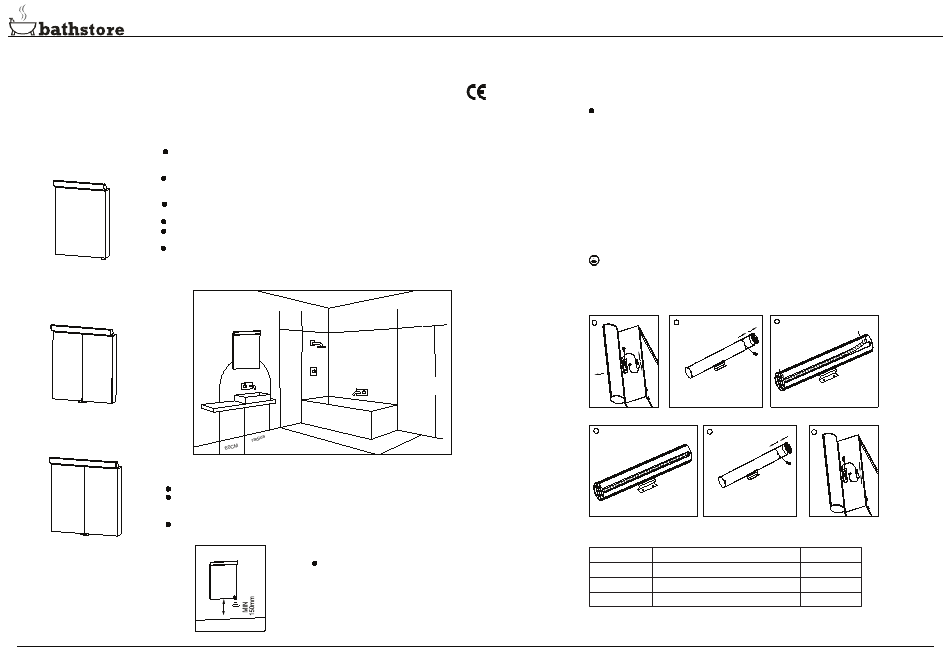

bathstore 41800180840 Installation Instructions Manual

Please read these instructions carefully before installation.
Installation should be carried out by a qualified electrician.
Please leave a copy for the user/maintenance engineer for future reference.

GENERAL

THIS PRODUCT CONFORMS TO UK SAFETY STANDARDS AND MUST BE INSTALLED IN
ACCORDANCE WITH CURRENT IEE WIRING REGULATIONS AND BUILDING REGULATIONS
(PART P).
THIS PRODUCT MUST BE EARTHED, AND SHOULD NOT BE CONNECTED TO AN UNEARTHED
CIRCUIT. IF THERE ARE ONLY TWO WIRES COMING FROM YOUR POWER SUPPLY IT MEANS
THAT THIS FITTING BE WIRED TO AN UNEARTHED CIRCUIT.
ENSURE THAT CONNECTIONS ARE TURNED OFF AT THE CONSUMER UNIT OR FUSE BOARD
BEFORE INSTALLING OR CARRYING OUT ANY MAINTENANCE.
THIS PRODUCT IS FOR IN DOOR USE ONLY.
THIS PRODUCT IS IP44 RATED AND CAN BE INSTALLED IN THE ZONE 2 (AS DEFINED BY THE
IEE WIRING REGULATIONS) AND BEYOND. SEE THE DIAGRAM BELOW.
REPLACE FAILED LAMPS IMMEDIATELY. ALLOW THE GLASS, LAMP AND FITTING TO COOL
BEFORE REPLACING THE LAMP.
41800180840
zone
2
41800180850

IMPORTANT

When working at heights, please use a suitable platform to work from.
Please note: For new installations, check for any electrical cables or pipe
work (gas/water) in the vicinity of the intended mounting point before proceeding
with the installation.
Ensure that the fixing location is able to take the weight of the complete fitting.
Wear suitable eye protection when drilling. Be careful when using power tools near water.
41800180860
countertop

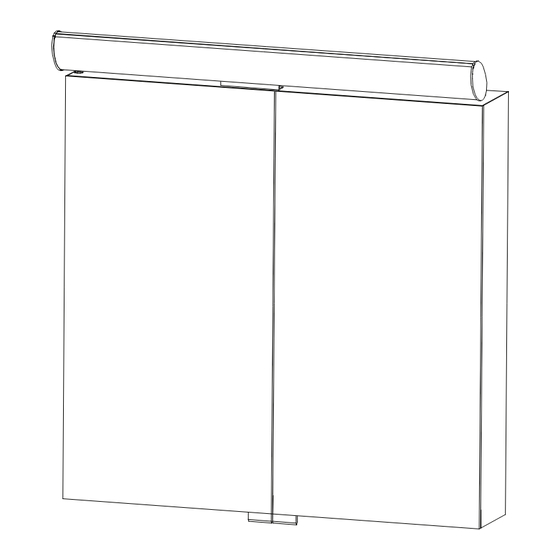

ILLUMINATED CABINET INSTALLATION INSTRUCTIONS
IEE Bathroom Zones Diagram
60CM
60CM
zone
1
zone zone
2 2
OUTSIDE ZONES
The product must be installed with a
minimum distance of 150mm between
the infrared sensor and an adjacent
countertop or obstruction to ensure correct
function of the sensor(see diagram left)
1 - 2
Do NOT strike mirror glass with hard or pointed items. It is
recommended that the product is cleaned with a soft, dry,
non abrasive cloth. Do NOT use cleaning agents or abrasive
materials on any type of finished surface. Do NOT allow
moisture to come into contact with the electrical components.

COMPLIANCE

This product complies with the following safety standards:
BS EN 60598-1: 2008+A11: 2009, EN60598-2-1: 1989

WIRING

This product is manufactured to class I category and requires
an earth connection
C L O O U
L - i L
N - N
E -

REPLACEMENT OF LED STRIPS

WARNING
When replacing an LED strip please follow the steps illustrated below.
1
225cm
4
LED Strip Type
Model
41800180840
41800180850
41800180860
R C O D N I : G
e v = B o r w n
e t u l a r = l B e u
r a h t = e r n e e Y o l l w
G &
- turn off at consumer unit or fuse board before accessing wiring.
3
2
5
LED Parameter
30 Leds / 0.02W / 6400K
42 Leds / 0.02W / 6400K
51 Leds / 0.02W / 6400K
Any Queries Call : 08000 23 23 23
6
LED Drive
6W
15W
15W
C
