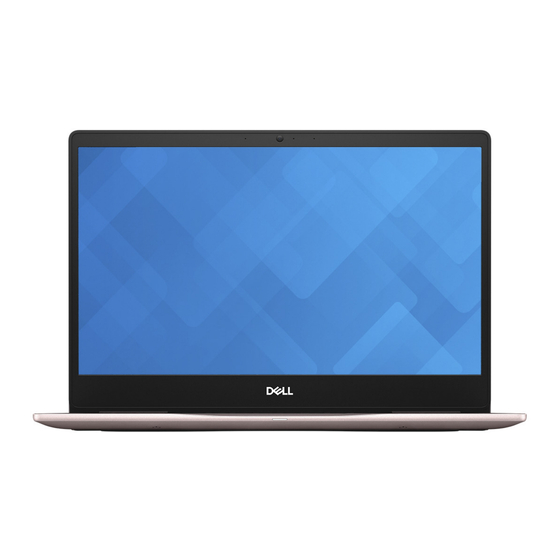

Inspiron 13 7000
Setup and Specifications
Computer Model: Inspiron 13-7370
Regulatory Model: P83G001
Regulatory Type: P83G

Advertisement

Table of Contents
loading

Related Manuals for Dell Inspiron 13 7000

Summary of Contents for Dell Inspiron 13 7000

  • Page 1 Inspiron 13 7000 Setup and Specifications Computer Model: Inspiron 13-7370 Regulatory Model: P83G001 Regulatory Type: P83G...
  • Page 2 WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents Set up your computer............ 5 Create a USB recovery drive for Windows..... 8 .......... 8 Reinstall Windows using a USB recovery drive Views................10 ......................10 Front ......................10 Left ......................11 Right ......................12 Base ................13 Display (touchscreen) ..............14 Display (non-touchscreen) .....................15 Bottom Specifications...............16...
  • Page 4 ................... 19 Media-card reader ....................19 Keyboard ....................20 Camera ....................20 Touchpad ..................20 Power adapter .....................21 Battery .....................22 Display .......................22 Video ................22 Computer environment Keyboard shortcuts............24 Getting help and contacting Dell........26 ..................26 Self-help resources ..................27 Contacting Dell...

  • Page 5: Set Up Your Computer

    Set up your computer Connect the power adapter and press the power button.
  • Page 6 Finish operating system setup. For Windows: a) Connect to a network. NOTE: If you are connecting to a secured wireless network, enter the password for the wireless network access when prompted. b) Sign in to your Microsoft account or create a new account. For Ubuntu: Follow the instructions on the screen to finish setup.
  • Page 7 Locate Dell apps in Windows. Register your computer Dell Help & Support SupportAssist—Check and update your computer Create recovery drive for Windows. It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows.

  • Page 8: Create A Usb Recovery Drive For Windows

    Create a USB recovery drive for Windows Dell recommends that you create a recovery drive to troubleshoot and fix problems that may occur with Windows. An empty USB flash drive with a minimum capacity of 16 GB is required to create the recovery drive.
  • Page 9 Press F12 after the Dell logo is displayed on the screen to access the boot menu. A Preparing one-time boot menu message appears. After the boot menu loads, select the USB recovery device under UEFI BOOT. The system reboots and a screen to Choose the keyboard layout is displayed.

  • Page 10: Views

    Views Front Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle this light between power and battery- status light and hard-drive activity light. Hard-drive activity light Turns on when the computer reads from or writes to the hard drive. Power and battery-status light Indicates the power and battery-charge status.

  • Page 11: Right

    Connect a power adapter to provide power to your computer and charge the battery. USB 3.1 Gen 1 (Type-C) port/DisplayPort Connect peripherals such as external storage devices, printers, and external displays. Provides data transfer speeds up to 5 Gbps. NOTE: An adapter (sold separately) is required to connect a DisplayPort device.

  • Page 12: Base

    Connect peripherals such as storage devices and printers. Provides data transfer speeds up to 5 Gbps. Security-cable slot (for Noble locks) Connect a security cable to prevent unauthorized movement of your computer. Base Touchpad Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.

  • Page 13: Display (Touchscreen)

    NOTE: You must configure the fingerprint reader to register your fingerprint and enable access. NOTE: You can customize the power-button behavior in Power Me and My Dell at Options. For more information, see www.dell.com/ support/manuals. Display (touchscreen) Left microphone Provides digital sound input for audio recording and voice calls.

  • Page 14: Display (Non-Touchscreen)

    Camera-status light Turns on when the camera is in use. Right microphone Provides digital sound input for audio recording and voice calls. Display (non-touchscreen) Left microphone Provides digital sound input for audio recording and voice calls. Camera Enables you to video chat, capture photos, and record videos. Camera-status light Turns on when the camera is in use.

  • Page 15: Bottom

    Bottom Left speaker Provides audio output. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. Right speaker Provides audio output.

  • Page 16: Specifications

    Specifications System information Table 1. System information Processor Generation Intel Core i5/i7 Chipset Integrated in the processor Computer model Table 2. Computer model Inspiron 13-7370 Computer Model Dimensions and weight Table 3. Dimensions and weight Touchscreen Non-touchscreen Height 15.51 mm (0.61 in) 15.19 mm (0.60 in) Width 309.66 mm (12.19 in)

  • Page 17: Memory

    • Windows 10 Professional 64-bit Memory Table 5. Memory specifications Slots Onboard memory Type Dual-channel DDR4 Speed 2133 MHz and 2400 MHz 4 GB, 8 GB, and 16 GB Configurations supported Ports and connectors Table 6. Ports and connectors External: •...

  • Page 18: Communications

    Communications Table 8. Supported Communications Wireless • WiFi 802.11a/b/g/n/ac • Bluetooth 4.2 NOTE: Windows 10 currently supports up to Bluetooth 4.1. Wireless Table 9. Wireless Transfer rate Up to 867 Mbps Frequency Bands 2.4 GHz/5 GHz Encryption • 64-bit/128-bit WEP •...

  • Page 19: Storage

    Storage Table 11. Storage specifications Interface • SATA 6 Gbps • PCIe Gen 3 x4 up to 32 Gbps Solid-state drive (SSD) One M.2 drive Capacity supported Up to 512 GB Media-card reader Table 12. Media-card reader specifications Type One SD-card slot Card supported SD card Keyboard...

  • Page 20: Camera

    Camera Table 14. Camera specifications Resolution Camera • Still image: 0.92 megapixel • Video: 1280 x 720 (HD) at 30 fps Infrared camera (optional) 640 x 480 (VGA) Diagonal viewing angle Camera 88 degrees Infrared camera (optional) 82.9 degrees Touchpad Table 15.

  • Page 21: Battery

    0°C to 35°C (32°F to 95°F) Temperature range: Storage –40°C to 65°C (–40°F to 149°F) Coin-cell battery It is recommended that you use a Dell coin-cell battery for your computer. Dell does not provide warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.

  • Page 22: Display

    Display Table 18. Display specifications Type • 13.3-inch FHD touchscreen • 13.3-inch FHD non-touchscreen Resolution (maximum) 1920 x 1080 Viewing angle (Left/Right/Down/Up) 80/80/80/80 degrees Pixel pitch 0.153 mm Refresh rate 60 HZ 0 degrees (closed) to 180 degrees Operating angle Controls Brightness can be controlled using shortcut keys...
  • Page 23 Table 20. Computer environment Operating Storage Temperature range 0°C to 35°C (32°F to –40°C to 65°C (–40°F to 95°F) 149°F) Relative humidity 10% to 90% (non- 0% to 95% (non- (maximum) condensing) condensing) Vibration (maximum) 0.66 GRMS 1.30 GRMS † ‡...

  • Page 24: Keyboard Shortcuts

    Keyboard shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. Table 21. List of keyboard shortcuts Keys Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display...
  • Page 25 Keys Description Pause/Break Sleep Toggle scroll lock Toggle between power and battery- status light/hard-drive activity light NOTE: Hard-drive activity light is supported only on computers shipped with M.2 SATA Solid State Drive. System request Open application menu Toggle Fn-key lock Page up Page down Home...

  • Page 26: Getting Help And Contacting Dell

    Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 22. Self-help resources Information about Dell products and www.dell.com services Dell Help & Support app Get started app...

  • Page 27: Contacting Dell

    Factory and system restore • BIOS information Contacting Dell To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell. NOTE: Availability varies by country and product, and some services may not be available in your country. NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
