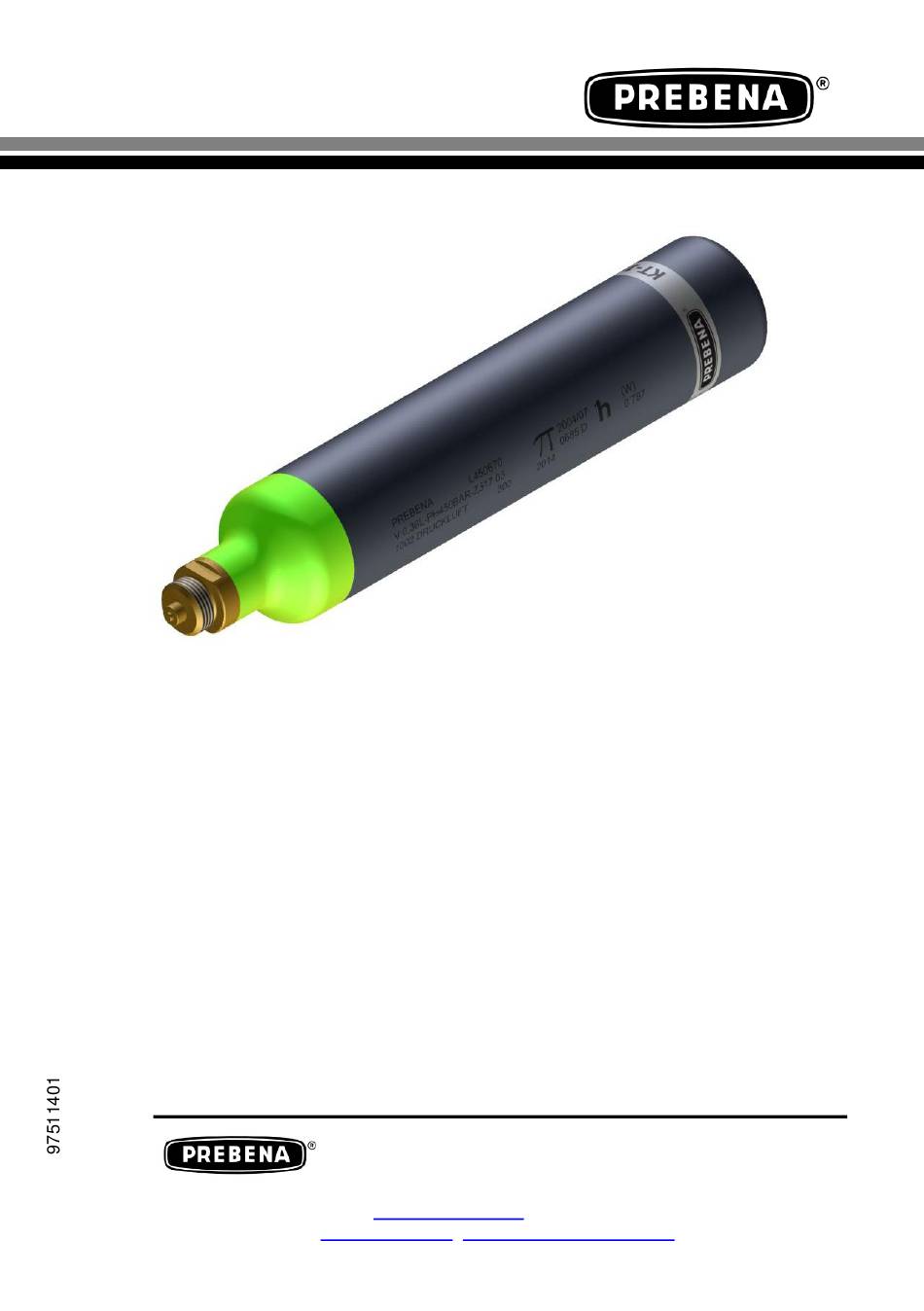

- Page 1 Original cartridge operating instructions PREBENA KT-1000 PREBENA W ilfried Bornemann GmbH & Co. KG Seestraße 20 – 26, 63679 Schotten, Germany Telephone: +49 (0) 60 44/96 01 – 0, Fax: +49 (0) 60 44/96 01 – 820 Email: info@prebena.com www.prebena.de,...
- Page 2 intended, safe and cost-effective use of the KT-1000 cartridge, referred to as the "cartridge" below. We assume that each user of the cartridge knows how to deal with compressed air containers and compressed air-driven devices. People who do not know how to do this must be instructed by an experienced user in the use of the cartridge.
-
Page 3: Table Of Contents
To avoid explosion hazards ............6 To avoid damage to the cartridge ..........6 Description ..................7 Scope of supply ................. 7 Information on the KT-1000 cartridge ......... 7 To use the cartridge ..............9 Check the condition..............9 To connect the cartridge............. 9 To disconnect the cartridge from the device ......10... -
Page 4: Layout Characteristics
Manufacturer's address Layout characteristics General layout characteristics Various elements in the operating instructions are marked with specific layout characteristics. This allows you to easily distinguish whether the elements are normal text, lists or handling steps that you are reading about. ... -
Page 5: Basic Safety Instructions
Intended use The cartridges are to be used exclusively to supply compressed air to those PREBENA devices in whose operating instructions this type of cartridge is expressly specified. Use with other devices is permitted only after consultation with the manufacturer. Intended use... -
Page 6: To Avoid Explosion Hazards
Manufacturer's address To avoid explosion hazards Only fill the cartridge using PREBENA compressors of the PKT-FILLMASTER series. Only fill the cartridge with compressed air. Only fill the cartridge up to the maximum filling pressure of 300 bar. -
Page 7: Description
Scope of supply The cartridge is delivered in a Systainer plastic case for five cartridges (KT-1000-SY), or with the device. Included in the scope of supply are protective caps for the valves of the cartridges, the operating instructions, and the Declaration of Conformity. - Page 8 Manufacturer's address Test pressure 10 Filling pressure 11 EN standard 12 Recurring test date 13 Registration office 14 Logo 15 Empty weight 16 Hazardous goods label 17 Air cartridge label Do not remove or cover the information on the cartridge.
-
Page 9: To Use The Cartridge
The useful service life of the cartridge must not be exceeded. Do not connect a damaged cartridge to a device. Have a damaged cartridge repaired by PREBENA qualified personnel before connecting it. To connect the cartridge ... -
Page 10: To Disconnect The Cartridge From The Device
Manufacturer's address WARNING There is a risk of an explosion if the maximum operating pressure is exceeded (see operating instructions for the tacker). If this case, immediately disconnect the cartridge from the device. Unscrew the cap from the valve. ... -
Page 11: Transporting And Storing The Cartridge
Warranty Transporting and storing the cartridge CAUTION Damage possible by chemicals or impacts. Transport and store the cartridge so that it is protected against impacts. Transport and store the cartridge so that it is protected from chemicals. Leave some pressure in the cartridge (2-3 bar). ... -
Page 12: Filling The Cartridge
Manufacturer's address To remove light dirt from the cartridge housing, proceed as follows: Wipe off the cartridge with a cloth that is slightly moistened with mild soap suds. Then wipe off the cartridge with cloth that is slightly moistened with tap water. -
Page 13: Having The Cartridge Tested
Only use properly tested cartridges. The cartridge must be inspected at the intervals specified in the national regulations and every ten years by Prebena. This inspection must be documented on the label of the cartridge. Check the date of the last periodic test on the rating plate. -
Page 14: Repairing Faults
Connect a new cartridge connections for the (see Page 9). cartridge are defective. Send the cartridge via the dealer to PREBENA (see Page 16). If the problem persists, send the tacker via the dealer to PREBENA (see Page 16). -
Page 15: Cartridge Disposal
Technical specifications KT-1000 Length: 277.2 mm Diameter: 50.8 mm Packaging dimensions (L × W × H): KT-1000-SY: 395 x 295 x 112 mm Weight, empty cartridge: 0.91 kg Weight, filled cartridge: 0.94 kg KT-3500-S weight, with transport case: 6.26 kg Contents: 0.36 l compressed air... -
Page 16: Manufacturer's Address
Manufacturer's address Manufacturer's address PREBENA Wilfried Bornemann GmbH & Co. KG Befestigungstechnik Seestraße 20–26 D-63679 Schotten Telephone: +49 (0) 60 44/96 01 - 0 Fax: +49 (0) 60 44/96 01 - 820 Email: info@prebena.de Homepage: www.prebena.de www.kartuschen-tausch.de... -
Page 17: Warranty
The warranty does not cover wearing parts such as O-rings, etc. It shall be at the discretion of PREBENA to fulfil the warranty by replacement of the faulty part or by the supply of a new product. - Page 18 PREBENA Wilfried Bornemann GmbH & Co. KG Seestraße 20 – 26, 63679 Schotten, Germany Telephone: +49 (0) 60 44/96 01 – 0, Fax: +49 (0) 60 44/96 01 – 820 Email: info@prebena.com www.prebena.de, www.kartuschen-tausch.de...
