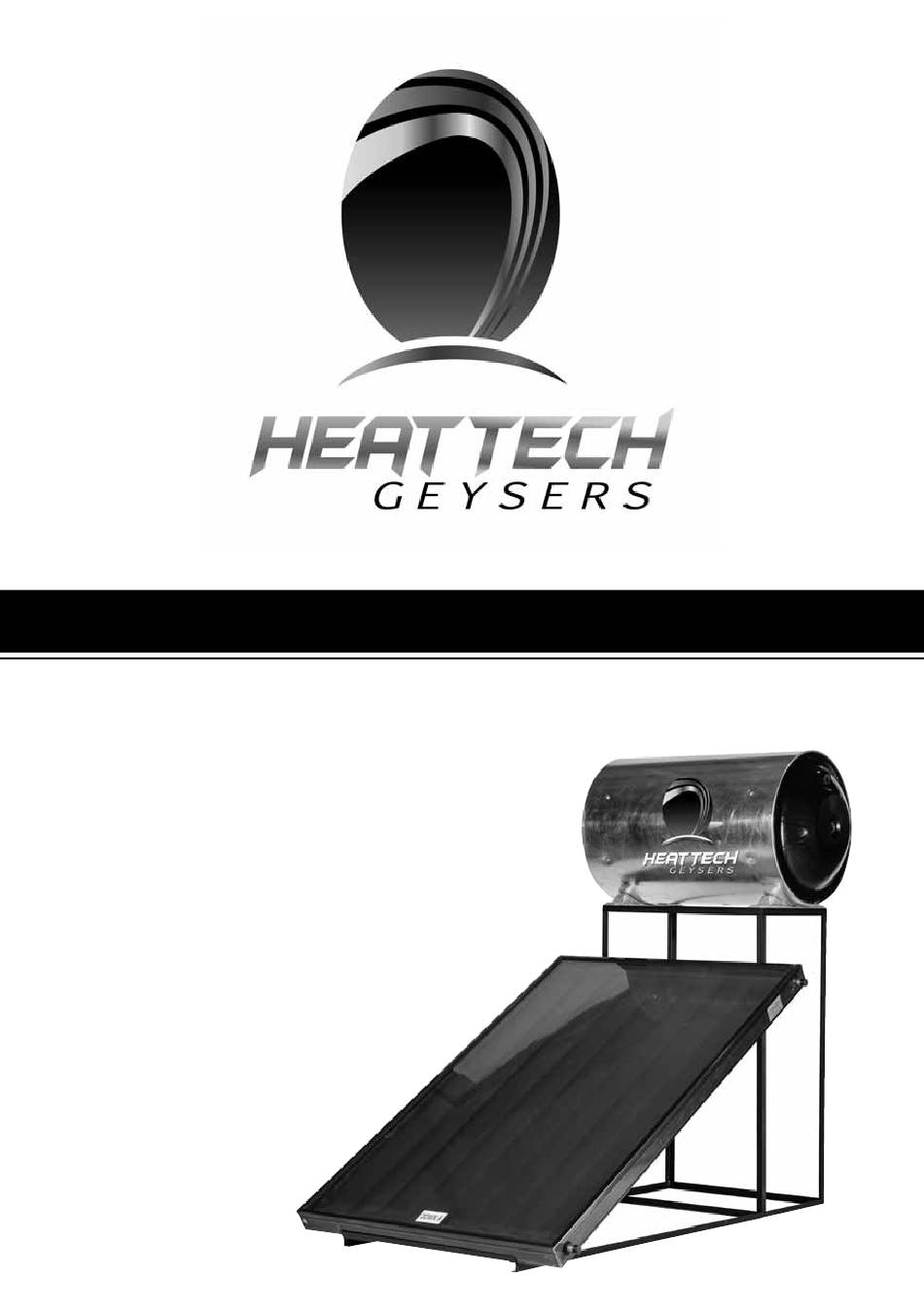

HEAT TECH SOLARLINE 200
Indirect Close Coupled Thermosyphon System - System Model SSL 200
Thank you for purchasing the Solarline 200 lt
indirect solar system which includes
the following:
1. 200 lt indirect solar geyser model SL 200 +
valve pack
2. 2 x 1,5 m
solar collector model STC - 1.5
2
+ removable mounting bracket
3. Glycol solution - 2 x 5 lt pre-mixed
Conserving Resources. Engineering the Future.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for HEAT-TECH Solarline SSL 200
- Page 1 Conserving Resources. Engineering the Future. HEAT TECH SOLARLINE 200 Indirect Close Coupled Thermosyphon System - System Model SSL 200 Thank you for purchasing the Solarline 200 lt indirect solar system which includes the following: 1. 200 lt indirect solar geyser model SL 200 + valve pack 2.
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS Closed-loop, thermosyphon system: Only use a qualified, accredited plumber for installation. SYSTEM PROPERTIES System Properties Solar water heater Manufacturer Heat Tech Geysers (Pty) Ltd Heat exchanger Double jacket Thermal transfer process Thermosyphonic action Working pressure 400 kPa Moisture resistance... - Page 3 will invalidate the warranty. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities. Or lack of experience and knowledge, unless they have been given supervision or instruction concerning installation and/or use of the appliance by a person responsible for their safety. The safety valve (TP valve) must be mounted on the geyser before use.
- Page 4 INSTALLATION INSTRUCTIONS Mount the system’s stand in a shade-free area, while making sure the collector’s location is facing north, with up to a 20˚ deviation east to west. Place the geyser in its cradle on the stand. Place the collectors on the stand facing north at the stand’s angle - 15-35˚ to the horizontal plane.
-
Page 5: Maintenance
Best performance achieved with well insulated pipes. The hot line from the collectors must be insulated to reduce heat losses. Water may drip from the discharge pipe of the expansion control valve, and this pipe must be left open to the atmosphere. The discharge pipes connected to the expansion control valve and the safety valve (TP valve) are to be of metal and installed in a continuously downward direction with the outlets being left open in a frost-free atmosphere. -
Page 6: Troubleshooting
Incorrect piping installation Install piping correctly in closed-loop Replace damaged Bent or dented pipes section of pipe If the problem cannot be solved, PLEASE CALL THE HEAT TECH SERVICE CENTRE FOR ASSISTANCE (see back of booklet) -
Page 7: Installation
INSTALLATION VACUUM BREAKER EXPANSION RELIEF VALVE 100 kPa VACUUM BREAKER SOLAR WATER HEATER INDIRECT SAFETY VALVE THERMAL PIPE LAGGING THERMAL PIPE LAGGING SOLAR COLLECTOR PANEL HEAT TRANSFER FLUID FEED TO SOLAR COLLECTOR MAINS WATER DRAIN COCK STOP COCK PRESSURE CONTROL VALVE 400 kPa BALANCED COLD TEMPERING VALVE... -
Page 8: Contact Info
Conserving Resources. Engineering the Future. GUARANTEE - Cylinder - 5 years - Element & thermostat - 1 year - T & P valve - 2 years - Solar collector panel - 5 years The warranty only applies to defects, which have arisen solely due to faulty workmanship and materials during the manufacturing process.
