Summary of Contents for PNI HUNTING 2C

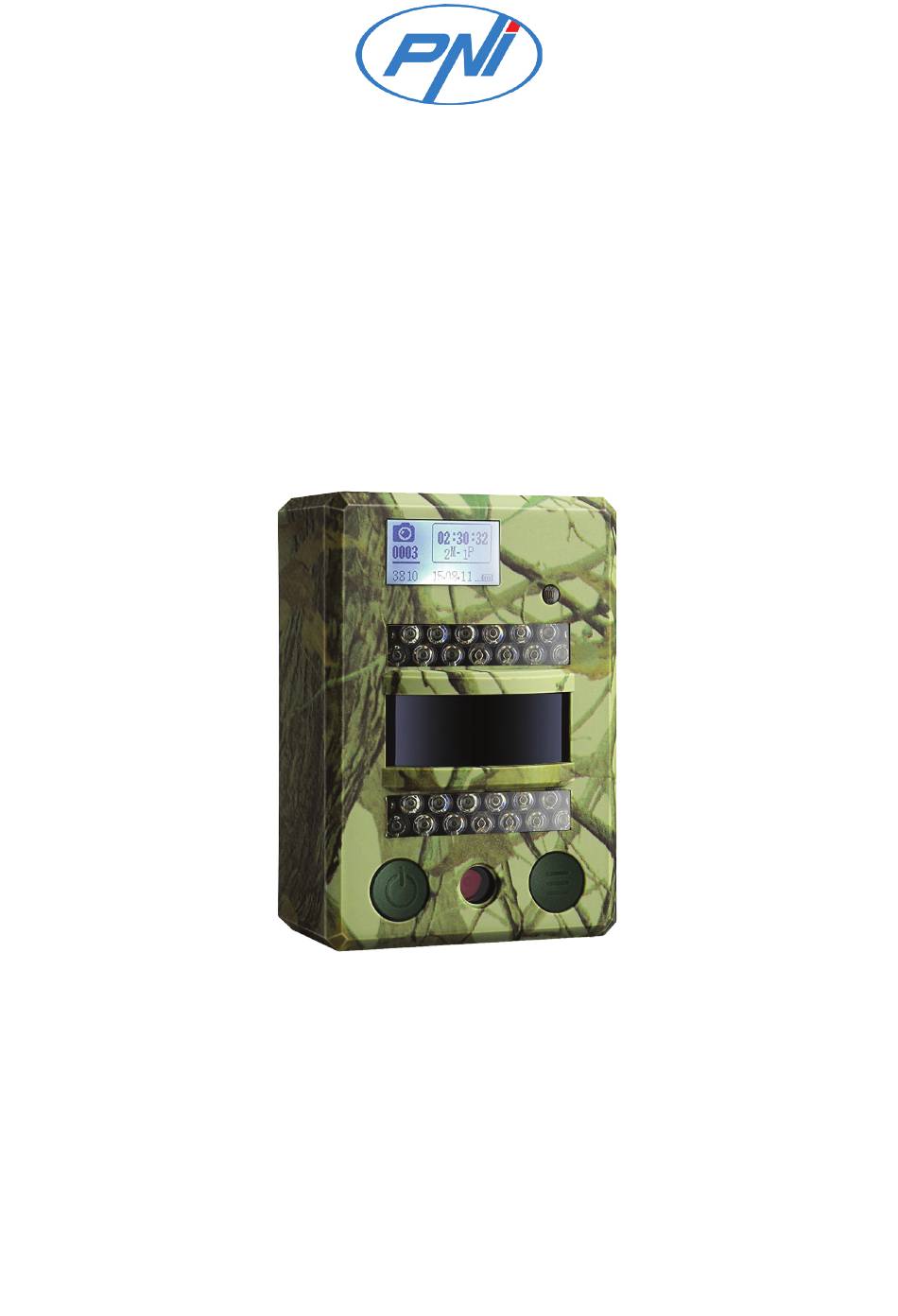

- Page 1 PNI HUNTING 2C Hunting camera...
- Page 2 KEYS AND FUNCTION DESCRIPTION LCD screen Light sensor Indicator light 13 IR lED PIR sensor 13 IR LED Power Menu/OK Navigation Lens Micro USB port DC in Micro SD card slot Battery slot User manual...
-
Page 3: Menu Description
CAMERA SCREEN DISPLAY (TEST MODE MAIN INTERFACE) Note: camera support camera, video, camera+video three different working modes; screen display will be different based on different working mode. Hour/Min./Sec. Photo Mode Photo Resolution Multi Shot Number Recorded le number Estimated available Battery left capacity Year/Month/Day le number *... -
Page 4: Basic Operations
BASIC OPERATIONS Open the cover on the back of the camera and insert the micro SD card and the batteries Power on the camera Press and hold Power/Navigation button for 3 seconds; camera will enter PIR Auto working mode after indicator flashes 5 times Press once the Menu/OK button to wake up camera LCD screen to enter Test Mode Manual Photographing/ Video Recording... -
Page 5: Advanced Settings
In Test Mode, press the Menu/ OK button to enter the settings menu; now the button it’s Configuration only for navigation; the button it’s only for saving the made settings Press and hold the button for Functions setup Return to first 3 seconds to return to the navigation menu... - Page 6 Set up Press to enter configuration page, press and choose ON; press again to return to configuration page. Press to choose numbers or letters, press to confirm and go to the next setting. Press to confirm and save. ID Camera How does this work? The 4 selected digits/letters will be displayed on the photo stamp.
- Page 7 Press to enter configuration page, press to delete one or all saved files, or format the SD card Press choose Yes/No, press again to confirm the deletion or formatting Notes: Delete • The menu will remain in the Yes/No interface when you delete each file;...
- Page 8 Press to enter configuration page, press to choose the Video resolution desired resolution, press to save the settings. (720P/VGA/CIF: 1280x720/640x480/320x240) Press to enter configuration page, press to choose the Video length desired length for video recordings; press to save the settings. (Support 5~60 seconds) Press to enter configuration page, press...
- Page 9 Set up Press to enter configuration page, press and choose ON; press again to set the timer Press to choose the desired number, press to save and Timer go to the next number Press again to exit. How does it work? The camera will only work within the set time frame Set up Press...
- Page 10 Set up Press to enter the configuration page, press to choose ON/OFF; press again to confirm the setting Camera sound How does it work? Select “OFF” to deactivate the camera speaker Set up Press to enter the configuration page, press to choose between High/Middle/Low;...
-
Page 11: Software Update
SOFTWARE UPDATE Copy the 3 files for software update on the micro SD card; Note: We recommend using a 1 or 2GB card Insert the MicroSD Card into the camera Insert the battery into the camera or plug it into a power source via the USB cable Press and hold the Power/Navigation button , the camera will beep Release the button... - Page 12 Press again the camera will become a PC camera; press again to exit. Remove the power cord to turn off the camera and restart it. MICRO SD CARD SELECTION AND BATTERY LIFE TEST To use the camera, you need a Micro SD card. When the camera is turned on “ON” and no card has been inserted, “No SD Card”...
-
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS Recording Video format .avi 720P (1280*720) Video resolution D1 (640*480) CIF (320*240) Frame rate 15/30 FPS; programabil Video length 5-60sec. programabil Image format JPEG 2MP (1920x1080) Image resolution 5MP (2560x1920) 8MP(3264x2448) Countinuous shooting 1~7 photos/trigger(programmable) Battery left capacity moon phase Temperature Photo stamp... - Page 14 Interface USB; slot Micro SD card Memory type Micro SD Card, up to 32G Screen Ecran B/W 1.0 inch B/W Language English Sensor type PIR (Passive Infrared) Sensory range 12~15m; 50 feet Sensor triger speed 0.8-1 sec 150mA (+1380mA: 940nm IR LEDs on) Power consumption (+1080mA: 850nm IR LEDs on) Battery alert downloaded...
- Page 15 Declaración UE de conformidad simplificada SC ONLINESHOP SRL declara que el Cámara de caza PNI Hunting 2C cumple con la Directiva EMC 2014/30/ EU y la Directiva LVD 2014/35/EU. El texto completo de la declaración de conformidad de la UE está disponible en la siguiente dirección de Internet:...
