Summary of Contents for jcm-tech CONT-R15

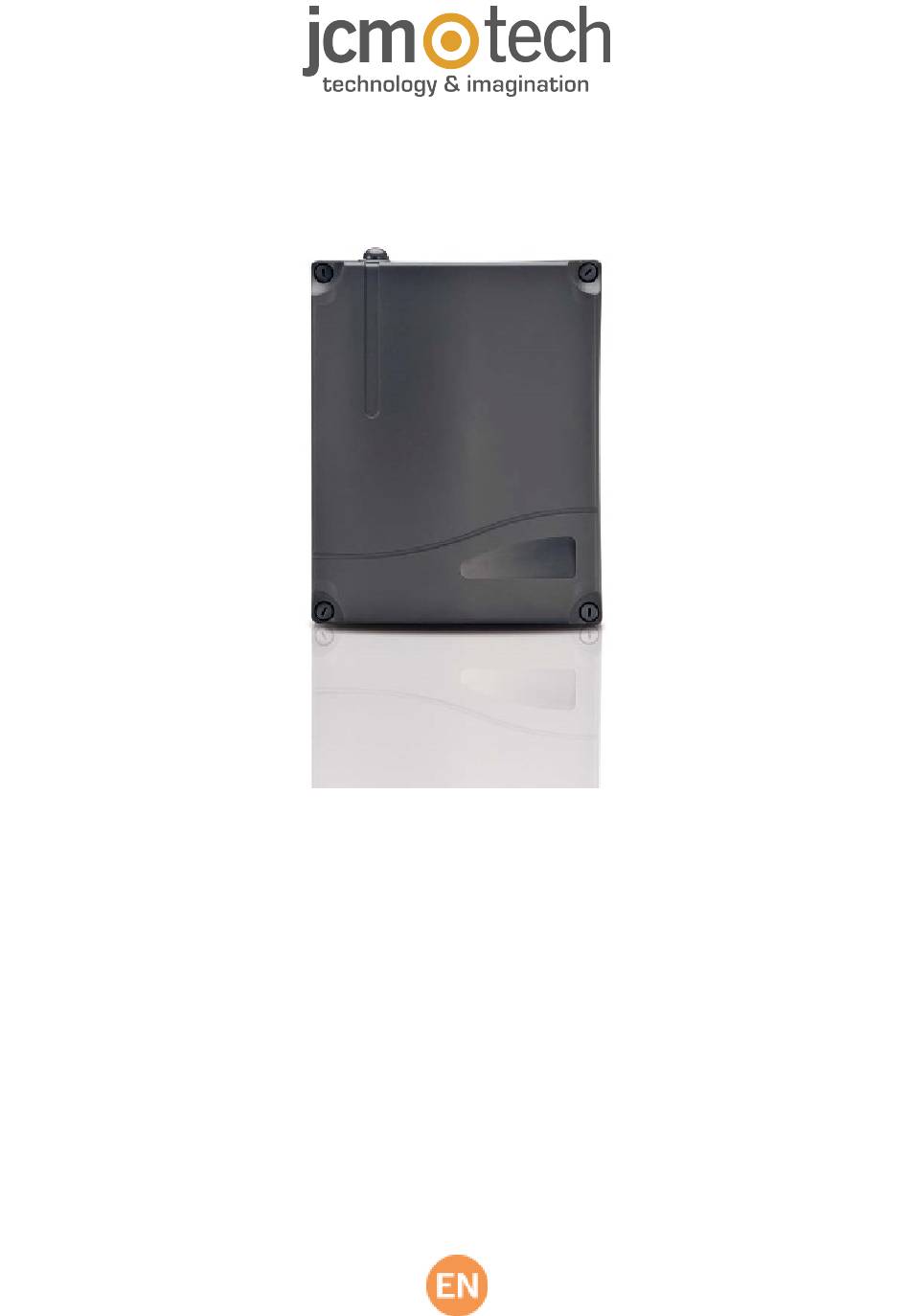

- Page 1 CONT-R15 User Manual...
-
Page 2: Table Of Contents
Table of contents General description Connection Technical characteristics Installation Fitting the casing (only box version) Important considerations for start-up Operating Reference search function Door operation control function with external clock Back Jump Function Option switch Input switch Light indicators Option switch bridging Current limit level switch jumpers Buttons Times... -
Page 3: General Description
General description Control panel for 24 Vdc motors on sectional, swing, folding and sliding doors for residential and communal use. Basic features: Self-programming, stoppage by consumption, receiver incorporated pluggable, resistive safety edge input, encoder input (sensor hall), slow-speed start of operations, slow-speed end of operations, connection to portable programmer. Connection Primary 230V ac Transformer + 24V dc motor... -
Page 4: Technical Characteristics
Technical characteristics Parameter Value Panel supply 0-12-24Vac Transformer 0-12-24Vac / 100VA or 150VA 868,35MHz incorporated 15 codes / 433.92 / 868.35 MHz pluggable Receiver (depending on version) Pluggable receiver card (433,92 (bi-channel) / 868,35 MHz) and traffic Optional cards light card (TL-CARD) Security device output 24V ac / 400mA Operating temperature... -
Page 5: Operating
Operating Contact normally open to open and close. First time the button is pressed, it opens; the second time (if it has not reached the end of the run), it stops and Start the third time it closes. If it is pressed while the door is closing, it will stop and invert the operation Contact normally closed. -
Page 6: Option Switch
Option switch Option No. Upper position – ON Lower position - OFF Manual programming (default 1 (AUTO PROG) Self-programming option) Does not close automatically 2 (AUTO CLOSE.) Automatic closure (default option) Does not allow for radio reverse on Allows for radio reverse on opening 3 (NON STOP ON OPENING) opening (default option) -
Page 7: Option Switch Bridging
Option switch bridging Integrated radio disconnection (where a pluggable receiver card is used, the cut bridge provides greater range) Pedestrian channel disconnection of the pluggable receiver card (where a single-channel RACK+DCS is used, this bridge must be cut) Select if the programming is carried out by pulses or by time. With the jumper at ON the panel will be programmed by pulses and with the jumper removed it will be programmed by time. -
Page 8: Programming
Programming •If stoppage is required during programming, the control panel exists programming automatically for safety reasons. •Before starting any type of operation programming, the corresponding options must be correctly selected (option switch, input switch and option switch bridging) and the safety elements must be connected, where applicable. •Operations can be programmed indifferently using the TEST / START button or through a previously programmed transmitter. -
Page 9: Parameter Configuration From Programmer
Press the programming button for more than 10 seconds until the safety led (or error led, depending on the model) flashes. Release the programming button. The safety (or error) led will flash between 1 and 10 times. This is the sensitivity level selected (crush prevention). -
Page 10: Receiver Operations
Receiver operations Upon receiving a code, the equipment checks whether it is in its memory, activating the corresponding relay. Manual programming Normal programming Press the RADIO PROG programming button for 1 sec. The programming RADIO PROG pilot light will come on and the equip- ment will emit an acoustic signal. -
Page 11: Code Cancellation (Total Reset)
Code cancellation (Total reset) In programming mode, the programming button is held down and the “MR” reset jumper is bridged for 3 secs. The equipment will issue 10 short acoustic warning signals followed by others at a faster pace to indicate that the operation has been suc- cessful. -
Page 12: Troubleshooting
Regulatory Data EU Declaration of conformity JCM TECHNOLOGIES, S.A. hereby declares that the product CONT-R15 complies with the relevant fundamental require- ments of the RED Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen;...
