Summary of Contents for Shinga Lacros SCAMPER S200

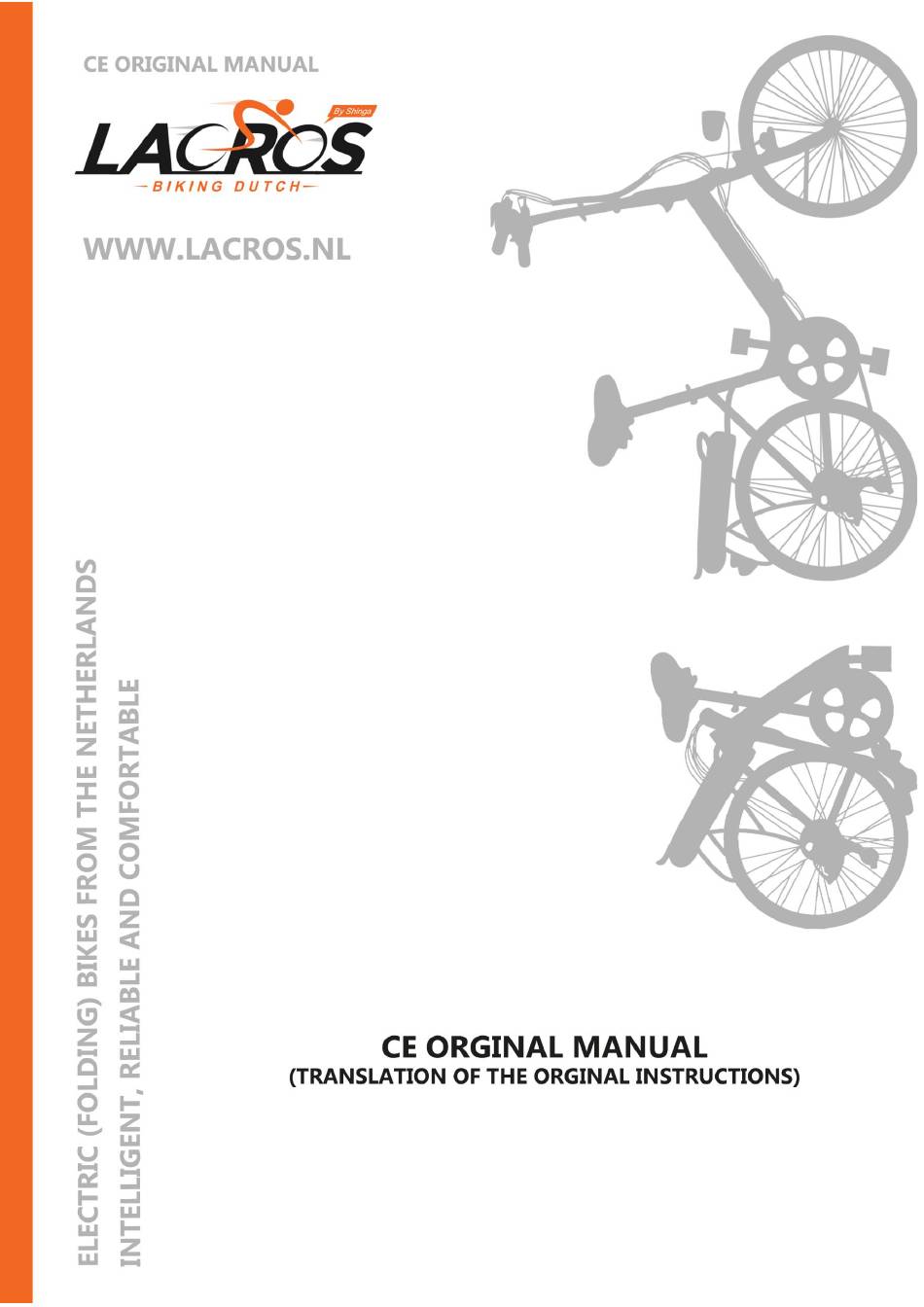

- Page 1 CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN LACROS SCAMPER S200/S400 ELECTRIC FOLDING BIKE...
-
Page 2: For Your Safety
5. Never expose the battery and the charger directly in the sun or heat surfaces. The battery is protected against heat, but heating is better avoided. 6. Never use a charger other than the one supplied by Shinga B.V. It is very important for your safety to always use the original charger. -
Page 3: Review Documentation Emc-Directive: 2014/30/Eu Machine Directive: 2006/42/Eg
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG Your product is an electric folding bike. The bicycle can be folded at 2 locations, on the handlebar stem and halfway at the frame. The bike is equipped with a pedal support system which is powered by an external battery. -
Page 4: Table Of Contents
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN Table of contents For your safety ................................ 2 Review documentation EMC-directive: 2014/30/EU Machine directive: 2006/42/EG ..........3 1. Unfolding the bicycle .............................. 5 2. Folding the bicycle ..............................6 3. How to operate the bicycle ............................. 7 Turn on the display .............................. -
Page 5: Unfolding The Bicycle
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN 1. Unfolding the bicycle Magnetic lock Push the wheels apart to remove them from their magnetic lock. A = metal locking plate B = magnet C = direction in which you can lock... -
Page 6: Folding The Bicycle
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN 2. Folding the bicycle Folding the pedals Fold down the bicycle's stand and fold the pedals in by pushing the entire pedal towards the bike and then folding it up or down. -
Page 7: How To Operate The Bicycle
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN 3. How to operate the bicycle Switch on the battery and read the battery status The battery (model 2019) is located on the luggage rack with the Scamper. Switch on the electrical system with the button on the left side of the battery (A). -
Page 8: Switch Between The 9 Levels Of Motor Support
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN Switch between the 9 levels of motor support The electrical motor support has 9 levels. The active setting is displayed on the top left of the display. You can increase or decrease the support by using the (+) and (-) buttons. -
Page 9: How The Electrical Support Work
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN How the electrical support work The bicycle use PAS (pedal support) through a magnet-rotation sensor. This means that the electrical support starts the moment the pedals go around. In addition, there is a thumb lever on the left side of the handlebars to quickly and easily activate the maximum support (which is independent of the motor support 1 to 9). -
Page 10: Warning
• Keep the battery out of the reach of children • Never open the battery without permission from Shinga B.V. The battery is provided with a seal. Breaking the seal will void the warranty, unless Shinga BV gives permission. •... -
Page 11: Removing The Battery
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN Removing the Battery The battery can be removed from the battery box by first turning the key (1) 180 degrees to the left, and then carefully pull the battery back. Ensure that the battery is always locked when you place it back. -
Page 12: Safety Rules
• If the front fork, steering column or handlebars are bent after an accident, they must never be bent back to their original position to prevent breakage. Contact your Shinga dealer or Shinga B.V directly. to have the damaged parts replaced. -
Page 13: Warranty Provisions And Legal Requirements
Ministry of Housing, Spatial Planning and the Environment, we recommend that you always return it to your dealer or Shinga B.V in the event of a battery defect. This is required to take the battery and takes care of the further processing of the battery. -
Page 14: Technical Specifications
CE ORIGINAL MANUAL LACROS SCAMPER S200/S400 VERSION CE 1.2 EN 8. Technical specifications • Dimensions folded out (LxWxH): 160x62x113cm • Dimensions folded (LxWxH): 90x40x72cm • Frame: Aluminum • Motor type: rearwheel motor • Motor voltage: 36V • Motor power: 250W •... -
Page 15: Ec Declaration
LACROS SCAMPER S200/S400 VERSION CE 1.2 EN 9. EC declaration Supplier: Technical Files: Manufacturer: SHINGA B.V. VAN DEN OETELAAR (SHINGA B.V.) SHINGA B.V. MOLENDIJK ZUID 23B MOLENDIJK ZUID 23B MOLENDIJK ZUID 23B 5482 WZ SCHIJNDEL 5482 WZ SCHIJNDEL 5482 WZ SCHIJNDEL...
