SiKom SI-1 Installation And User Manual

R

Technical specifications

Type/Model:
Operating voltage:
Max load:
Room/Floor sensor:
Temperature sensing:
Dim (LxHxD):
Weight:
Compatible with:
Radio frequency:
Complies with the European R&TTE directive.
Designed for indoor use only.

Package contents

•
Wireless thermostat.
•
Front cover.
•
Temperature sensor with 4m cable. Just called "sensor" from here on.

Mounting

Connect the sensor to terminals R and C. When installing it inside a room, just lay it out at an appropriate
location. When installing it under the floor, put it right in the middle of two heating cable segments. Do not
install the sensor close to 230V leads, which may generate interferences in the temperature readings. The wire
from the thermostat to the sensor should be as short as possible. When installed under the floor, the sensor must
be laid inside a tube closed at the sensor extremity.
N
230VAC
L
Room/Floor
sensor
64-311-08 Monteringsanvisning Termostat SI-1 Rev 2.0 ENG.doc
Please leave this guide with the end-user.
Wireless thermostat SI-1
Installation and User Guide
SI-1 / 300-8060V11
230VAC
10A Resistive
10K NTC at 25°C
-28°C to +49°C ±2°C
84 x 84 x 45 mm
240g
GSM Alarm Controller III and Comfort series.
433.9 MHz
R C F
L N
Thermostat SI-1
Rear view
Load
N O

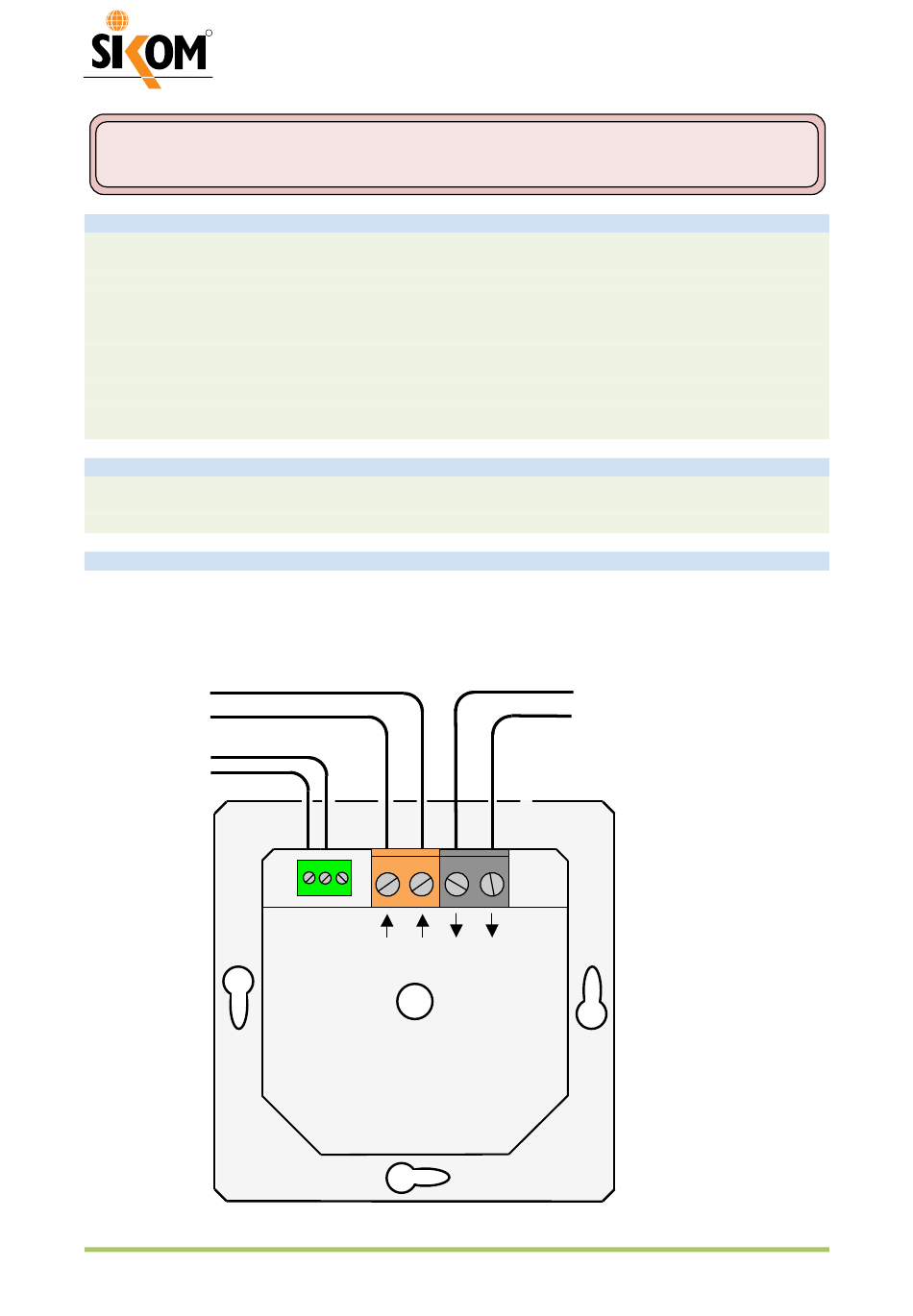

The relay inside the
thermostat is a single-
pole breaker. Lead N
goes straight through.
Lead L connects to O
when the relay is active.
