INSTALLATION INSTRUCTIONS
Model:
CB6504, CB6505, CB6506, CB6507, CB6508, CB6509
Fixture Family:
ASTA
Document Description: Installation Instructions for ASTA
ASTA Series Luminaires
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
•
Read all instructions carefully before installing and save for future use.
•
Make sure all connections are in accordance with the National Electrical Code and local regulations.
•
To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture
•
Service should be performed by qualified personnel.
•
These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting.

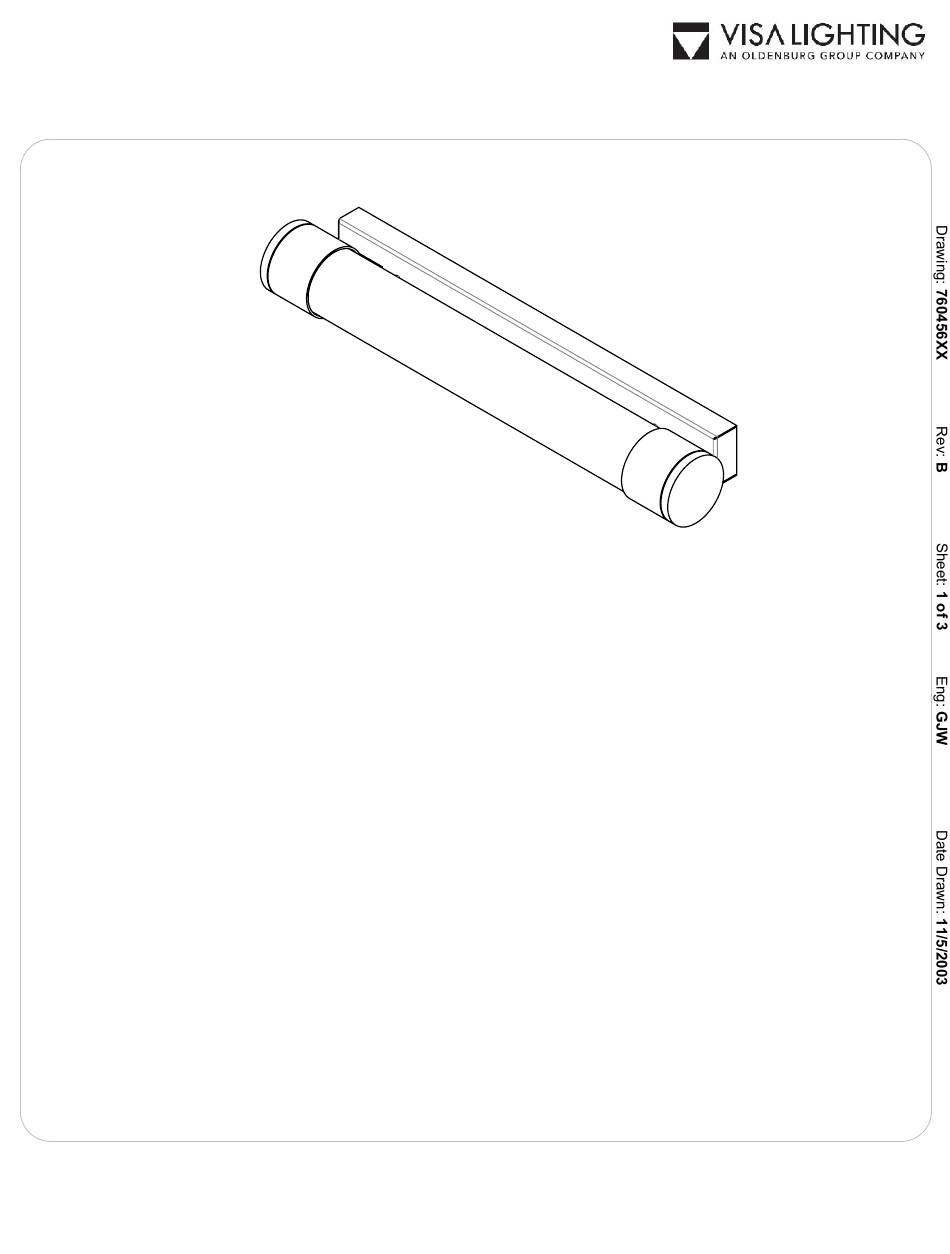

ASTA WALL MOUNT
FLR
CB6504
CB6506
CB6508
PAGE 2: FLR
PAGE 3: LED
1717 West Civic Drive Milwaukee, WI 53209
Design Modification Rights Reserved
LED
CB6505
CB6507
CB6509
414-354-6600
© Visa Lighting
