Visa Lighting MIDBAY Series Installation Instructions

INSTALLATION INSTRUCTIONS
Model: MIDBAY
Fixture Family: MIDBAY
Document Description: Installation Instructions for
MIDBAY Series Luminaires
MOUNTING
SCREWS
1. ANGLE FIXTURE JBOX THROUGH NOTCHED
AREA IN HOUSING AND SLIDE INTO POSITION
SO THAT JBOX MOUNTING FLANGE IS UNDER
HOUSING EDGE AND SCREW HOLES ARE ALIGNED.
2. ATTACH WITH (4) SCREWS PROVIDED THROUGH
HOUSING INTO JBOX FROM TOP AS SHOWN.
3. REMOVE ACCESS PLATE FOR MOUNTING
AND WIRING BY LOOSENING SCREWS (2),
THEN TURN AND SLIDE PLATE TO THE SIDE.
4. MOUNT AND WIRE PER PAGE 2 AND 3.
5. LENS IS ATTACHED BY LIFTING INTO FIXTURE
AND SECURING WITH ATTACHMENT NUT
AGAINST LENS STOPS.
BRACKET
MOUNTING
SCREWS
FIXTURE
MOUNTING
LEG
WIREGUARD
!
When using electrical equipment, basic safety precautions should always be followed, including the following:
• Read all instructions carefully installing and save for future use.
• Make sure all connections are in accordance with the National Electrical Code and local regulations.
• To avoid possible electric shock, be sure the power supply is turned off before servicing or installing the fixture
• Service should be performed by qualified personnel.
• These instructions may not cover all details or variations. If additional information is needed, please contact Visa Lighting.

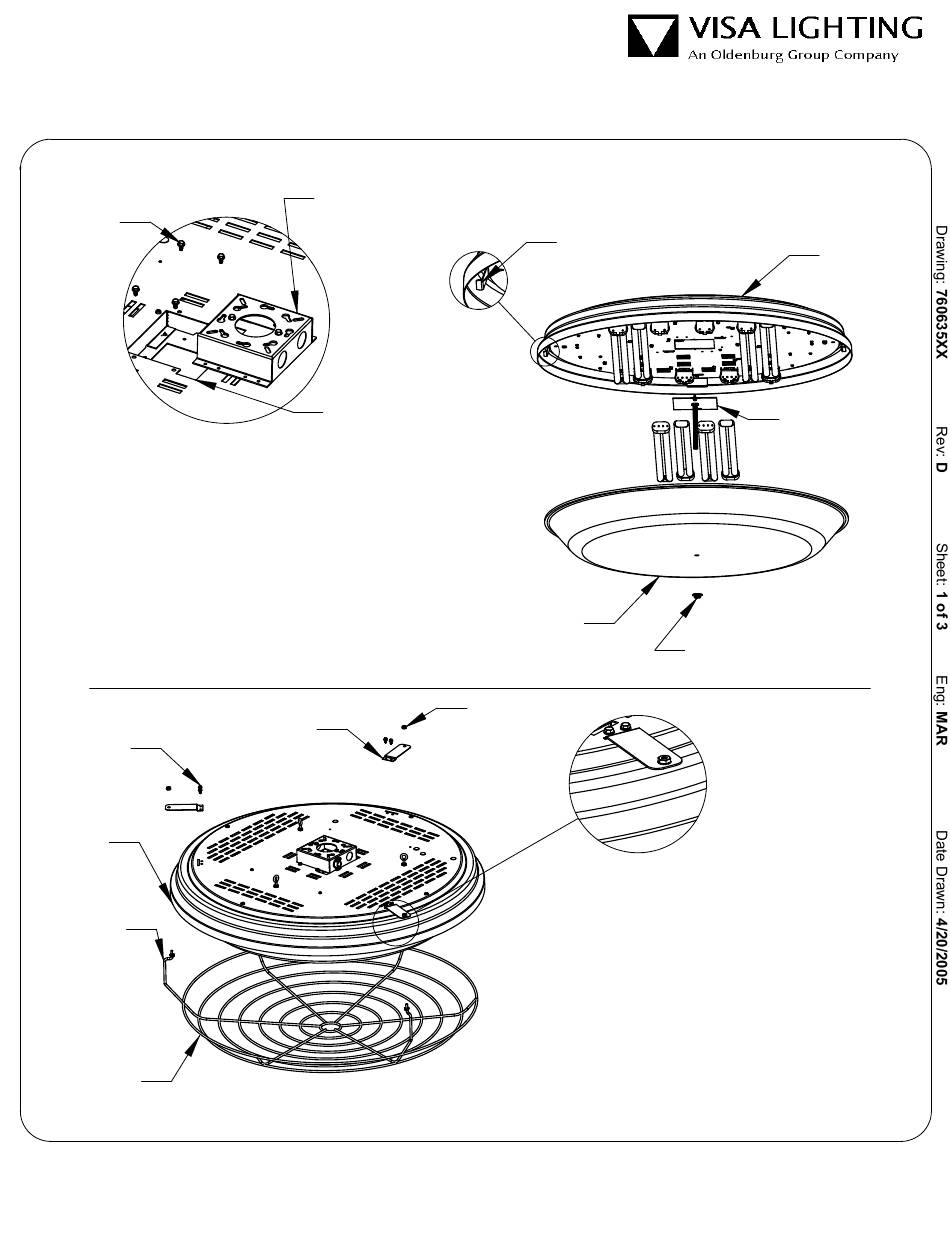

LENS ATTACHMENT, JBOX MOUNTING AND ACCESS
FIXTURE JBOX
NOTCHED AREA
WIREGUARD
BRACKET
LENS STOP
LENS
WIREGUARD
MOUNTING
NUT
WIREGUARD MOUNTING
1. INSTALL ONE NUT ONTO EACH MOUNTING
LEG OF WIREGUARD (3 PLACES). TURN NUT TO
THE END OF THE THREADS.
2. ASSEMBLE WIREGUARD BRACKETS TO
FIXTURE BY INSERTING INTO SLOT ON HOUSING
AND ATTACHING WITH (2) MOUNTING SCREWS.
3. LIFT WIREGUARD AROUND FIXTURE AND INSERT
MOUNTING LEGS THROUGH HOLES IN BRACKET.
ATTACH WITH 3 ADDITIONAL NUTS.
1717 West Civic Drive Milwaukee, WI 53209
414-354-6600
Design Modification Rights Reserved
© Visa Lighting
FIXTURE
ACCESS
PLATE
LENS ATTACHMENT
NUT
