Action Sports Equipment Pty Ltd.
72 Silverwater Rd, Silverwater, NSW, Australia, 2128
Parts & Service Enquiries: 1800 465 070 (Australia); 09 488 4750 (New Zealand)
Sales Enquiries: 1800 777 137 (Australia); 09 488 4750 (New Zealand)
Or visit our website: www.actionsports.com.au
Assembly, Installation, Care, Maintenance and Use Instructions
Please read and retain this manual as it will assist with identification for parts and service.
Read this manual prior to assembling and using this product.
Adult assembly is required
For children age 12 months and up
This item is subject to a maximum user weight of 35kgs.
Always use under adult supervision
Do not allow more than one person on the trampoline at a time.
ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au
Or email: service@actionspares.com.au

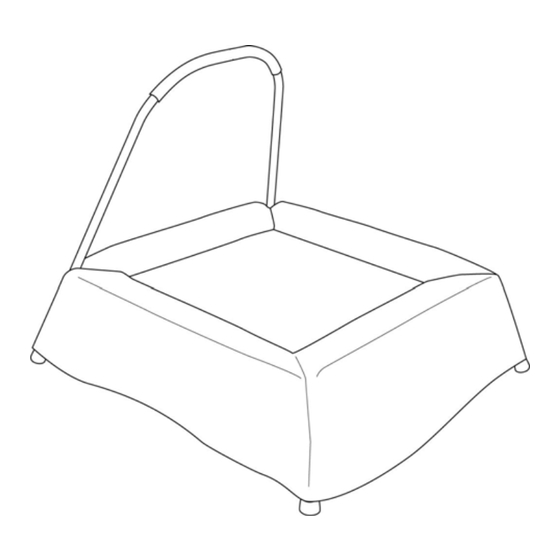

S000193 - Junior Jumper, Blue
S000426 – Junior Jumper, Pink
S000427 – Junior Jumper, Green
IMPORTANT
This Product is for Domestic Use Only.
- Warning -
Page: 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Action Sports Equipment Junior Jumper
Summary of Contents for Action Sports Equipment Junior Jumper
- Page 1 For children age 12 months and up This item is subject to a maximum user weight of 35kgs. Always use under adult supervision Do not allow more than one person on the trampoline at a time. ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 1...
- Page 2 Inspect before each use. Make sure frame pad is in place and legs are firmly seated. Replace any worn, defective, damaged or missing parts. The weight limit for your Junior Jumper is 35kgs. Do not allow persons exceeding this weight to use this trampoline.
- Page 3 Leg Tube (1) (scoop tube) Leg Tube (2) Mat with Foam Padding Bungee Cord Hook Rubber End Caps Sleeve M6 x 43mm Hex Bolt M6 x 47mm Hex Bolt M6 Washer ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 3...
- Page 4 Step 1: Select a clear area and lay out the frame legs on the floor. Figure 1 Step 2: Slide the handle cover Sleeve (I) onto the Left Handle tube (A). Figure 2 ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 4...
- Page 5 Misalignment of the legs prior to tightening may lead to the unit being unstable. Metal ends of tube in exact alignment before tightening. Metal ends sit below plastic end cap. ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 5...
- Page 6 Finally, push 4 rubber end caps (H) over each of the four assembled legs. Step 5: Place the Mat & Foam Padding (E) onto the Frame. Make sure the padding panel that with two long Velcro tie-downs cover Leg Tube D. Figure 5 ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 6...
- Page 7 Fig 7. Check again the bungee cord again to make sure it goes around evenly around the frame in both spacing and tensions. Figure 7 ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 7...
- Page 8 Step 8: Unfold the padding to cover the whole frame. Secure the front padding onto the frame with the Velcro tying straps as shown in Figure 8. Figure 8 Step 9: Secure the back padding onto the frame with sewn in Velcro patches. Figure 9 ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 8...
- Page 9 To avoid damage to the Trampoline, do not allow pets or other animals on the Trampoline. Their claws and teeth can damage the mat of the trampoline. Disassemble and store the product when it is not in use. ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 9...
- Page 10 Freecall 1800 465 070 (Australia) or email service@actionspares.com.au Standard Call 09 488 4750 (New Zealand). Opening hours: 9am – 4:30pm Monday to Friday (excluding Public Holidays) 9am – 3pm Saturday www.actionsports.com.au ACTION SPORTS EQUIPMENT PTY LIMITED – www.actionsports.com.au Page: 10...
