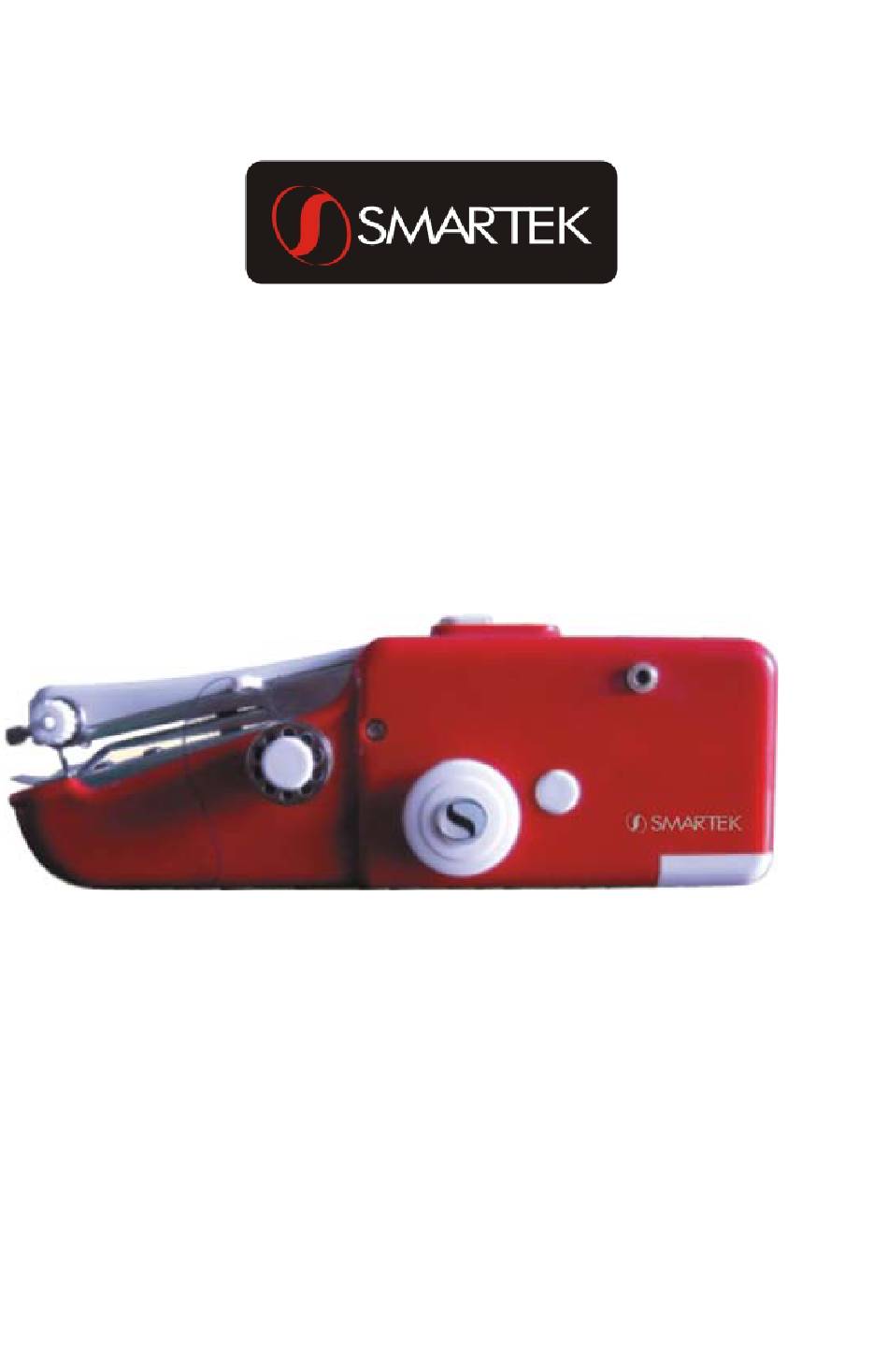

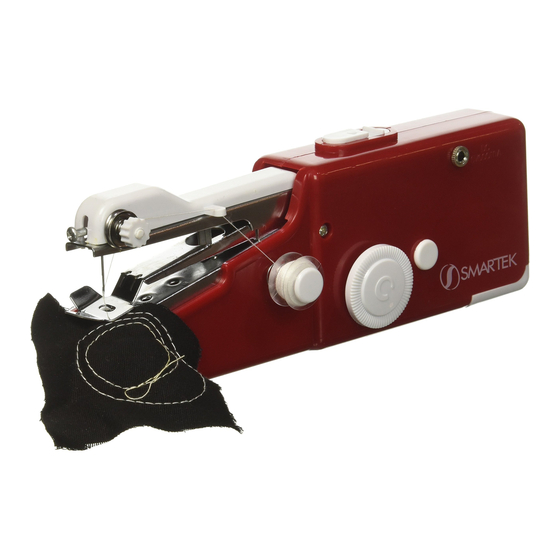

- Page 1 Smartek Mini Sewing Machine Operating Instructions Model No. RX-01 Read all Instructions Before using this item...
- Page 2 ♦ The needle is sharp. Use care when working with the needle to avoid injury. Keep away from children ♦ When not in use the machine should always be kept in a locked position. ♦ Operate the machine for 10 seconds, and then pause for 5 seconds.
-
Page 3: Thread Tension
HOW TO THREAD ♦ Note* The spring must be in place before installing bobbin Thread should flow from the top right of the bobbin or spool. ♦ Pass thread through the eyelet on the needle arm ♦ Pass thread over top of tension control. Do not wrap completely around tension control ♦... -
Page 4: How To Operate
HOW TO OPERATE ♦ Ensure the machine is in the locked position ♦ Raise the needle arm to the highest position by turning the rotary wheel. ♦ *Note: The rotary wheel can be turned in either direction ♦ Lift up the fastening plate making sure not to push down on the needle arm( the arm can still be moved manually even when the machine is in the... - Page 5 ♦ Hold the sewing machine with right hand and operate power switch with thumb, other fingers ♦ Unlock the sewing machine. Press the power switch with your right thumb. The machine will automatically sew the fabric/ cloth to the left ♦...
- Page 6 FINISHING A SEAM ♦ When finish sewing raise the needle arm to the highest position by turning the rotary wheel. Use the back of a seam ripper or scissors to pull the thread out about three inches then cut it see diagram ♦...
-
Page 7: Needle Replacement
NEEDLE REPLACEMENT ♦ Loosen the set screw with a screwdriver and take off the old needle ♦ Always use a # 14 style DHx1 sewing needle. ♦ Needle must be installed with a flat side of the needle shank facing the front of min sewing machine BATTERY REPLACEMENT ♦... - Page 8 REGULAR THREAD use a regular Spool of thread Loosen the bobbin nut and take off the bobbin. 2 Slide thread spool onto extension spind Conne ct the extension spindle on bobbin shaft. COMPONENTS IDENTIFICATION...
