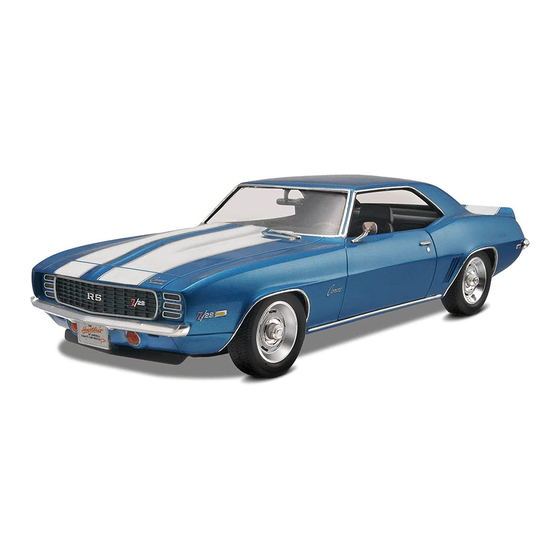

REVELL '69 Camaro Z/28 Assembly Manual

Chevrolet introduced the wildly successful Camaro
®
compete with similarly sized and proportioned "ponycars" from
other manufacturers. Initially, the largest engine available was
the big-block 396 cubic inch V8. It produced plenty of horsepow-
er for straight-line acceleration but also produced a lot of weight
for the front end, which harmed the handling.
With the announcement of the Sports Car Club of America's
new Trans-Am Sedan Championship, Chevy
to have an entry. While not officially endorsing racing activi-
ties, Chevrolet knew from stock car competition that if your car
®
won on Sunday, you could expect a showroom full of people
on Monday. The problem they faced was that the SCCA had a
305 cubic inch limit on engine displacement. The Chevy
was too big while the 283 was not known for its performance.
The solution was to put the crankshaft from the 283 into the
327's block, resulting in 302 cubic inches of displacement. Not
only was the resulting engine powerful, but also light in weight,
* REPEAT SEVERAL TIMES * OPTIONAL PARTS
* A REPETER PLUSIEURS FOIS * PIECES EN OPTION
READ THIS BEFORE YOU BEGIN
* Study the assembly drawings.
* Each plastic part is identified by a number.
* In the assembly drawings, some parts will be
marked by a star (★) to indicate chrome
plated plastic.
* For better paint and decal adhesion, wash
the plastic parts in a mild detergent solution.
Rinse and let air dry.
* Check the fit of each piece before
cementing in place.
* Use only cement for polystyrene plastic.
* Scrape plating and paint from areas
to be cemented.
* Allow paint to dry thoroughly before
handling parts.
* Any unused parts may be discarded.
DECAL APPLICATION INSTRUCTIONS
1. Cut desired decal from sheet.
2. Dip decal in water for a few seconds.
3. Place wet decal on paper towel.
4. Wait until decal is movable on paper backing.
5. Place decal in position on model, face up and
slide backing away.
6. Press out air bubbles with a soft damp cloth.
7. Milkiness that may appear is for better decal
adhesion and will dry clear. Wipe away any
excess adhesive.
8. Do not touch decal until fully dry.
9. Allow the decals 48 hours to dry before
applying clear coat.
NOTE: Decals are compatible with
setting solutions or solvents.
If you have any questions or comments, call our hotline at:
Revell-Monogram Consumer Service Department, 725 Landwehr Road, Northbrook, Illinois 60062
Be sure to include the plan number (85214800200), part number, description, your return address and phone number.
All manuals and user guides at all-guides.com
KIT 2148
'69 Camaro
in 1967 to
®
knew they had
®
327
®
* DECAL * ALTERNATIVE ASSEMBLY
* DECAL COMANIE * ENSEMBLAGE ALTERNATIVE
LIRE CE QUI SUIT AVANT DE COMMENCER
* Etudier les schémas de montage.
* Chaque pièce en plastique est identifiée par un numéro.
* Sur les schémas de montage, certaines pièces sont
marquées d'une étoile (★) pour indiquer qu'elles sont en
plastique chromé.
* Pour une meilleure prise de la peinture et des autocollants,
laver les pièces en plastique avec une solution détergente
peu concentrée. Les rincer et les laisser sécher à l'air.
* Vérifier que chaque pièce s'ajuste bien avant
de la coller en place.
* N'utiliser que de la colle pour polystyrène.
* Gratter les parties à coller pour enlever le chrome et la peinture.
* Laisser la peinture bien sécher avant de manipuler les pièces.
* Toute pièce inutilisée peut être jetée.
DIRECTIVES D'APPLICATION DES AUTOCOLLANTS
1. Découper l'autocollant désiré de la feuille.
2. Tremper l'autocollant dans de l'eau pendant quelques secondes.
3. Placer l'autocollant mouillé sur une serviette en papier.
4. Attendez que l'autocollant puisse être déplacé sur son
support en papier.
5. Mettre l'autocollant en position sur le modèle face sur
le dessus et faire glisser le support pour l'enlever.
6. Appuyer avec un chiffon doux humide pour éliminer les bulles d'air.
7. La substance laiteuse qui peut apparaître est destinée à
améliorer l'adhésion de l'autocollant et devient incolore au
séchage. Essuyer pour enlever tout excédent d'adhésif.
8. Ne pas toucher l'autocollant tant qu'il n'est pas bien sec.
9. Laisser l'autocollant sécher pendant 48 heures avant
d'appliquer une couche transparente.
REMARQUE: Les autocollants sont compatibles avec
les solutions de fixage ou les solvants.
or, please write to:
Visit our website: www.revellmonogram.com
REVELL-MONOGRAM, LLC Northbrook, IL. Copyright © 2006. All rights reserved.
enabling the engineers to focus on the handling. Rated some-
what conservatively at 290 horsepower, the V8 was included in a
"special performance package" that had the option code of Z/28
in the order books. By 1969, the Z/28
special front and rear suspension, dual exhaust with "deep-tone"
mufflers, heavy duty cooling, a quicker steering ratio, white let-
tered wide oval tires and the now familiar rally stripes in white or
black. Rarely seen performance options included a cross-ram
intake manifold with dual 4 bbl. carbs and special "chambered"
exhaust, both of which are replicated in scale in your Revell kit.
Due to the delay in getting the all-new 1970 Camaro
for production, the '69 model remained in production for several
extra months-until February 1970. As a result, the '69 model was
one of the best selling years for the Camaro
copies sold.
* CEMENT TOGETHER
* A COLLER
This optional paint guide is provided if you
Ce guide de peinture vous sera fourni si vous choisissez
(800) 833-3570
Z/28
®
®
package also included
®
with over 243,000
®
* REMOVE AND THROW AWAY * DO NOT CEMENT
* A RETIRER ET JETER * NE PAS COLLER
choose to detail paint your model.
de peindre votre modèle en détail.
Aluminum
Aluminium
Gloss Black Noir brillant
Gloss Red
Rouge brillant
Metallic Blue
Bleu Metallise
Semigloss Black
Noir satiné
Orange Metallise
Metallic Orange
Silver Argent
Steel
Acier
Feu clignotant de
Turn Signal Amber
Direction ambre
White
Blanc
Wood Grain Bois
85214800200
®
