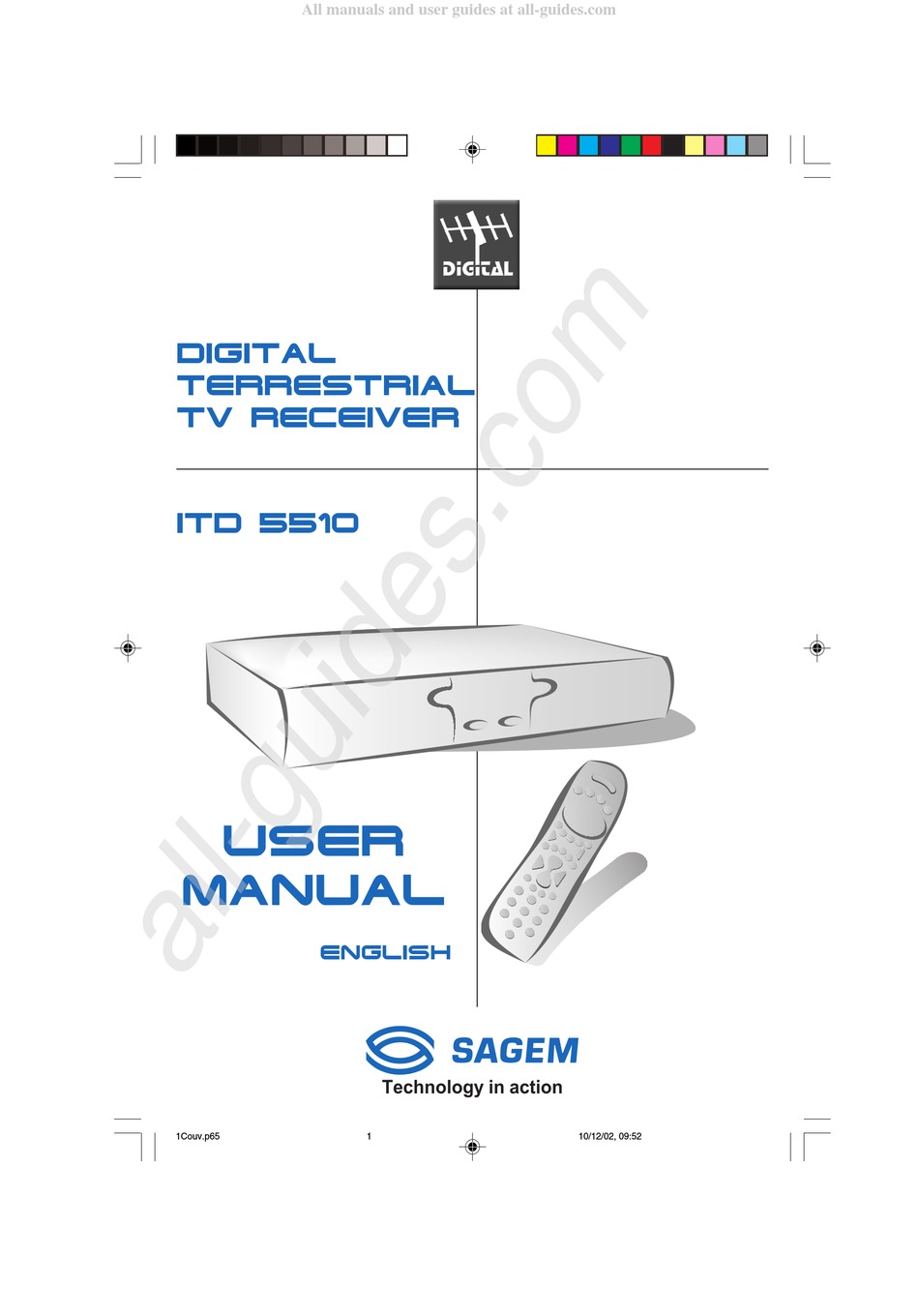

- Page 1 All manuals and user guides at all-guides.com DIGITAL TERRESTRIAL TV RECEIVER ITD 5510 USER MANUAL ENGLISH Technology in action 1Couv.p65 10/12/02, 09:52...
- Page 2 You can update your Set Top Box through the satellite stream as new functions and services become available. SAGEM Set Top Box operates a policy of continuous development. Therefore we reserve the right to make changes and improvements to any of the products described in this manual without any prior notice.
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com CONTENTS 1. GENERAL INFORMATION ......................6 1-1 Safety ............................ 6 1-2 Packing list ..........................6 1-3 Connection to the mains supply .................... 6 2. GENERAL DESCRIPTION ......................7 2-1 Front panel description ......................7 2-2 Rear panel description ...................... - Page 4 All manuals and user guides at all-guides.com CONTENTS 5. USING YOUR SET TOP BOX ..................... 20 5-1 Changing channels and lists ....................20 5-1-1 Switching channels ....................20 5-1-2 Info zapping ....................... 20 5-1-3 Quick return key ( ) ....................20 5-2 Info programme screen .......................
-
Page 5: General Information
All manuals and user guides at all-guides.com 1. General information 1. GENERAL INFORMATION 1-1 SAFETY In order to keep your Set Top Box high performance, it should: x be located in an indoor place to protect it from lightning, rain and direct sunlight, x be located in a dry and well-ventilated place, x be protected from damp, x be installed in a way to avoid violent shocks,... -
Page 6: General Description .2
All manuals and user guides at all-guides.com 2. General description GENERAL DESCRIPTION .2 2-1 FRONT PANEL DESCRIPTION Door Green Stand-by and switch on key. Programme changing key. Red LED(*) Stand-by mode. Green LED Reception of commands from remote control. 4 digit front panel display A: for the subscription smart card B: not used C: not used... -
Page 7: Rear Panel Description
All manuals and user guides at all-guides.com 2. GENERAL DESCRIPTION 2-2 REAR PANEL DESCRIPTION A - 220-240V 50Hz power supply socket (**) B - Socket for Serial Data Port C - IEC 958 connector for optical connection to HI-FI audio D - Socket for connection to video devices (*) E - Socket for connection to HI-FI audio, left channel (*) F - Socket for connection to HI-FI audio, right channel (*) -
Page 8: Rcu Operation
All manuals and user guides at all-guides.com GENERAL DESCRIPTION .2 2-3-2 RCU operation FUNCTION Stand-by Color function key Green Color function key Yellow Color function key Blue Color function key Left Right Down Confirm Return Exit Information Guide Menu Change page in events Change page in events Not used Not used... -
Page 9: Smart Card
All manuals and user guides at all-guides.com 2. GENERAL DESCRIPTION 2-3-3 Smart card 2-3-3-1 Subscription smart card and banking card If your programmes are transmitted with an access control, your card must be inserted in the smart card reader. In order to avoid loss or damage, this card should never be removed from the unit. To insert the card, open the door located on the left side of the front panel and insert your card, microchip facing up in the slot. -
Page 10: Connections .3
All manuals and user guides at all-guides.com 3. Connections CONNECTIONS .3 3-1 INTRODUCTION There are several ways of connecting the Set Top Box to your audio/TV system. Some of the methods enable you to listen to music in stereo sound of CD like quality. Consult your local supplier for assistance in setting up an audio/video configuration best suited to your unique requirements. -
Page 11: Hi-Fi Amplifier
All manuals and user guides at all-guides.com 3. CONNECTIONS 3-3 HI-FI AMPLIFIER Hi-Fi amplifier (Digital-Optical input) Hi-Fi amplifier (analog input) You can connect your Set Top Box to your Hi-Fi amplifier (standard, with equalizer or even better, Prologic) to obtain excellent listening comfort comparable to those of audio programmes. Volume adjustment is possible directly from your Set Top Box. -
Page 12: Set Top Box Installation .4
All manuals and user guides at all-guides.com 4. Set Top Box installation SET TOP BOX INSTALLATION .4 4-1 PRELIMINARY Your Set Top Box is supplied ready to use for a standard configuration. : 4/3 format, RGB, stereo sound : PAL, stereo sound Access to the installation screens shown below will enable you to adapt your Set Top Box to your favourite equipment. -
Page 13: Channels Installation With Scanning
All manuals and user guides at all-guides.com 4. SET TOP BOX INSTALLATION 4-2 CHANNELS INSTALLATION WITH SCANNING This installation will complete list A with all the channels fournd during the scanning of all the frequencies. This list is a summary of all the channels and will not be modified. It will be possible to create personal lists based on this reference list (see chapter 4.5). -
Page 14: Network Status
All manuals and user guides at all-guides.com SET TOP BOX INSTALLATION .4 4-3 NETWORK STATUS BOX INSTÄLLNINGAR KANALSÖKNING At any time you can check the newtork status TV OCH VIDEOBANDSPELARE MOTTAGARENS STATUS Press to confirm. FLYTTA BEKRÄFTA TILLBAKA AVSLUTA MOTTAGARENS STATUS OFDM Synk FFT Synk Frekvens Synk... -
Page 15: Favourite Lists Installation
All manuals and user guides at all-guides.com 4. SET TOP BOX INSTALLATION 4-4 FAVOURITE LISTS INSTALLATION This function will enable you to make up a FAVOURITE list of the TV or radio type from the reference list A (built from provider (transponder) installation or a scanning) and erase it entirely to reconstruct a new one. -
Page 16: Audio/Video Installation
All manuals and user guides at all-guides.com SET TOP BOX INSTALLATION .4 4-5 AUDIO/VIDEO INSTALLATION BOX INSTÄLLNINGAR KANALSÖKNING TV OCH VIDEOBANDSPELARE Press for access to this menu. MOTTAGARENS STATUS FLYTTA BEKRÄFTA TILLBAKA AVSLUTA 4-5-1 TV TV OCH VIDEOBANDSPELARE A number of choices are available. TV-FORMAT 4/3 Letter box RGB LJUSSTYRKA... -
Page 17: Language Setting
All manuals and user guides at all-guides.com 4. SET TOP BOX INSTALLATION 4-5-3 Modulator TV OCH VIDEOBANDSPELARE If you want to adjust the channel for an another TV set: x directly access the menu, TV-FORMAT 16/9 RGB LJUSSTYRKA STARK x choose the channel (21 to 69) by entering the number, VIDEOBANDSPELARSTD SLÅ... -
Page 18: Change Protection Code
All manuals and user guides at all-guides.com SET TOP BOX INSTALLATION .4 4-8 CHANGE PROTECTION CODE Enter your new code. The first segment blinks until its value is entered, then the BYTE AV INSTALLATIONSKOD second segment blinks, etc. As soon as the value has been entered, the segment is replaced with a star. -
Page 19: Using Your Set Top Box
All manuals and user guides at all-guides.com 5. Using your Set Top Box 5. USING YOUR SET TOP BOX 5-1 CHANGING CHANNELS AND LISTS 5-1-1 Switching channels The Set Top Box provides several ways for channel switching: x Using the and keys on the front panel or on the remote control unit : The Set Top Box switches to the next service up ( ) or the next service down (... -
Page 20: Info Programme Screen
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-2 INFO PROGRAMME SCREEN §5-2-1 Il nostro amico Charly: Charly lo scozzese §5-2-2 §5-2-7 §5-2-9 §5-2-3 TOTAL : 49 Min §5-2-10 §5-2-4 AT 14:58 : In diretta dalla Camera dei Current time 14:39 §5-2-11... -
Page 21: Number Of Broadcasted Audio Languages
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX 5-2-5 Number of broadcasted audio languages By pressing the key on the remote control unit, you can read the number of broadcast audio languages. 5-2-6 Change current audio language played By pressing the key on the remote control unit, you can read the name of the current audio track played. -
Page 22: Summary Of The Next Programme
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-2-12 Summary of the next programme Summary of the next programme Il nostro amico Charly: Charly lo scozzese By pressing the keys on the 14:39 RAI2 ENGLISH TELEFILM remote control unit, you can read the sum- Undefined... -
Page 23: User Preferences (Appearance Preferences)
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX 5-4 USER PREFERENCES (APPEARANCE PREFERENCES) ANVÄNDARINSTÄLLNING x BANNER TIME OUT When you switch channels, an information banner will be MAX TID SKÄRMMEDDELANDE shown for a few seconds. GENOMSKINLIGHET You can select for how long the banner will be shown MAX TID VOLYMREGLAGE... -
Page 24: Locking
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-5 LOCKING LÅS ALLA TJÄNSTER LÅSA KANALER CNN Int. LÅS ALLA TJÄNSTER Stockholm 1 Fashion TV AKTIVERA KANALLÅS TV4 Stockholm Viasat3 SVT OS 4 TVN Chile LÅS ENSKILDA KANALER C CINEMA PREMIER LÄMPLIGHETSNIVÅ: Ab moteurs... -
Page 25: Volume Adjustment
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX 5-7 VOLUME ADJUSTMENT To increase or reduce the volume, use the keys. To turn off the sound quickly, press the mute key Press the mute key again to restore the sound. The audio volume cannot be adjusted in the VCR and TV modes. -
Page 26: Conditional Access
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-10 CONDITIONAL ACCESS INFORMATION INFORMATION OM PROGRAMKORTET INFORMATION OM MOTTAGAREN FLYTTA BEKRÄFTA TILLBAKA AVSLUTA 5-10-1 Smart card code protection CONDITIONAL ACCESS ENTER SMART CARD CODE THEN CONFIRM x If the PIN code is other than 0000 the first screen displayed - - - - is used to check the PIN code:... -
Page 27: Subscription Information
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX INFORMATION OM PROGRAMKORTET x Different functionalities are offered. INFORMATION OM ABONNEMANG KVARVARANDE POLLETTER PROGRAMKÖP By pressing button, the user can access to the ÄNDRA NEDRE KREDITGRÄNS selected menu. BYTE AV HEMLIG KORTKOD FLYTTA BEKRÄFTA... -
Page 28: Pin Code Modification
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-10-3 PIN code modification You can modifie the smart card code by entering it and confirm a second time. BYTE AV HEMLIG KORTKOD NY KORTKOD - - - - - - - - BEKRÄFTA NY KORTKOD Ange ny kortkod. -
Page 29: Conditional Access Messages
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX 5-10-4 Conditional access messages These 4 messages can be displayed. Check your smart card or call your operator call center for any problem concerning the smart card or the subscription. -
Page 30: Set Top Box Enhancement
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-12 SET TOP BOX ENHANCEMENT The Set Top Box goes in this state when a new version of software is available on the network. x "init" is displayed on the front panel display. x The Welcome screen is still displayed. -
Page 31: Troubleshooting
All manuals and user guides at all-guides.com 5. USING YOUR SET TOP BOX Error Code Origin of Error User Action ER02, ER09, Reception error Acknowledge the message by OK ER10 If necessary, repeat your request ER03, ER04, Flow validity errors Acknowledge the message by OK ER05 If necessary, repeat your request... -
Page 32: Outline Specifications
All manuals and user guides at all-guides.com USING YOUR SET TOP BOX .5 5-14 OUTLINE SPECIFICATIONS Rear panel A/V data input/output Tuner/Modulator Tuner (IEC 169-2 F): 1 TV scart Connector: IEC 169-2 female RF MODULATOR (IEC169-2 M): 1 RGB, CVBS, Audio stereo RF frequency range: 470...862 MHz SCART (TV, VCR): 2 Channel bandwidth: 8 MHz... - Page 33 All manuals and user guides at all-guides.com Technology in action http://www.sagem.com Customer Support Service : Athens (01) 94 99 200 Thessaloniki (031) 372 372 All characteristics contained in this manual are meant for information only and are subject to change without notice.
