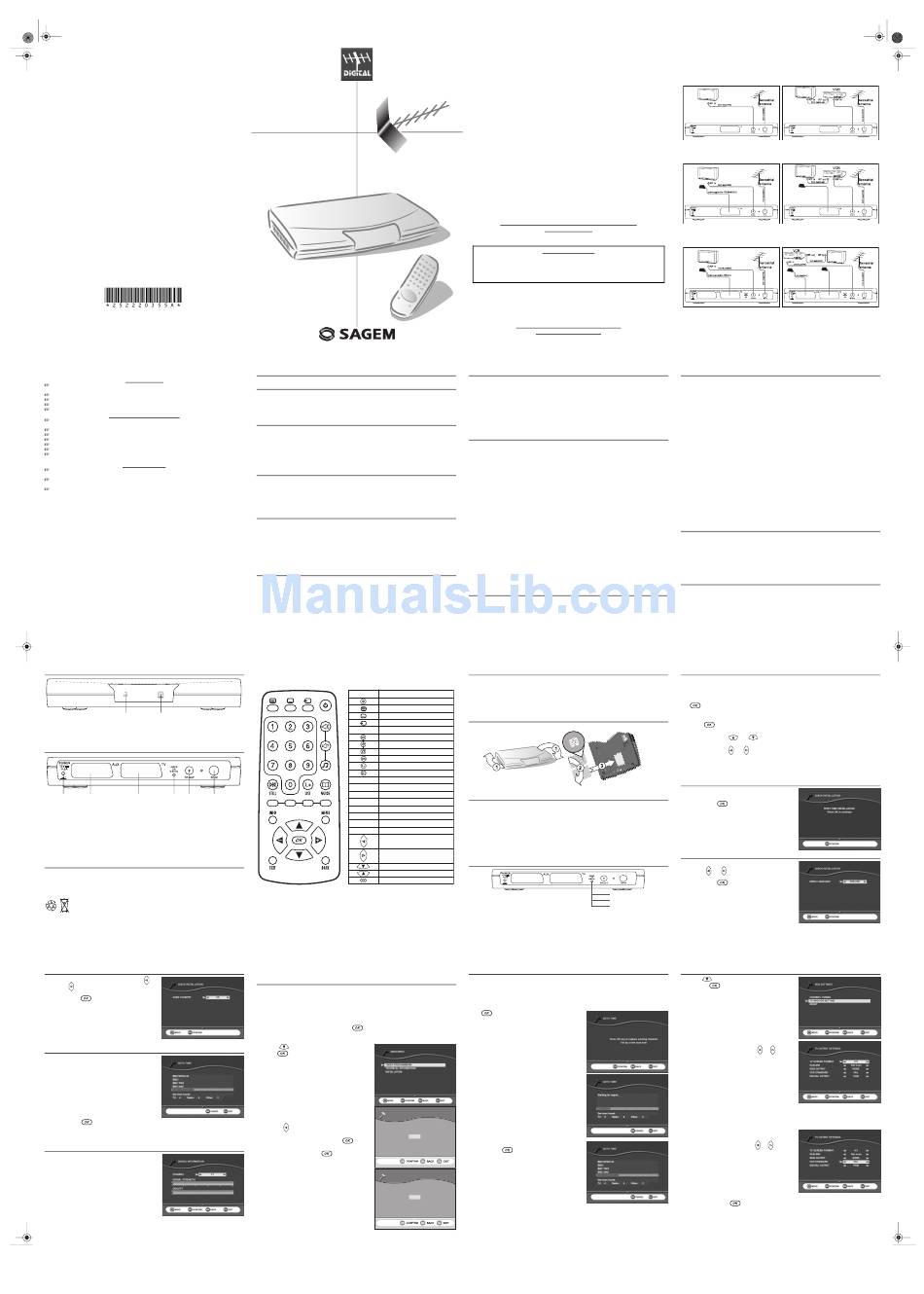

QUICK START
Installation Guide
Getting Started
Unpack your Sagem Communication digital receiver and check for the following accessories : User Manual, remote
control, batteries and power cable.
Disconnect power to all your existing equipment.
Locate product in preferred position.
Connect all equipment as shown in the diagram on the adjacent page.
Finally, once all other connections are made, connect power and switch on your television set.
Setting up your Set Top Box
Switch on your Set Top Box. Your television switches to external input. If your television does not switch automatically,
select the external input to which the Set Top Box is connected (refer to your TV handbook for details).
The Set Top Box displays a first time installation message. Press OK to continue.
Press OK to confirm menu language and user country set up.
Your Set Top Box will now search for all available channels.
Please be patient as this process takes a few minutes.
When completed, press OK to save the channel list. You should now be watching Digital Television.
Select your preferred digital channel using the Up arrow/Down arrow key button or the numbered keys on your remote
control.
Reception issues
If no reception or less than 10 channels are found, picture freezes, blanking out or blocking occurs, please re-check all
connections and repeat the automatic tuning procedure above.
Problems with setting up your Set Top Box could be caused by incorrect signal levels. Your aerial system may need
realignment or to be upgraded. Contact your retailer for details.
In case of persistant problems despite of correct signal level, contact your retailer or call Sagem Communication
helpdesk at 0905 77 48 081 (0.15 £/min, tariff cost effective form 27/06/2005).
Reasons to upgrade your aerial installation
They are 3 main reasons why you may need to upgrade your aerial :
1. your current aerial and cabling may not be able to receive all the digital channels due to its age and condition,
2. in your location the digital channels may be transmitted on a different frequency to your analog signal and you
may need a different type of aerial to receive them,
3. the new digital channels may be transmitted from a new transmetter and if this is the case, the aerial would
have to be realigned. Alternatively you could add a second aerial to your system.
For further informations, please contact your retailer.
Warnings
Interference - Do not place your Set Top Box near appliances which may cause electromagnetic interferences (i.e. hi-fi speakers). If you do, it
may adversely affect the working of the unit, causing the picture or sound to distord.
Covers - Do not remove any fixed covers as this may expose dangerous voltages.
Weather - It is advisable to unplug the aerial during a thunderstorm. Even if your Set Top Box and TV are switched off they can still be damaged
by lightning strikes.
Ventilation - The ventilation holes in the casing of your Set Top Box prevent it from over heating. Do not block or cover these holes, especially
with cloth or paper. If your Set Top Box is to be built into a compartment or similary enclosed, make sure that there is a gap of at least 10 cm on
both sides and 20 cm at the top and back of the unit.
Damage - Never use your Set Top Box if it is damaged in any way.Always place your television on a flat level surface avoiding anywhere which
may be subject to strong vibration.
Batteries - Batteries are easily swallowed by young children. Do not allow young children to play with the remote control unit.
Temperature - Avoid extreme temperature, either hot or cold. Place your Set Top Box well away from heat sources such as radiators or gas/
electric fires. Do not place candles or table lamps on or near your Set Top Box.
Moisture - Do not allow your Set Top Box to be exposed to rain, moisture or dust. Do not place a plant or flowers which may need wateringon
your TV. If any liquid is split inti your Set Top Box it can cause serious damage. If you spill any liquid into your Set Top Box switch it off at the
mains immediately and contact your retailer.
- III -
2. GENERAL DESCRIPTION
2-1 FRONT PANEL DESCRIPTION
Green/Red IR sensor
Red LED Stand-by mode.
Green LED Reception of commands from remote control.
2-2 REAR PANEL DESCRIPTION
A B C D E F
A – Connector for external AC/DC adapter
B – Scart socket for VCR/AUX connection (*)
C – Scart socket for TV set connection
D – mini jack 3.5 for DIGITAL audio and AUDIO L/R output (**)
E – RF output for TV
F – Aerial input
(*) Not available on ITD 58/59/60/68
(**) Only ITD64
2-3 REMOTE CONTROL UNIT
2-3-1 Battery installation
The remote control unit requires two AA or R6 batteries for operation.
The diagram inside the battery compartment will show you how to insert the batteries.
Warning: Only use the appropriate batteries, according to the manufacturer
specifications (see "Outline specifications" page 23). The provided batteries
are not rechargeable. Bring back the defective or empty batteries to your
local waste disposal in accordance with the current regulations. Do not
dispose of used batteries in your dustbin.
- 2 -
4. FIRST TIME INSTALLATION
4-4 COUNTRY
• Select the desired country with cursors and
. This will also set the current time.
• Press to continue.
4-5 CHANNEL SEARCH IN PROGRESS
This menu will be shown as the Set Top Box is searching for
TV and radio channels.
Please note that the search procedure may take a few
minutes.
You can cancel the search at any time by pressing EXIT.
When the search procedure has ended, a message will
indicate how many TV and radio channels have been found.
• Press to finish the first time installation
and to open the door of Digital TV.
4-6 AERIAL FAILURE
If the channel search has found no channel, this screen is
displayed to help you adjust the aerial.
Enter a channel number
(refer to http//www.dtg.org.uk/retailer/tx_details/_tx_index.htm.
For example, Oxford channel numbers are 29, 34, 48,51, 52,
68. These numbers depend on broadcasters and are subject
to change.) and move the antenna until the signal and quality
bars are green.
When signal and quality are green, press BACK to launch a
new channel search.
- 6 -
DIGITAL
TERRESTRIAL
TV RECEIVER
ITD 58 - ITD 59 - ITD 60
ITD 61 - ITD 62 - ITD 64
ITD 68* - ITD 72*
*Top Up TV compatible
USER MANUAL
ENGLISH
CONTENTS CONTENTS
QUICK START ............................................................................................... I
1. GENERAL INFORMATION ....................................................................... 1
1-1. SAFETY ........................................................................................................ 1
1-2. PACKING LIST ............................................................................................. 1
1-3. CONNECTION TO THE MAINS SUPPLY .................................................... 1
2. GENERAL DESCRIPTION ....................................................................... 2
2-1. FRONT PANEL DESCRIPTION ................................................................... 2
2-2. REAR PANEL DESCRIPTION ...................................................................... 2
2-3. REMOTE CONTROL UNIT ........................................................................... 2
2-3-1. Battery installation ........................................................................................... 2
2-3-2. RCU operation ................................................................................................. 3
3. CONNECTIONS ........................................................................................ 4
3-1. INTRODUCTION .......................................................................................... 4
3-2. INSTALL TOP UP TV CARD (only ITD 68/72) ............................................. 4
3-3. CONNECTION TO TV SET, VCR AND ANTENNA ...................................... 4
3-4. AUDIO AMPLIFIER (only ITD 64) ................................................................. 4
4. FIRST TIME INSTALLATION ................................................................... 5
4-1. GENERAL INFORMATION ........................................................................... 5
4-2. FIRST TIME INSTALLATION ....................................................................... 5
4-3. LANGUAGE .................................................................................................. 5
4-4. COUNTRY .................................................................................................... 6
4-5. CHANNEL SEARCH IN PROGRESS ........................................................... 6
4-6. AERIAL FAILURE ......................................................................................... 6
5. BOX ADVANCED SETTINGS .................................................................. 7
5-1. PRELIMINARY/ INSTALLATION CODE ....................................................... 7
5-2. CHANNEL SEARCH: AUTO TUNE .............................................................. 8
5-3. AUDIO/VIDEO INSTALLATION .................................................................... 9
5-3-1. TV .................................................................................................................... 9
5-3-2. VCR (Not available on ITD58/59/60/68) .......................................................... 9
5-3-3. Modulator (Only ITD60) ................................................................................. 10
5-3-4. Digital output (Only ITD64) ............................................................................ 10
5-4. REINSTALLATION - RESET ...................................................................... 10
2. GENERAL DESCRIPTION
2-3-2 RCU operation
KEY FUNCTION
Standby/Switch on
Text
Subtitles
TV/VCR
0-9
Numerical keys
Audio mute
Audio track
Radio mode
Still video (*) (**)
Change favourite lists (*) (**)
Guide (*)
Red Function key colour
Green
Function key colour
Yellow Function key colour
Blue
Function key colour
INFO Information
MENU Menu
EXIT
Exit
BACK Previous channel and Back in menus
Audio volume - and Left arrow for navigation
Audio volume + and Right arrow for navigation
Channel - and Down arrow for navigation
Channel + and Up arrow for navigation
Smart List and Confirm in setup menu
Be sure to point the remote control unit directly towards the Set Top Box.
(*) Function not available on ITD 58/60/68
(**) Function not available on ITD 59
- 3 -
5. BOX ADVANCED SETTINGS
Go to MENU/INSTALLATION/BOX SETTING/CHANNEL SEARCH.
5-1 PRELIMINARY/ INSTALLATION CODE
Your Set Top Box is supplied ready to use for a standard configuration.
TV : 4/3 format, RGB (Letterbox)
VCR : PAL (none on ITD 58/59/60/68)
Access to the installation screens shown below will enable you to adapt your Set Top Box to your favourite
equipment.
The access to main menu is obtained by pressing the MENU key.
You can memorise your selections by pressing the key.
Return to the previous screen by pressing the BACK key.
Exit from all the screens by pressing the EXIT key.
Use cursor to move down to the INSTALLATION line
and press to confirm.
Access to the installation menus is protected by a secret
installation code to avoid any unintentional misadjustment.
Your Set Top Box is supplied with default code 1234.
Note: you will not be prompted to enter any code, if the
installation code is «0000».
Enter your code.
As soon as each value is entered, the segment is replaced by
INSTALLATION
a star.
Using cursor of the remote control unit, you can come ENTER YOUR INSTALLATION CODE
THEN PRESS OK TO CONFIRM
back to a value that has already been entered and modify it
- - - -
provided the code has not been confirmed by .
After entering the four digits press to confirm.
An error message will be displayed if the code you have
entered is not correct.
MAIN MENU
ENTER YOUR INSTALLATION CODE
THEN PRESS OK TO CONFIRM
* * * *
BAD CODE
PLEASE TRY AGAIN
- 7 -
QUICK START
CONGRATULATIONS!
This new generation of Set Top Box gives you access to new digital services and makes it easy for you and
your family to choose the very best experiences of Digital TV.
Once you have connected your Set Top Box and adjusted it according to your preference, you can enjoy all
the services.
You can update your Set Top Box through the antenna stream as new functions and services become
available.
Sagem set top box operates a policy of continuous development. Therefore we reserve the right to
make changes and improvements to any of the products described in this manual without any prior
notice.
The EMC Directive 89/336/EEC is applied to this product.
SAGEM is a registred trademark of SAFRAN.
The CE marking certifies that the product meets the essential requirements of Directive 1999/5/CE of the
European Parliament and of the Council pertaining to microwave radio equipment and telecommunication
terminal equipment, for the safety and health of users, for electromagnetic interference. Furthermore, it
efficiently uses the frequency spectrum attributed to ground and spatial communication to prevent damaging
interference.
The declaration of compliance may be looked up on the www.sagem.com site, section "support" or can be
obtained from the following address:
Sagem Communication - Customer relations department
4 rue du Petit Albi - 95800 Cergy Saint-Christophe - France
Copyright © Sagem Communication (SAFRAN Group)
All rights reserved
ITD 58 / ITD 60 / ITD 61 / ITD 62 / ITD 64 / ITD 68 / ITD 72
Digital TV Receiver
Quick Start Guide
IMPORTANT NOTICE
Before unpacking this product further,
Your Set Top Box is supplied with default code 1234.
Have you or your local store checked your Postcode for reception?
Telephone number for your local store is on your till receipt.
Should your Store be unable to help, please check the following Website Links for Digital
Terrestrial signal coverage:
http://www.dtg.org.uk/consumer/freeview.html
htmlhttp://www.freeview.co.uk
http://www.bbc.co.uk/digital
Please note : In order to receive quality digital signal
you may need an aerial upgrade.
- I -
CONTENTS
6. USER SETTINGS .................................................................................... 11
6-1. LANGUAGE SETTING ............................................................................... 11
6-2. USER PREFERENCES .............................................................................. 11
6-3. FAVOURITE LISTS INSTALLATION (not available on ITD 58/59/60/68) .. 12
6-3-1. CREATION ..................................................................................................... 12
6-3-2. MODIFICATIONS ........................................................................................... 12
6-4. LOCKING (not available on ITD 58/59/60/68) ............................................ 13
6-5. CHANGING INSTALLATION CODE ........................................................... 14
7. USING YOUR SET TOP BOX ................................................................. 15
7-1. CHANNEL CHANGE .................................................................................. 15
7-2. PROGRAM INFORMATION ....................................................................... 15
7-3. EXTENDED PROGRAM INFORMATION ................................................... 16
7-4. TV CHANNELS LIST .................................................................................. 17
7-5. AUDIO LANGUAGE AND SUBTITLE LANGUAGE SELECTION .............. 17
7-5-1. Audio language .............................................................................................. 17
7-5-2. Subtitle language ........................................................................................... 17
7-6. VOLUME ADJUSTMENT ............................................................................ 18
7-7. TV MODE .................................................................................................... 18
7-8. DIGITAL TEXT SERVICES ......................................................................... 18
7-9. TIMER PROGRAMMING (not available on ITD 58/59/60/68) .................... 18
7-9-1. Sleep timer ..................................................................................................... 18
7-9-2. Events timer ................................................................................................... 19
7-10. ENHANCED PROGRAM GUIDE (not available on ITD 58/60/68) ........... 20
7-11. FREEZE VIDEO (not available on ITD 58/59/60/68) ................................ 20
7-12. RADIO MODE ........................................................................................... 21
7-13. SET TOP BOX ENHANCEMENT ............................................................. 21
7-14. TROUBLESHOOTING .............................................................................. 22
7-15. OUTLINE SPECIFICATIONS ................................................................... 23
7-16. GUARANTEE (TERMS AND CONDITIONS) ........................................... 24
8. ENVIRONMENT ...................................................................................... 25
8-1. PACKAGING ............................................................................................... 25
8-2. BATTERIES ................................................................................................ 25
8-3. THE PRODUCT .......................................................................................... 25
3. CONNECTIONS
3-1 INTRODUCTION
There are several ways of connecting the Set Top Box to your audio/TV system. Some of the methods enable
you to listen to music in stereo sound of CD like quality (ITD 64 only).
Consult your local supplier for assistance in setting up an audio/video configuration best suited to your unique
requirements.
Warning: Disconnect the Set Top Box from the mains before connecting or disconnecting any device to it.
3-2 INSTALL TOP UP TV CARD (only ITD 68/72)
To access, Top Up TV channels, you may turn the receiver and place the smard card as indicated below.
3-3 CONNECTION TO TV SET, VCR AND ANTENNA
Only connect your terrestrial antenna when the Set Top Box is unplugged.
The Set Top Box connects directly to your TV by a scart connector which includes RGB signals to guarantee
optimum image quality. Connect the scart cable between the TV scart connector of the Set Top Box and the
main scart connector of the TV (the one with 3 points indicating that RGB provision is available).
Then connect the Set Top Box (AUX scart connector) to your VCR or DVD player (main scart connector on
the VCR or DVD player). See Connection diagram page II.
Note: ITD 60 is equipped with an RF modulator. You can't see digital programs via the RF lead on another
TV set.
3-4 AUDIO AMPLIFIER (only ITD 64)
Yellow
DIGITAL
Red
Analog R
White
Analog L
You can connect your Set Top Box to your Hi-Fi amplifier (standard or home cinema) by using a standard
jack 3.5 to 3 RCA cable(*) to obtain excellent listening comfort comparable to those of audio programs.
Volume adjustment is possible directly from your Set Top Box only on analog output.
(*) This kind of cable is also intended for digital and analog camcorder.
- 4 -
5. BOX ADVANCED SETTINGS
5-2 CHANNEL SEARCH: AUTO TUNE
This installation will complete list "All services" with all the channels found during the scanning of all the
frequencies.
This list is a summary of all the channels and will not be modified. It will be possible to create personal lists
based on this reference list, also called list "All services" (see page 12).
It would be advisable to launch a channel search monthly in order to keep your Set Top Box up todate.
Press to start channel tuning.
An indicator at the bottom of the screen will indicate the
percentage of the scanned frequency band.
The number of different services found is displayed in real
time.
A message at the end of the scanning process will ask you to
memorize. Press .
You can cancel the scanning process at any time by pressing
the EXIT key.
You can memorize or not.
Note: You may observe a difference between the number of channel found and the number of channel
present in the channel list. This may happen when you are in area where you receive same channel from
different transmitters.
- 8 -
QUICK START
Connection diagram
ITD 60 and TV without scart
ITD 58/59/60/68 and TV with scart
On ITD 58/59, only analog channels can be recorded.
ITD 61/62/64/72
- II -
1. GENERAL INFORMATION
1-1 SAFETY
Use of your Set Top Box is subject to safety measures designed to protect users and their environment.
In order to keep the high performance of your Set Top Box, it should:
• be located in an indoor place to protect it from lightning, rain and direct sunlight,
• be located in a dry and well-ventilated place,
• be protected from damp, be installed in a way to avoid violent shocks,
• be plugged directly into the mains with the cords provided with the Set Top Box. The use of an
extension cord is not recommended,
• do not place anything on top of your Set Top Box as this will restrict ventilation.
Be careful
• Contact with a liquid would lead to deterioration of your Set Top Box, which could cause failure.
Never open your Set Top Box.
• Like any electronic device, the Set Top Box contains fragile components. It should thus be
installed in a place where it is unlikely to fall and out of reach of children.
• The case of the Set Top Box can be cleaned with a soft and dry cloth. Do not use any type of
abrasive pad, scouring powder or solvents, such as alcohol or turpentine, as they could damage
the surface of the case.
• The Set Top Box must be disconnected from mains supply (from wall socket or rear panel)
before any modification of connection between TV, VCR or antenna.
• Use only the Sagem Communication power adaptator given with the Set Top Box to connect the
STB to the mains. Other practice may be dangerous.
• Do not forget to put the batteries inside the remote control unit.
1-2 PACKING LIST
Your Set Top Box is delivered with the following components:
• a remote control unit,
• 2 batteries (R6) for the remote control unit,
• a scart cord for connection to the TV set (Not available with ITD 58/59/61/68),
• AC/DC adapter,
• this user's manual.
1-3 CONNECTION TO THE MAINS SUPPLY
The Set Top Box must be connected by the AC/DC adapter to a 220-240 V wall socket. Turn on the mains
power on the wall.
As a safety measure, you can use the power adaptors to cut off the 230V current in case of danger. They
must be located near to the device, and must be easily accessible.
Be advised to put your Set Top Box in standby when not used.
- 1 -
4. FIRST TIME INSTALLATION
4-1 GENERAL INFORMATION
Once you have correctly connected the Set Top Box, you also have to perform a "First time installation".
During this procedure, helpful information is displayed at the bottom of the menus.
Please note!
The button always confirms a selection within these menus, and pressing it will take you to the next
step in the installation process. However, and this is important, often more than one value has to be entered
in a menu. First, perform all necessary settings on the different lines. Then, confirm them all simultaneously
by pressing .
• Use cursors and to move upwards and downwards from one line to another.
• Use cursors and to change settings.
You can also use the numerical keys on the remote control to enter numeric values.
4-2 FIRST TIME INSTALLATION
• Plug in your Set Top Box.
• The "First time installation" menu is shown.
• Press to continue.
4-3 LANGUAGE
• Select the desired language with cursors
and .
• Press to continue.
- 5 -
5. BOX ADVANCED SETTINGS
5-3 AUDIO/VIDEO INSTALLATION
Use cursor to move down to the TV AND VCR SETTING
line and press to confirm.
5-3-1 TV
Several choices are available.
Scroll through the choices using cursors or :
• TV format : 4/3 (Letterbox or Pan-scan) or 16/9.
• TV RGB Output: low,medium, high or none if you
want to have PAL video output (*).
(*) Note that if you choose low, medium or high you will not able to choose the VCR standard format.
5-3-2 VCR (Not available on ITD58/59/60/68)
Several choices are available.
Scroll through the choices using cursor or :
• PAL or S-Video standard.
After a final check, press to memorize the settings. Press BACK to continue installation or EXIT to
terminate.
- 9 -
