Schematic Diagrams - Samsung CS29A5HT8X/NWT Service Manual

Chassis: ks3a p rev. 2.
Hide thumbs

Advertisement

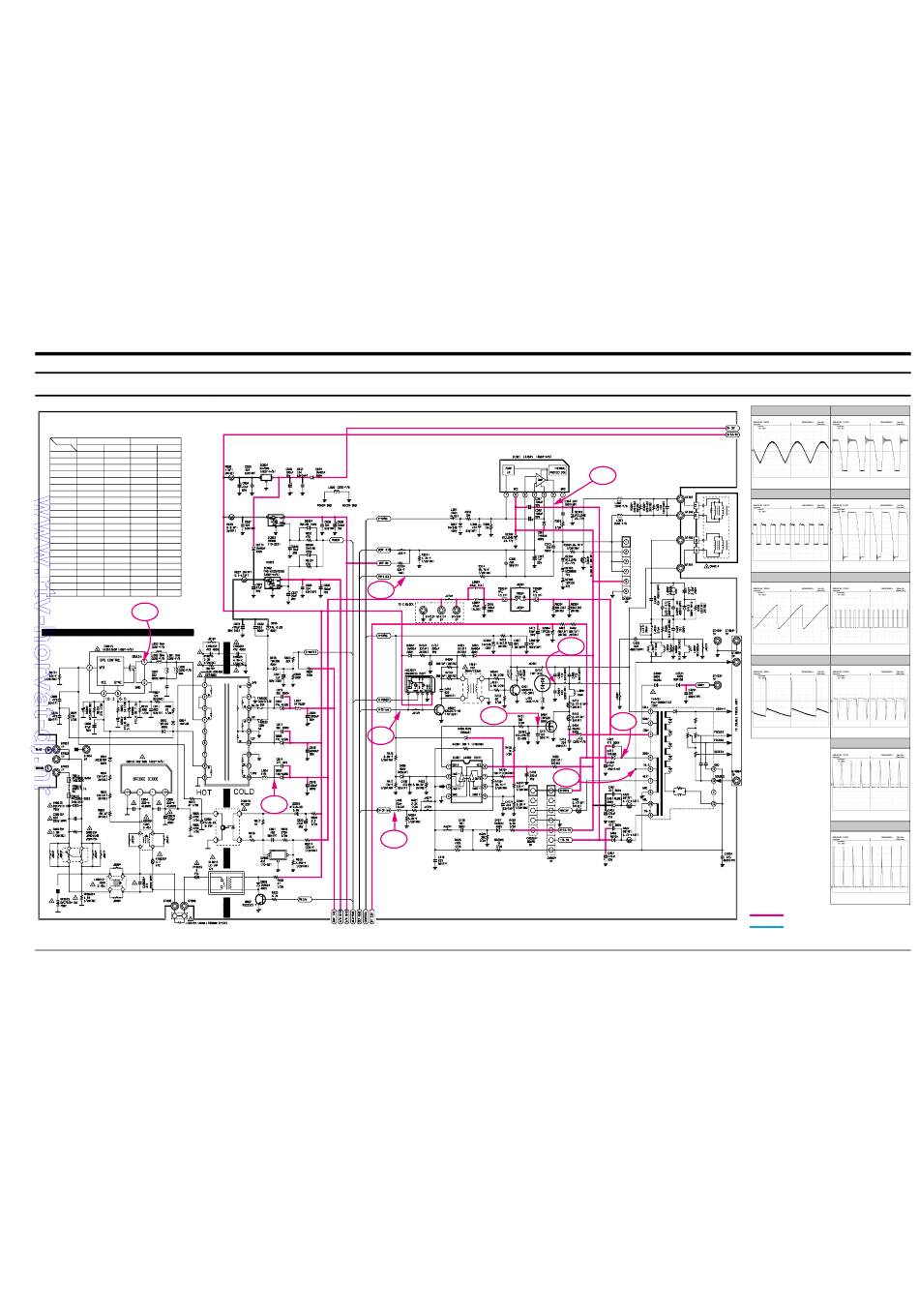

10. Schematic Diagrams

10-1 MAIN 1
TP01
Samsung Electronics
All manuals and user guides at all-guides.com
TP09
TP08
TP02
TP07
TP10
TP06
TP03
TP05
TP04
RTV servis Horvat
Tel:
++385-31-856-637
Tel/fax: ++385-31-856-139
Mob:
098-788-319
www.rtv-horvat-dj.hr
Schematic Diagrams
TP07
TP01
TP08
TP02
TP09
TP03
TP10
TP04
TP05
TP06
: Power Line
: Signal Line
10-1
