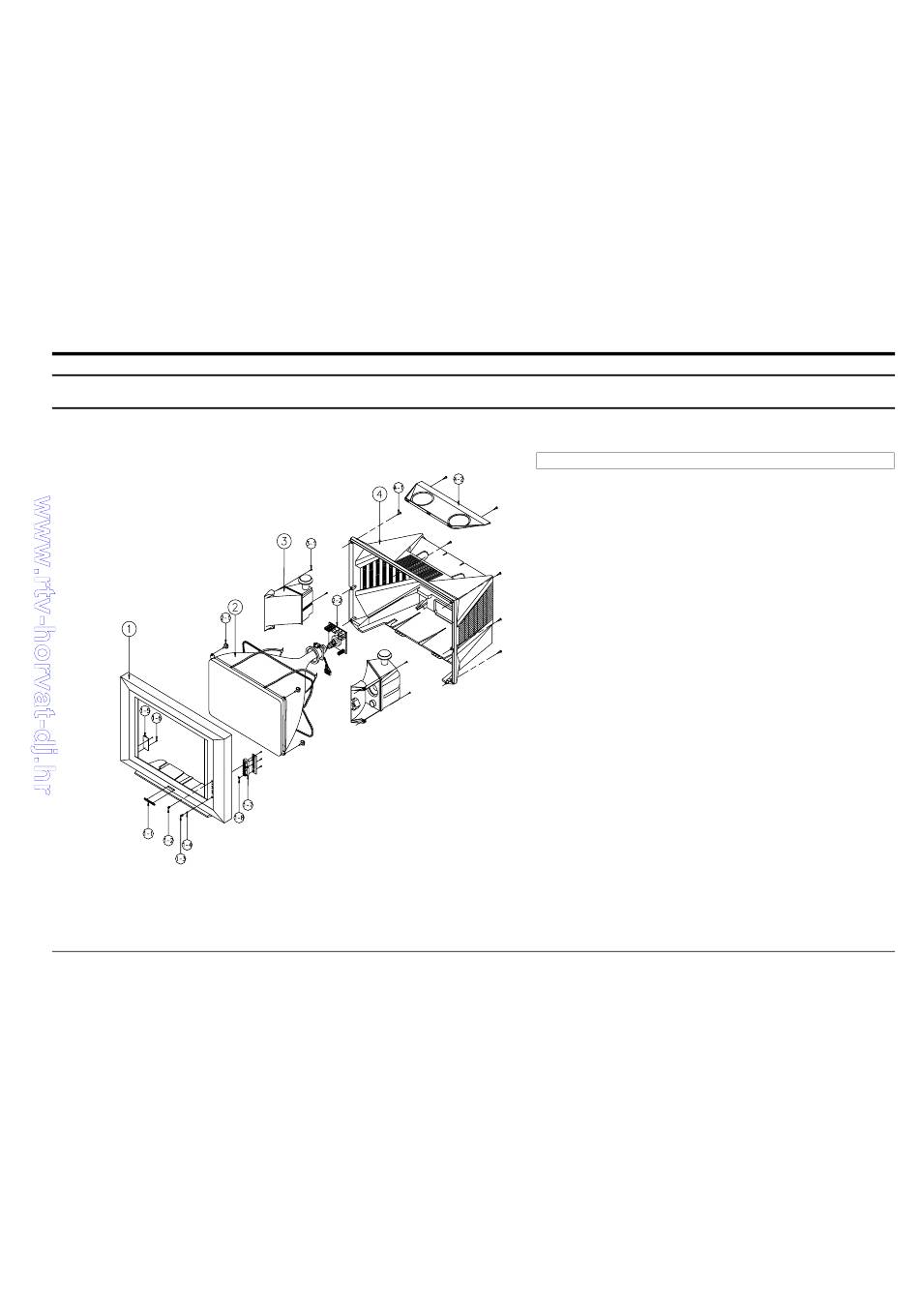

6. Exploded View & Parts List
6-1 CS29A5HT8X/BWT
Samsung Electronics
All manuals and user guides at all-guides.com
No
Code No
Description;Specification
1
AA91-00113W
ASSY CABINET FRONT;-,29A5 KS3A CIS,S704+
AA64-31106S
CABINET FRONT;29A5 KS3A,S704P+G802P PLAN
1-1
AA64-70117B
BADGE-BRAND;AL,SS,SILVER,L65,R2000,-,-
1-2
AA64-40455A
WINDOW-REMOCON;-,725A,-,PC,-,VIOLET,-
1-3
AA64-10709A
KNOB-MASTER;-,295A,VT803M MASTER,ABS,HB,
1-4
AA61-60005D
SPRING-CS;-,SUS304,0.4,OD5.5,H9,N4,-,-,-
1-5
AA95-00872A
ASSY-PCB,A/V SIDE;-,29A6,29A5,100HZ,KS3A
1-6
6002-000522
SCREW-TAPPING;TH,+,2,M4,L15,ZPC(BLK),SWR
1-7
AA64-10710A
KNOB-CONTROL;-,725A,-,ABS,HB,GRAY
1-8
AA64-40456B
INDICATOR-LED;-,295A,-,ACRYL,-,CLR,-
1-9
6002-000514
SCREW-TAPPING;RH,+,2,M4,L15,ZPC(BLK),SWR
2
AA03-00076A
CRT-COLOR;-,A68QCP891X004(C),+380MG,29IN
2-1
AA60-10050V
SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S
2-2
3704-001032
SOCKET-CRT;8P,29PI,35.5PI,AU30U
3
AA91-00333B
ASSY HOLDER SPK;-,PP,8ohm/15W,BLK,AA91-0
3-1
AA60-10050A
SCREW-ASSY;WP,RH,+,M4,L25,SWRCH18A,-,ZPC
4
AA64-31107C
CABINET-BACK;-,29A5,-,HIPS,V2,BLK,-,-
4-1
AA60-10050T
SCREW-TAPPING;RH,+,2S,M4,L20,ZPC(BLK),SW
4-2
AA63-30213C
COVER-TOP,SPK;-,725A,-,HIPS,V2,BLK,-,-
Exploded View & Parts List
Q'ty
Remark
1
1
1
1
1
1
1
2
1
1
3
1
4
1
1
4
1
7
1
6-1
