USER'S MANUAL
D22

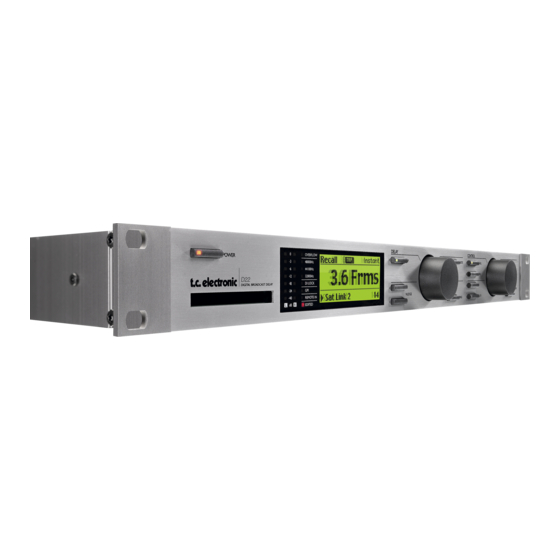

DIGITAL BROADCAST DELAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TC Electronic D22

Summary of Contents for TC Electronic D22

  • Page 1 USER’S MANUAL DIGITAL BROADCAST DELAY...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 4: Certificate Of Conformity

    Certificate Of Conformity TC Electronic A/S, Sindalsvej 34, 8240 Risskov, Denmark, hereby declares on own responsibility that following product: D22 - Digital Broadcast Delay That is covered by this certificate and marked with CE-label conforms with following standards: EN 60065...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Important Safety Instructions & Certificate of conformity ... a-b Table of Contents ....3 Introduction .

  • Page 7: Introduction

    With TC’s experience on Digital Delay we found it natural to comply with a product in this category. Therefore TC now proudly presents the D22 broadcast delay unit with Seamless Update, adding no clicks, pitch changes or noise, as one of the main features.

  • Page 8: Front Panel

    Turn on the unit with a single light touch. To turn off the unit you must press and hold down the POWER key approx. 3 seconds until the display reads “D22”. PCMCIA MEMORY CARD Copy presets to/from a standard memory card. CARD TYPES...
  • Page 9 FRONT PANEL REMOTE ENABLE RECALL Use a RS-485 remote for: Recalls/loads RAM or ROM presets. - Recalling presets Preview the presets using the - Delay time adjustments. CONTROL ADJUST wheel and press OK to confirm/enter your choice. Use a momentary pedal for: - Tap Delay time via pulse.

  • Page 10: Rear Panel

    Pin 2 is »hot« on all XLR’s (IEC and AES standards). Unbalanced Input: If you are connecting unbalanced equipment to the D22, pins 1 and 3 must be tied together in the cable ends away from the D22. (see fig. 1) Unbalanced Output: If the D22’s Outputs are connected to unbalanced equipment pin 3 should not be connected.

  • Page 11: Signal Flow Diagram

    SIGNAL FLOW ANALOGIN GAIN Left L Trim ANALOG R Trim INPUTS [balanced] Right DigitalInputSelect DigitalInput [AES] S/PDIF DigitalInput [S/PDIF] The signal path is 24 bit. If the digital gains are set to 0dB and dither is set to off, the full 24 bit digital signal is preserved on the bit level.

  • Page 12: Setups

    Sample Rate: EXT DI (AES/EBU or AES 11). Output: AES or S/PDIF. Dither: Same as the resolution on the device after the D22. Installation note: A House-clock connected to the Wordclock Inputs of the D22 and the downstream devices will enhance jitter rejection.
  • Page 13 DIGITAL If using both the digital Input and the Sync Input, these must be syncronized. The Sample Rate on the device after the D22 must be taken from its digital Input unless the Sync Input on this device is used.

  • Page 14: Basic Operation

    - Overload due to excessive Input level. To compensate reduce the Output level of the sending device or the Input level on the D22. If the meters are set up to indicate the Output level, you might not be aware of an Input clipping. The Overflow LED will bring your attention to this problem.
  • Page 15 The Bypass is a true 24 bit type. RECALL Press the RECALL key to enter the Recall display, if you are not already there. The Recall display is the homepage of the D22. Please see the explanation of the Recall display on page 14. STORE Press the STORE key to enter the Store page.

  • Page 16: Recall

    The tap mode is setup in the Utility menu. (Please see page 17). Instant (destructive): When Instant mode is selected the TAP key LED will be red. Tap the desired Delay time and the D22 will instantly update the Delay time. Preview (non-destructive): When Preview mode is selected the TAP key LED will be green.

  • Page 17: Locked Mode

    RECALL Fader By connecting a TC Master Fader to the External Control In, on the rear panel you are able to remote control the digital Output fade. When the fader pot is moved the Recall display will instantly show you the fader position in the lower half. When the fader has not been moved for approx.

  • Page 18: Store

    OK key. Using a Memory card Insert the card. The D22 will now autodetect your card and you are able to dump the entire RAM bank to the card for backup. The card will automatically be formatted the first time you save or dump information to the card.

  • Page 19: I/O - Setup

    When AES/EBU is selected the D22 will send out its own professional set of status bits, meaning that any incoming ID will be lost. However, in order to take full advantage of the D22’s 24 bit resolution you should select AES/EBU to make sure that the receiving device after the D22 will accept all 24 bits.

  • Page 20: Analog Out

    Fine Out Right : -2 to 0dB in 0.1 increments Please note that setting the Analog Out parameter to e.g. +18dBu means that 0dBFS on the D22 Output is the equivalent of +18dBu on your mixing console’s Input. Digital I/O...

  • Page 21: Tap Delay

    UTILITY Basic operation - Use the CURSOR keys to select parameter. - Use the ADJUST wheel to change values. Display Viewing Angle Adjust for best contrast on the LCD display. _____________________________________________________ Time Resolution Unit Frames, fields, milliseconds, meters or feet. (1 field is 1/2 frame) Format 24fps, 25fps, 29.97fps, 30DF or 30fps.

  • Page 22: Utility

    UTILITY RS485 CTRL. Remote control of Preset change, Delay time and Bypass is implemented in the D22 by using a RS485 controller. All remote control capabilities are enabled/disabled by the REMOTE key. All displays and key states are updated according to incoming remote control info, i.e.

  • Page 23: Appendix

    - You are using Analog Inputs, but the Input selector in the I/O menu is set to Digital in. - The Analog Input level is set too low. No sound through the D22. - You are using Analog Inputs, but the Input selector in the I/O menu is set to Digital in.

  • Page 24: Technical Specifications

    APPENDIX - Technical specifications Digital Inputs and Outputs Connectors: XLR (AES/EBU), RCA Phono (S/PDIF) Formats: AES/EBU (24 bit), S/PDIF(24 bit), EIAJ CP-340, IEC 958 Output Dither: HPF TPDF dither 8-24 bit Word Clock Input: BNC, 75 Ohm, 0.6 to 10 Vpp Sample Rates: 32 kHz, 44.1 kHz, 48 kHz Processing Delay:...

  • Page 25: Self Test

    Power off to exit test. Analog I/O test Select analog I/O test by pressing OK Connect a D22 analog Output to a D22 analog Input and press OK. Use a balanced cable. PPM must show -12 dB to pass test.

  • Page 26: Glossary

    APPENDIX - Glossary AES/EBU Professional digital In/Out standard, using balanced XLR cables. The AES/EBU format outputs 24 bit. S/PDIF Consumer digital In/Out standard, using coaxial phono-type cables. This format can generally output 20 bit. TC products outputs all 24 bits on S/PDIF. Tos-link Also called optical S/PDIF.

  • Page 27: Soldering Instructions

    APPENDIX Soldering instructions MIDI Cable DIN CONNECTOR 5POLE - MALE 45 degrees NOTE! On TC units with RS485 interface pins 1 and 3 on the DIN connectors are reserved for RS485 connection. Therefore, if you are connecting the unit to other equipment that use these pins, please make sure to use 3-wire standard MIDI type cable (not a five wire MIDI-PLUS type). Pedal Cable JACK PLUG Mono - male...

  • Page 28: Soldering Instructions

    APPENDIX Soldering instructions XLR - XLR Pin 1 - Pin 1 (Ground) Pin 2 - Pin 2 (Hot) Pin 3 - Pin 3 (Cold) Jack (unbalanced) - XLR - Output Sleeve - Pin 1 (Ground) Tip - Pin 2 (Hot) Jack (unbalanced) - XLR - Input Sleeve - Pin 1 (Ground) Tip - Pin 2 (Hot)

  • Page 29: Frequently Asked Questions

    Question: What is the data length of the delay time? Answer: The delay is always a decimal number related to the given delay unit of the D22. It is not posible to change delay unit via the RS-485, so you must set this manually before you send the command lines.

  • Page 30: Optional Master Fader

    Why make a Master Fader? The Master Fader makes it possible to perform a manual fade on the very Output of the D22 enabling you to keep your fade in the Digital domain to ensure perfect tracking of left and right.
