Taylor 2750 Instruction Manual

How to Read Rainfall Data Transmission Collision
1. Your Taylor® Wireless Rain Gauge will track the amount of daily, Signals from other household devices, such as doorbells, home
weekly, and monthly rainfall. It will also report total accumulated security systems and entry controls, may temporarily interfere with the
rainfall, which is the total rainfall recorded since the unit was last rain gauge transmissions. This is normal and does not affect the
reset to zero. Press the "-" button to toggle between the different
general performance of this product. The transmission will resume
displays.
once the interference recedes.
Trouble-Shooting
2. A signal is sent from the transmitter to the receiver every 30
seconds when it is raining. If there is no rainfall, a signal will Disconnected Signals
transmit every 2½ minutes. This signal will update the data on the If the receiver unit does not receive a transmission for 1 hour, the
receiver if any changes have occurred. display will show dashes. To correct this problem:
3. As rainfall occurs, the Daily Rainfall Display will show the amount 1. Check that the rain gauge is properly positioned, within a 100'
of rain accumulated throughout the day. When the clock reaches transmission range.
midnight, the display for daily rainfall will automatically reset to
2. Check to make sure the transmission path is clear of obstacles and
zero.
interference.
4. For the first day of rainfall, the Daily, Weekly, Monthly, and Total
3. If new batteries are faulty on the initial installation, install fresh
rainfall accumulation will be the same. As additional rainfall
batteries, following the steps in the Battery Installation section of
occurs throughout the week/month, the unit will add the rainfall
this manual.
amounts together for a weekly/monthly/ total rainfall
accumulation.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
5. The Weekly rainfall total accumulates from Sunday to Saturday.
Rules. These limits are designed to provide reasonable protection
When the clock reaches 12:00am (midnight) every Sunday, the
against harmful interference in a residential installation. This
weekly total rainfall will automatically reset to zero.
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
6. The Monthly rainfall total accumulates from the first day of the instructions, may cause harmful interference to radio
calendar month to the last day. When the clock reaches 12:00am communications. However, there is no guarantee that interference
(midnight) on the first day of the month, the monthly total rainfall will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
will automatically reset to zero.
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
7. Total Rainfall accumulates from the first day the rain gauge is put
following measures:
into use. The receiver will continue to record Total Rainfall until the
– Reorient or relocate the rain gauge equipment.
user clears the memory or the batteries are replaced.
– Increase the distance between the radio/television
equipment and rain gauge receiver.
8. To manually reset either the Daily, Weekly, Monthly, or Total Rainfall
accumulations, first press the "-" button to select the memory to be
Modifications not authorized by the manufacturer may void
cleared. Press the "+" key. The data will reset to zero.
user's authority to operate this device.
Main Features & How to Access Functions

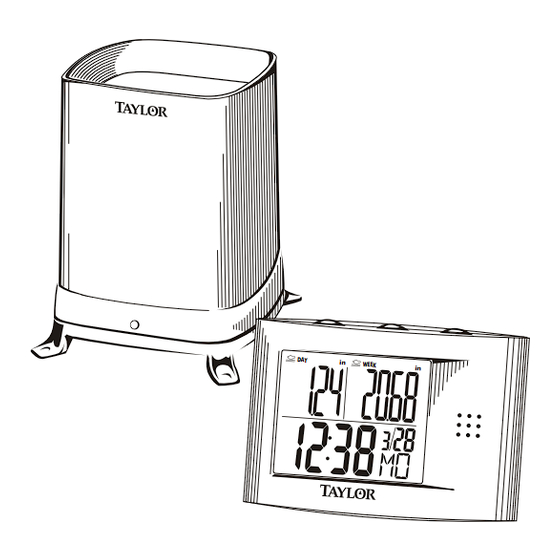

Congratulations on your purchase of the Taylor® Digital Wireless Rain
Gauge. This state-of-the-art measurement instrument is engineered 1. LCD Display
and designed to meet the highest quality standards...to assure you Line 1 Daily Rainfall Display. Reports today's total rainfall.
uncompromising accuracy and consistently dependable, convenient Line 2 Weekly/Monthly/Total Accumulated Rainfall Display. Shows
performance. In order to optimize its function, please read this either the weekly, monthly, or total accumulated rainfall. The
instruction manual carefully before use...and keep it handy for future "WEEK" icon appears above the rainfall digits when the
reference.
receiver is in week mode. The "MONTH" icon appears
during monthly mode. If no icon is visible, the total
Description of Parts
accumulated rainfall is displayed. Press "MODE" to toggle
between the different displays.
Receiver Unit 3
Line 3 Clock and Calendar display. Shows the current time, date,
and day of the week.
2
4
2. MODE Button
Enter Time Setting mode.
1
3. " + " Button
Advances clock/calendar settings during Time Setting mode.
Resets Daily, Weekly, Monthly, or Total accumulated rainfall data.
Line 1 Line 2
Cancels the registration between the receiver and transmitter and
registers a new signal between the units.
4. '" - " Button
Line 3 Reverses clock/calendar settings during Time Setting mode.
Toggles between Weekly, Monthly, and Total accumulated rainfall.
Switches between inch and millimeter units of measurement.
5. Battery Compartment
The receiver unit requires 2 AA alkaline batteries (not included).
See Battery Installation section of this manual.
7
6. Table Stand
Pull the bottom of stand out from the housing for stable placement
5
of the unit on a flat surface.
7. Wall Mount
The back of the receiver has a recessed key hole to secure the unit
to a wall.
6
Precautions
Important: Though the transmitter is weather- and frost-
This Digital Wireless Rain Gauge is engineered to give you years of resistant, it should never be submerged in water or left
satisfactory service if you handle it carefully, following these guidelines:
outside during snowy weather. Also please note the
transmitter should not be left outdoors in temperatures at
1. The receiver is intended for indoor use only. It is not sealed against
or below -4°F (-20°C). If the temperature drops to this level,
moisture and could be damaged if used outdoors.
move the transmitter to an indoor area. Both the
2. Do not immerse the receiver unit in water. If you spill liquid on it, transmitter and the receiver unit should be kept at
dry it immediately with a soft, lint-free cloth.
temperatures between -4°F (-20°C) to 140°F (60°C). Extreme
temperatures outside this range can permanently damage
3. The transmitter is weather-resistant but not waterproof. Do not
internal circuitry.
immerse the rain gauge in water or allow snow to accumulate in
it. If this accidentally occurs, dry it immediately with a soft, lint-free
cloth.
4. Though the transmitter is frost-resistant, it should not be left
outdoors in snow or at temperatures at or below -4°F (-20°C). If
Specifications
the temperature falls below this point or if snow accumulates,
remove the transmitter to an indoor area. Otherwise, permanent Range of rainfall measurement:
damage to the rain gauge's internal circuits may occur. Daily: 0-39.33 inches (0-999 millimeters)
Weekly: 0-393.66 inches (0-9999 millimeters)
5. Do not clean either unit with abrasive or corrosive materials. This
Monthly: 0-393.66 inches (0-9999 millimeters)
may scratch plastic parts and corrode electronic circuits.
Resolution: 0.04 inches (1 millimeter)
6. Do not subject either unit to excessive force, shock, dust,
Accuracy: + / - 3%
temperature or humidity. This may result in malfunction, shorter
electronic life span, damaged batteries or distorted parts. This
equipment contains no user-serviceable parts. Do not tamper with
Transmission: 100 feet (30 meters) in an open area
either unit's internal components. Doing so will invalidate the
Transmissions sent every 30 seconds during rainfall,
warranty on this product and may cause damage.
otherwise sent every 2½ minutes
7. Do not mix old and new batteries. Remove the batteries if this
Clock: Quartz precisions +/- 30 seconds per month
product will not be used for a long time.
Battery Life: 1 year (alkaline batteries recommended)
8. Always refer to this instruction manual before operating this
product.
Remote Rain Gauge Transmitter
Battery Compartment

Rain Gauge

The transmitter requires 2 AA alkaline Net
batteries (not included). See Battery
Installation section of this manual.
Rain Gauge Net
A protective stainless steel net is placed
on top of the rain gauge to guard against rocks,
leafs, and other debris collecting in the rain
gauge. The net may be removed for cleaning by
pulling up on the ring at the side of the net.
Important:
The rain gauge should not be left outdoors in
temperatures at or below -4°F (-20°C) or in snowy
weather. If the temperature drops to this level or it begins to
snow, remove the rain gauge to an indoor area.
Battery Installation
For the initial installation, insert the batteries into the receiver unit first,
then the transmitter. Place the receiver and transmitter gauge next to
each other during battery installation for best signal initialization.
Receiver:
1. Lift off the battery compartment cover located on the back of the
unit.
2. Insert 2 AA alkaline batteries as indicated by the polarity symbols
marked inside the battery compartment.
3. After installing the batteries, the display will show flashing dashes.
Once the rain gauge's batteries are installed and the unit
successfully transmits a signal, the receiver will show zeros.
4. Replace the battery compartment cover.
One Year Warranty
This product is warranted against defects in materials or
workmanship for one (1) year from the date of original purchase. It
does not cover damages or wear resulting from accident, misuse,
abuse, commercial use, or unauthorized adjustment and/or repair.
Should this product require service (or replacement at our option)
while under warranty, do not return to retailer. Please pack the item
carefully and return it prepaid, along with a store receipt showing
date of purchase and a note explaining reason for return to:
Leading the Way in Accuracy™
Taylor Precision Products
2220 Entrada Del Sol
Las Cruces, New Mexico 88001
www.taylorusa.com
There are no express warranties except as listed above. This warranty
gives you specific legal rights, and you may have other rights which
vary from state to state.
Made to our exact specifications in China.
©2004 Taylor Precision Group, LLC and its affiliated companies, all rights
reserved. Taylor® is a registered trademark and Leading the Way in Accuracy™
is a trademark of Taylor Precision Products Group, LLC and its affiliated
companies. All rights reserved.
Instruction Manual
Setting Up The Rain Gauge Transmitter
Important: When the temperature falls below freezing, the
Figure: A
batteries of outdoor units may freeze, lowering their voltage
supply and effective range. Use Lithium batteries to insure
operation below 10°F (-12°C).
How to Set and Use Clock & Calendar Functions
Unscrew the
1. Hold the MODE button for 3 seconds to enter Time Setting mode.
2 screws then
2. Press "+" or "-" buttons to select 12 or 24 hour clock mode.
lift the top
Press MODE to enter.
casing off
3. Press "+" or "-" buttons to set the year. Hold down the buttons to
advance digits quickly. Press MODE to enter.
4. Continue to set the month, day/date, hour, and minutes by
pressing "+" or "-" and then pressing MODE to enter the data.
Hold down the buttons to advance digits quickly.
5. After selecting the minutes and pressing MODE, the clock setup
will be complete.
6. If no buttons are pressed within 5 seconds, the clock will revert to
its original setting
How To Set Up and Use Your Wireless Rain Gauge
1. Follow Battery Installation and Clock/Calendar Set Up as directed
above.
Use 2 'AA' batteries
2. Place the receiver unit as close as possible to the transmitter (they
must be within 100 feet of each other). This will ensure easy
Be sure to
synchronization between the transmission and reception of signals
remove the
as you set up your wireless rain gauge.
cardboard 3. The receiver unit should display zeros after proper battery
installation and registration signal initialization. If the receiver still
insert from
shows dashes, reinstall the receiver's batteries. See Battery
under the
Installation section for detailed instructions.
rain cup
Note: The effective transmission range of the rain gauge is 100 feet.
before using
The effective range is vastly affected by building materials, physical
obstructions (tress, sheds, fountains, etc), and where the receiver
and transmitter units are positioned. Try various set ups for the
best result. Shorten the distance between the receiver and
transmitter units when necessary.
Keep the transmitter at least 3 feet from any obstructions
which may affect rain collection. For instance, do not place
the transmitter gauge under a tree, as water dripping from
Unscrew
leaves into the rain cup will overstate actual rainfall.
the 4 screws from
4. The receiver unit is factory set to display total rainfall in inches. To
the battery compartment
switch measurement to millimeters, press and hold the "-" button
cover
for 3 seconds. The display will switch to millimeters.
2750
Digital Wireless
Rain Gauge
Indoor Thermometer & Clock
with Remote Rain Gauge
