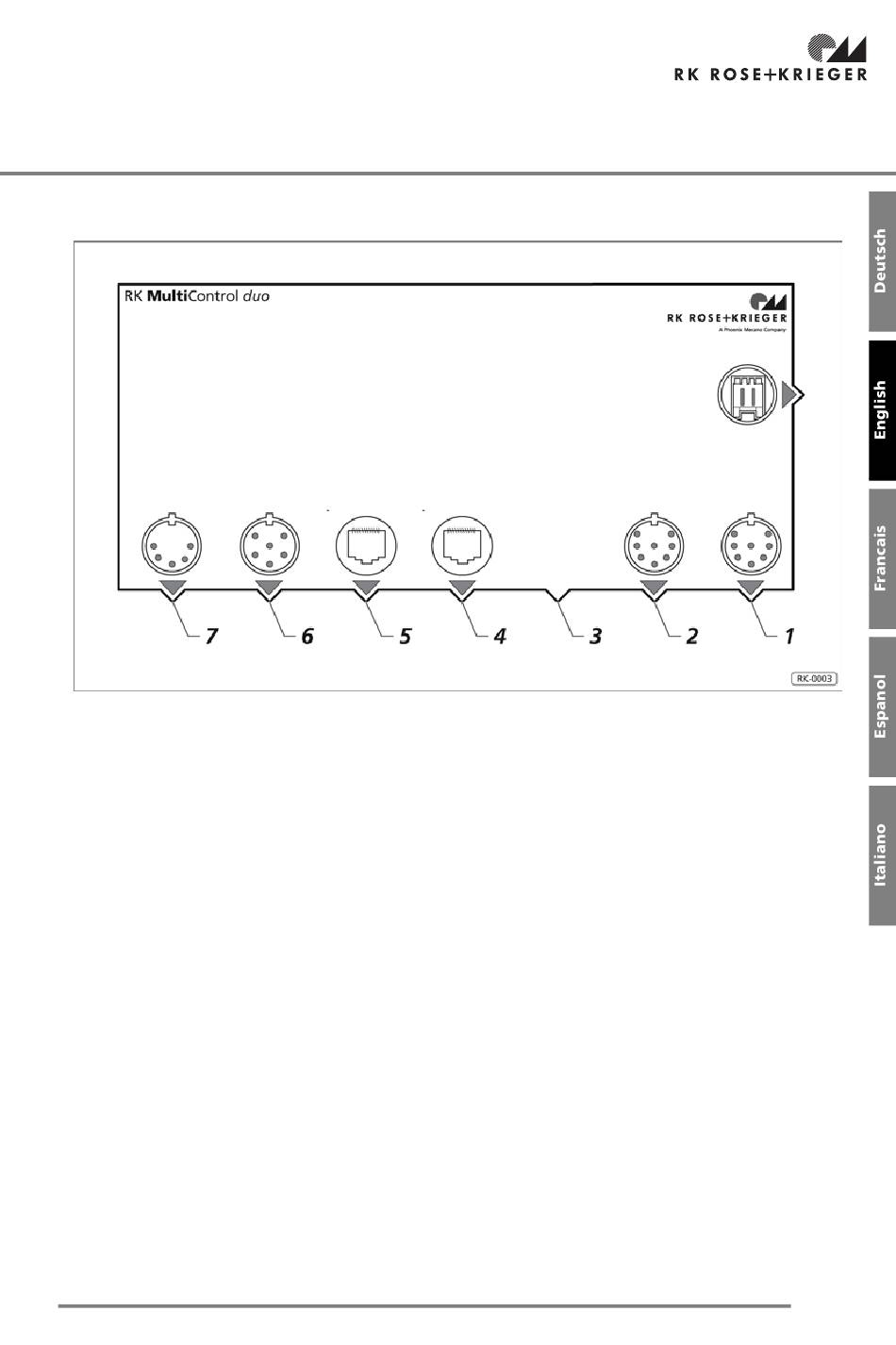

7.2.2 Pin assignment of the RKMultiControl duo
parallel hand
switch
1 Socket for the first drive
2 Socket for the second drive
3 spare
4 Connection socket for lead or plug
5 Connection socket for lead or plug
6 Socket for a serial hand switch (6-pin DIN plug to DIN 45322)
(6-key hand switch or base station for the 8-key wireless hand switch)
7 Socket for a parallel hand switch (5-pin DIN plug to DIN 41524)
(2-key hand switch)
serial hand Synchro inter-
switch face
Synchro inter-
face
7. Working life
Battery socket
(optional)
Drive 2 Drive 1
