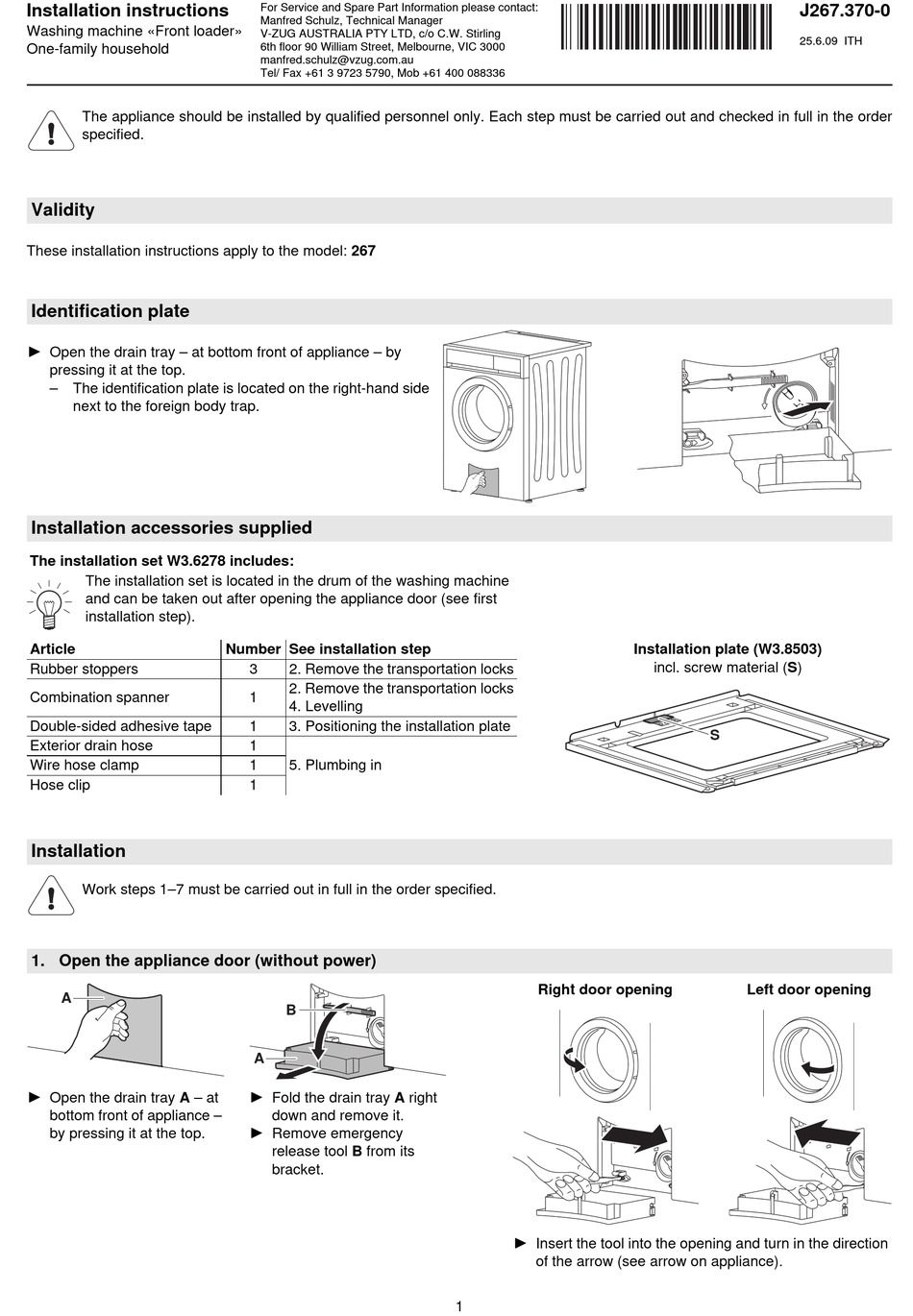

Installation instructions

Washing machine «Front loader»
One-family household
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.
Validity
These installation instructions apply to the model: 267
Identification plate
A
Open the drain tray – at bottom front of appliance – by
pressing it at the top.
– The identification plate is located on the right-hand side
next to the foreign body trap.

Installation accessories supplied

The installation set W3.6278 includes:
The installation set is located in the drum of the washing machine
and can be taken out after opening the appliance door (see first
installation step).
Article
Rubber stoppers
Combination spanner
Double-sided adhesive tape
Exterior drain hose
Wire hose clamp
Hose clip
Installation
Work steps 1–7 must be carried out in full in the order specified.
1. Open the appliance door (without power)
A
A
Open the drain tray A – at
bottom front of appliance –
by pressing it at the top.
For Service and Spare Part Information please contact:
Manfred Schulz, Technical Manager
V-ZUG AUSTRALIA PTY LTD, c/o C.W. Stirling
6th floor 90 William Street, Melbourne, VIC 3000
manfred.schulz@vzug.com.au
Tel/ Fax +61 3 9723 5790, Mob +61 400 088336
Number See installation step
3 2. Remove the transportation locks
2. Remove the transportation locks
1
4. Levelling
1 3. Positioning the installation plate
1
1 5. Plumbing in
1
B
A
A
Fold the drain tray A right
down and remove it.
A
Remove emergency
release tool B from its
bracket.
Right door opening
A
Insert the tool into the opening and turn in the direction
of the arrow (see arrow on appliance).
1
J267.370-0
25.6.09 ITH
Installation plate (W3.8503)
incl. screw material (S)
S
Left door opening
