Thank you for choosing our product.
To ensure the best performance of this product, please read this user guide fully and carefully before
using it and keep this manual together with the product for future reference as needed.
4K@60/HDCP 2.2 Wall-plate HDBaseT Transmitter
HDC-TH100WPJ
IDK Corporation
<User Guide>
Ver.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-TH100WPJ and is the answer not in the manual?

Questions and answers

Related Manuals for IDK HDC-TH100WPJ

Summary of Contents for IDK HDC-TH100WPJ

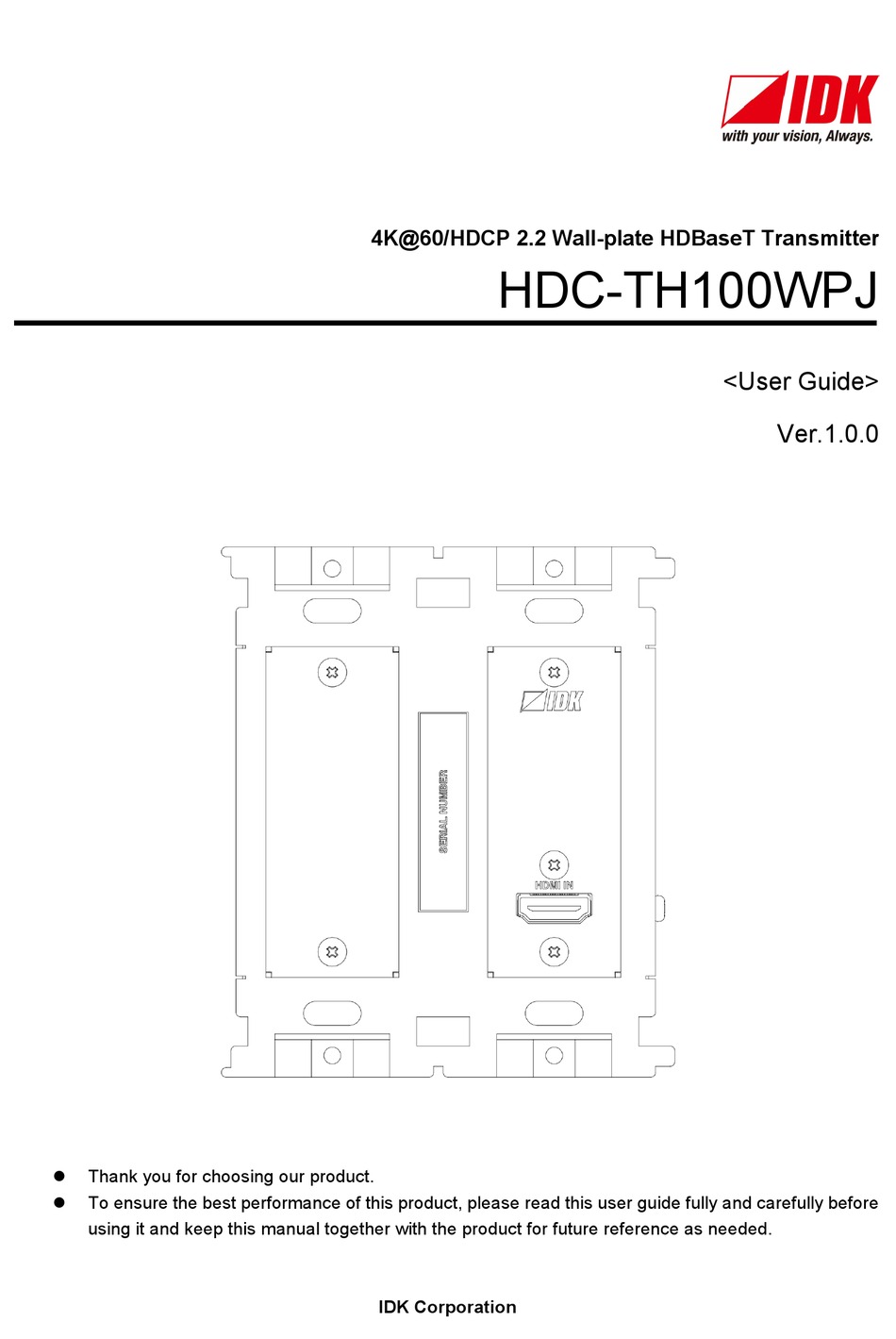

  • Page 1 4K@60/HDCP 2.2 Wall-plate HDBaseT Transmitter HDC-TH100WPJ <User Guide> Ver.1.0.0 Thank you for choosing our product.  To ensure the best performance of this product, please read this user guide fully and carefully before  using it and keep this manual together with the product for future reference as needed.
  • Page 2 HDC-TH100WPJ User Guide Trademarks  Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association.  ETHERNET is a registered trademark of Fuji Xerox Co., Ltd.  HDBaseT™ and the HDBaseT Alliance Logo are trademarks of the HDBaseT Alliance.  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 3  Some information contained in this User guide such as exact product appearance, diagrams, menu operations, communication commands, and so on may differ depending on the product version.  This User guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...

  • Page 4: Safety Instructions

    HDC-TH100WPJ User Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 ● Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
  • Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ● Unplug immediately if water or other objects are directed inside.
  • Page 7 HDC-TH100WPJ User Guide Caution ■ For installing and connecting products: ● Do not place the product in a location where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.

  • Page 8: Table Of Contents

    HDC-TH100WPJ User Guide Table of Contents Included Items ............................9 Product outline ............................10 Features ..............................10 Panels ..............................11 System configuration example ......................... 13 Precautions .............................. 14 Power supply ............................14 Cable ..............................16 6.2.1 Category cable for extension ...................... 16 6.2.2...

  • Page 9: Included Items

    HDC-TH100WPJ User Guide 1 Included Items Ensure all items below are included in the package. If any items are missing or damaged, please contact IDK. HDC-TH100WPJ HDC-WPC-W: HDC wallplate cover (white) One (1) HDC-TH100WPJ HDC wallplate cover (white) originally attached to HDC-TH100WPJ.

  • Page 10: Product Outline

    HDC-TH100WPJ User Guide 2 Product outline The HDC-TH100WPJ (hereafter referred to as “HDC”) is a wall-mountable transmitter for a long-haul transmission of HDMI signal over one single category cable. The image quality will not be deteriorated, since video signal is transmitted at a resolution up to 4K@60 without compression.

  • Page 11: Panels

    ⑨ ① ⑩ ② ③ Front Rear (In this figure, the left cover is removed.) [Fig. 4.1] HDC-TH100WPJ drawing [Table 4.1] HDC-TH100WPJ features (1/2) Feature Description HDMI input connector Input connector for HDMI signals ① Connect to source devices such as Blu-ray disk players...
  • Page 12 Hole for installing the HDC to a switch box or the like ⑪ Screw hole Hole for attaching a 2-gang decorator wallplate ⑫ Note: For Long reach mode, up to 1080p (24 bit) resolutions are supported when using IDK’s HDBaseT products supporting 328 ft. (100 m).

  • Page 13: System Configuration Example

    *Transmission distances: Up to 328 ft. (100 m) ： 4K@60 Up to 492 ft. (150 m) ：1080p (24 bit) (with Long reach mode, Use IDK’s HDBaseT products supporting 328 ft. (100 m))　 [Fig. 5.1] System configuration with PoH powered Tip: If using the PoH powering function of the MSD-802UHD, set “HDBaseT input power supply”...

  • Page 14: Precautions

    HDC-TH100WPJ User Guide 6 Precautions 6.1 Power supply The HDC can be powered by either of: ・ From a device supporting PoH PSE (IEEE 802.3af) ・ From DC 12 V power supply Note: When using PoH, do not use the DC 12V power supply.
  • Page 15 HDC-TH100WPJ User Guide HDC-TH100WPJ MSD-802UHD [Fig. 6.2] Powered from MSD-802UHD ■ From DC 12 V power supply: Insert a non-energized power cable into the terminal block. Remove the left wallplate cover and connect the terminal block to the DC 12V IN connector.

  • Page 16: Cable

    HDC-TH100WPJ User Guide 6.2 Cable 6.2.1 Category cable for extension To ensure the best performance of category cables, select a correct category cable and connect it correctly. ・ Cat5e UTP/STP and Cat6 UTP/STP can be used, but we recommend CAT.5E HDC cable* for optimal performance.

  • Page 17: Cabling

    HDC-TH100WPJ User Guide [Table 6.1] Transmission distance Noise Category Transmission TMDS clock Recommended cable influence distance Easily Cat5e 164 ft. For 164 ft. (50 m) or longer, ≦ 225 MHz affected (50 m) CAT.5E HDC*, Cat5e STP, and Cat6 UTP/STP cables Cat6 328 ft.

  • Page 18: Installation

    HDC-TH100WPJ User Guide 7 Installation When installing the HDC, observe the following precautions: ・ Ensure the category cable is fixed with a zip tie to protect the connector. ・ Wall thickness: 0.6 in. (15 mm) or thicker ・ When the HDC needs to be installed in an enclosed space or switch box, maintain the following sufficient clearances to provide adequate ventilation: 1 in.

  • Page 19: Switch Box, Bracket, And Wallplate

    HDC-TH100WPJ User Guide 7.1 Switch box, bracket, and wallplate IDK has confirmed that the following switch box, bracket, and wallplate can be mounted to the HDC. ・ DS4912 (Panasonic) ・ DF32221K (Panasonic) ・ WN3997 (Panasonic) ・ WN6006 (Panasonic) ・ WN7606K (Panasonic) ・...

  • Page 20: Replacing Hdc Wallplate Cover

    HDC-TH100WPJ User Guide 7.2 Replacing HDC wallplate cover HDC wallplate cover (white) originally attached to HDC-TH100WPJ. You can replace the white cover with a black one (HDC-WPC-B) using a #1 Phillips screwdriver. [Fig. 7.4] Replacing HDC wallplate cover...

  • Page 21: Product Specification

    The maximum transmission distance is the shorter distance of connected HDBaseT product or sink device’s maximum transmission distance. For Long reach mode, use IDK’s category cable products that supports 328 ft. (100 m), and up to resolutions 1080p (24 bit) or less are supported.

  • Page 22: Dimensions

    HDC-TH100WPJ User Guide 8.1 Dimensions 27.6 [1.1] 87 [3.4] 17 [0.7] 4 [0.2] 87 [3.4] 3 [0.1] 7 [0.3] 1.9 [0.1] 55.2 [2.2] 41.8 [1.6] mm [inch] [Fig. 8.1] Dimensions...

  • Page 23: Troubleshooting

    HDC-TH100WPJ User Guide 9 Troubleshooting In case the HDC does not work correctly, please check the following items first. Also, refer to manuals for connected devices as well, since they may possibly be the cause of the problem. ・ Are the HDC and all devices plugged in and powered on normally? ・...
  • Page 24 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-259-6920 FAX: +81-46-259-6930 Email: info@arvanics.com URL: http://www.arvanics.com Information in this document is subject to change without notice. ©2019 IDK Corporation, all rights reserved. All trademarks mentioned are the property of their respective owners.
