4K@60 and HDCP2.2 supported HDBaseT HDMI Wall-Plate transmitter
Thank you for choosing our product.
To ensure the best performance of this product, please read this User's Guide fully and carefully
before using it and keep this manual together with the product for reference as needed.
HDC-TH100WP
IDK Corporation
<User's Guide>
Ver.1.0.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-TH100WP and is the answer not in the manual?

Questions and answers

Summary of Contents for IDK HDC-TH100WP

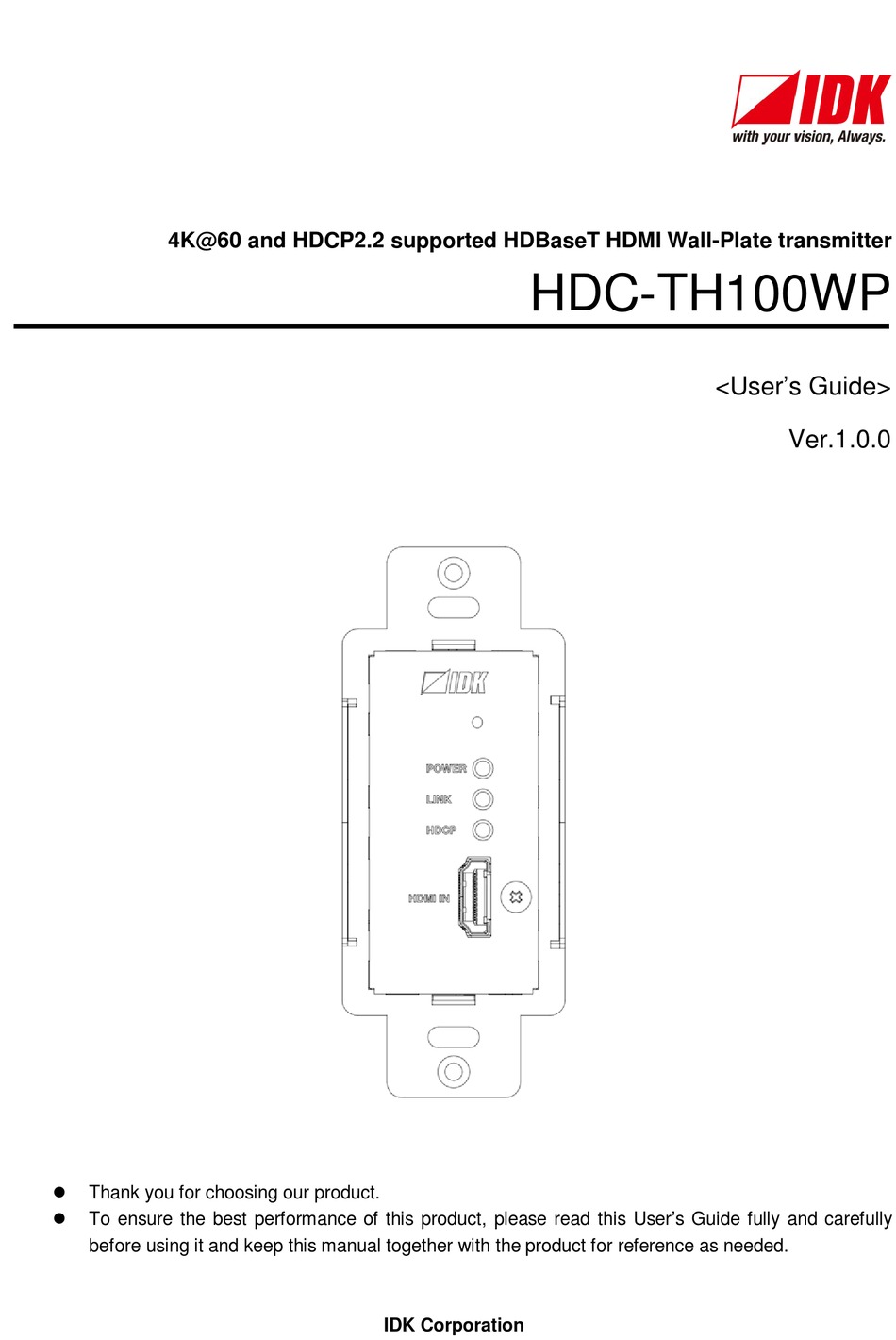

  • Page 1 4K@60 and HDCP2.2 supported HDBaseT HDMI Wall-Plate transmitter HDC-TH100WP <User’s Guide> Ver.1.0.0  Thank you for choosing our product.  To ensure the best performance of this product, please read this User’s Guide fully and carefully before using it and keep this manual together with the product for reference as needed.
  • Page 2 HDC-TH100WP User’s Guide Trademarks  Blu-ray Disc and Blu-ray are trademarks of Blu-ray Disc Association.  ETHERNET is a registered trademark of Fuji Xerox Co., Ltd.  HDBaseT™ and the HDBaseT Alliance Logo are trademarks of the HDBaseT Alliance.  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 3  Some of the contents in this User’s Guide such as appearance diagrams, menu operations, communication commands, and so on may differ depending on the version of the product.  This User’s Guide is subject to change without notice. You can download the latest version from IDK’s website at: http://www.idkav.com...
  • Page 4: Safety Instructions

    HDC-TH100WP User’s Guide Safety Instructions Read and understand all safety and operating instructions before using this product. Follow all instructions and cautions as detailed in this document. Enforcement Symbol Description Indicates the presence of a hazard that may result in death or serious...
  • Page 5 ●Do not repair, modify or disassemble. Since the product includes circuitry that uses potentially lethal, high voltage levels, disassembly by unauthorized personnel may lead to the risk of fire or electric shock. For internal inspection or repair, contact your IDK Do not representative.
  • Page 6 Unplug If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For maintenance and repair, contact your IDK representative. ●Unplug immediately if water or other objects are directed inside. If you continue to use the product under these conditions, it may increase the risk of electrical shock or fire. For...
  • Page 7 HDC-TH100WP User’s Guide Caution ■ For installing and connecting products: ●Do not place the product in any place where it will be subjected to high temperatures. If the product is subjected to direct sunlight or high temperatures while under operation, it may affect the product’s performance and reliability and may increase the risk of fire.
  • Page 8: Table Of Contents

    HDC-TH100WP User’s Guide Table of Contents Included Items ............................9 Product outline ............................10 Features ..............................10 Panels ..............................11 System configuration example ......................13 Precautions ............................14 Power supply ..........................14 Cable .............................16 6.2.1 Twisted pair cable for extension ....................16 6.2.2 Cabling ...........................17 Installation ............................18 Switch box, bracket, and wallplate ....................19...
  • Page 9: Included Items

    HDC-TH100WP User’s Guide 1 Included Items Ensure all items below are included in the package. If any items are missing or damaged, please contact IDK. One (1) HDC-TH100WP One (1) 2-pin terminal block Two (2) screws for installation [Fig. 1.1] Included items...
  • Page 10: Product Outline

    HDC-TH100WP User’s Guide 2 Product outline The HDC-TH100WP (hereafter referred to as “HDC”) is a HDMI wallplate transmitter designed for a long-haul transmission over a twisted pair cable. Input video signal is converted to HDBaseT signal and transmitted up to 328 ft. (100 m).
  • Page 11: Panels

    ③ ④ ⑤ ⑨ ⑦ ⑥ ② ① ⑧ Front Rear [Fig. 4.1] HDC-TH100WP drawing [Table 4.1] Name and description (1/2) Name Description ① HDMI input connector Input connector for HDMI signals Connect to source devices such as Blu-ray disk players.
  • Page 12 Hole for installing the HDC to a switch box or the like. Use the supplied screws. ⑪ Screw hole Hole for attaching a Decora plate. Note: For Long reach mode, up to 1080p (24 bit) resolutions are supported when using IDK’s HDBaseT products supporting 328 ft. (100 m).
  • Page 13: System Configuration Example

    HDMI / DVI MSD-802UHD *Maximum extension distance: Monitor     100 m : 4K@60 150 m :1080p (24 bit) (with Long reach mode, Use IDK’s HDBaseT products supporting 328 ft. (100 m))      [Fig. 5.1] System configuration with PoH powered Tip: If using the PoH powering function of the MSD-802UHD, set “HDBaseT input power supply”...
  • Page 14: Precautions

    HDC-TH100WP User’s Guide 6 Precautions 6.1 Power supply The HDC can be powered by either of: ・ From a device supporting PoH PSE (IEEE 802.3af) ・ From DC 12 V power supply Note: When using PoH, do not use the DC 12V power supply.
  • Page 15 HDC-TH100WP User’s Guide MSD-802UHD HDC-TH100WP [Fig. 6.2] Powered from MSD-802UHD ■ From DC 12 V power supply: Insert the power cable into the terminal block and connect the terminal block to the DC 12V IN connector. AWG28 to AWG16 conductor gauge is recommended. The recommended wire strip length is 0.28 in. (7 mm).
  • Page 16: Cable

    HDC-TH100WP User’s Guide 6.2 Cable 6.2.1 Twisted pair cable for extension To ensure the best performance of twisted pair cables, select a correct twisted pair cable and connect it correctly. ・ Cat5e UTP/STP and Cat6 UTP/STP can be used, but we recommend CAT.5E HDC cable* for optimal performance.
  • Page 17: Cabling

    HDC-TH100WP User’s Guide [Table 6.1] Twisted pair cable and extension distance Noise Category Extension TMDS clock Remarks influence distance ≦ 225 MHz Easily Cat5e 164 ft. For 164 ft. (50 m) or longer, affected (50 m) Cat5e STP, Cat6 UTP / STP, CAT.5E HDC* are...
  • Page 18: Installation

    HDC-TH100WP User’s Guide 7 Installation When installing the HDC, observe the following precautions: ・Wall thickness: 0.6 in. (15 mm) or thicker ・When the HDC needs to be installed in an enclosed space or switch box, maintain the following sufficient clearances to provide adequate ventilation: 1.6 in. (40 mm) or more around the HDC or switch box;...
  • Page 19: Switch Box, Bracket, And Wallplate

    HDC-TH100WP User’s Guide 7.1 Switch box, bracket, and wallplate IDK has confirmed that the following switch box, bracket, and wallplate can be mounted to the HDC. ・Eaton’s Crouse-Hinds TP218 1-Gang Steel Switch Box, 2-1/2 in. Deep ・Eaton’s Crouse-Hinds TP252 1-Gang Steel Switch Box, 3-1/2 in. Deep ・Arlington Industries LV1 Low Voltage Mounting Bracket...
  • Page 20: Product Specification

    The maximum extension distance is the shorter distance of connected HDBaseT product or sink device’s maximum extension distance. For Long reach mode, use IDK’s twisted pair cable products that supports 328 ft. (100 m), and up to resolutions 1080p (24 bit) or less are supported.
  • Page 21: Dimensions

    HDC-TH100WP User’s Guide 8.1 Dimensions mm [inch] [Fig. 8.1] Dimensions...
  • Page 22: Troubleshooting

    HDC-TH100WP User’s Guide 9 Troubleshooting In case the HDC does not work correctly, please check the following items first. Also, refer to instruction manuals of devices connected to the HDC. ・Are the HDC and all devices plugged in and powered on normally? ・Are cables connected correctly?
  • Page 23 HDC-TH100WP User’s Guide User’s Guide of HDC-TH100WP Ver.1.0.0 Issued on: 19 June 2018 Headquarters IDK Corporation 7-9-1 Chuo, Yamato-shi, Kanagawa-pref. 242-0021 JAPAN TEL: +81-46-200-0764 FAX: +81-46-200-0765 Email: idk_eng@idk.co.jp URL: http://www.idkav.com IDK America Inc. 72 Grays Bridge Road Suite 1-C, Brookfield, CT 06804 TEL: +1-203-204-2445 Email: sales@idkav.com URL:...
