GLS 1401; EX; UK

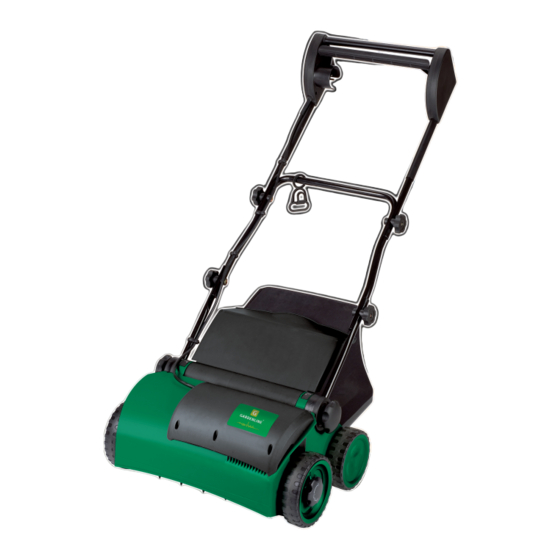

Electric Scarifier
Artikel-Nr.: 3420465
Ident-Nr.:
01017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLS1401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardenline GLS1401

Summary of Contents for Gardenline GLS1401

  • Page 1 GLS 1401; EX; UK Artikel-Nr.: 3420465 Electric Scarifier Ident-Nr.: 01017...

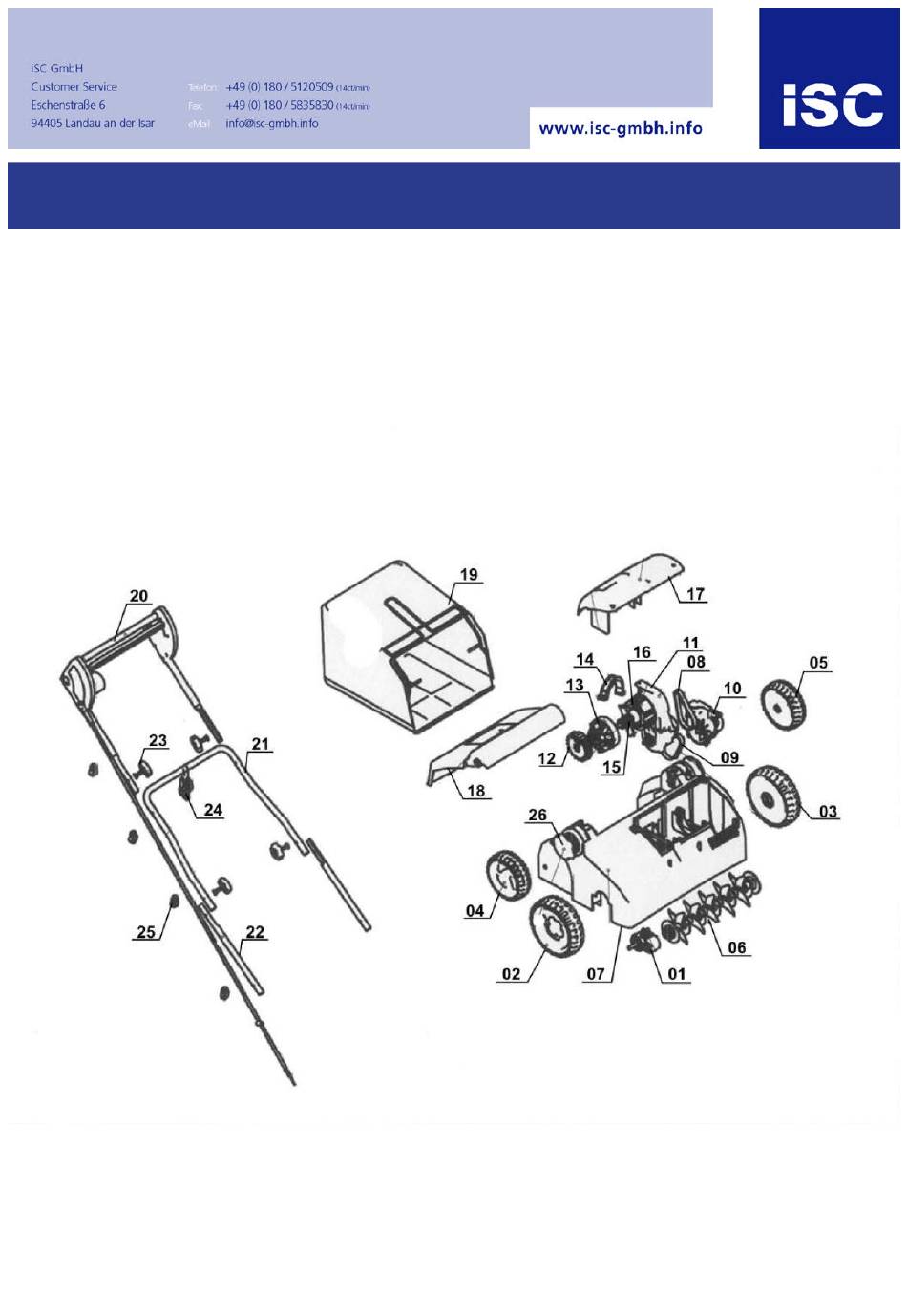

  • Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 342045001001 Small feet 342045001002 Front wheel Assembly 342045001003 Front wheel Assembly 342045001004 Rear wheel 342045001005 Rear wheel 342045001006 claw roll Aufnahme 12 mm 342045001007 Main housing 342045001008 Belt 6PJ309 342045001009 Belt 6PJ299 342045001010 Gear case cover Getriebegehäuse 342045001011 Gear case 342045001012...
  • Page 3 WIDTH 33cm 3/7/9mm ADJUSTABLE HEIGHT SETTING Now you have purchased a Gardenline® product you can rest assured in the knowledge that as well as your 3 year parts and labour warranty you have the added peace of mind of dedicated helplines.

  • Page 4: Table Of Contents

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 2 Contents Introduction General Information and Safety Instructions Assembly and Parts List Getting Started Features Instructions FAQ´s Other Useful Information Packaging The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

  • Page 5: Introduction

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 3 Introduction Congratulations on choosing to buy a Gardenline® product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of Europe’s leading manufacturers.

  • Page 6: Safety Instructions

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 4 Safety Instructions When using equipment, a few safety precautions must be observed to avoid injuries and damage: Read the operating instructions carefully and comply with them. It is important to consult these instructions in order to acquaint yourself with the unit, its proper use and safety regulations.
  • Page 7 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 5 2 Always disconnect the power cable before carrying out any checks, maintenance or repairs. 3 The person operating the scarifier is liable for any damages sustained by third parties within the machines´s working radius as a result of its use. 4 Work only in broad daylight or with suitable artificial lighting.
  • Page 8 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 6 may be using to operate the scarifier. Keep power cables away from the cutting unit. 13 Always wear sturdy, non-slip footwear and long trousers while scarifying. Never scarify in bare feet or when wearing light sandals. 14 Always use the scarifier with the ejector flap closed, or with grass bag.
  • Page 9 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 7 24 The power cables used are not to be of a lighter duty class than light rubber-insulated H07RN-F in accordance with DIN 57282/VDE 0282 and they must have a cross section of at least 1.5 mm 2. The connection must be splash-proof.
  • Page 10 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 8 31 Be particularly careful when you change direction on a slope. 32 Be particularly careful when you turn the scarifier around or pull it toward yourself. 33 Stop the scarifier whenever it has to be lifted for transporting over areas other than lawns and whenever it has to be moved from or to the area you want to scarify.
  • Page 11 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 9 41 Switch off the motor: before you try to remove any obstructions or blockages, before performing any cleaning, checking or adjustment work to the scarifier, after running over an obstruction. 42 If the machine should start to vibrate unusually, it must be checked immediately.
  • Page 12 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 10 Description of the warning logos Important! Read the directions for use before operating the tool. Keep other persons (and animals) away from the danger zone. Wear hearing and eye protection. Sharp work tools - Do not cut your fingers or toes! Switch off the device and pull the power plug before engaging in any maintenance/ cleaning work or if the cable is tangled or...

  • Page 13: Assembly And Parts List

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 11 Assembly and Parts List Layout and items supplied ON/OFF switch Safety lock-off Connector Plug Cable strain-relief clamp Top push bar Bottom push bar Push bar bracket Scarifying depth Grass basket 10. Ejector flap Frame parts for grass basket 12.
  • Page 14 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 12 HELPLINE No. UK / N.IRELAND 0151 649 1500 REP. IRELAND HELPLINE NO 189 094 6244 Model Number: 6396...
  • Page 15 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 13 Assembling the equipment The equipment is delivered unassembled. The grass basket and the complete push bar must be assembled and mounted before using the equipment. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the equipment.
  • Page 16 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 14 to open and shut the ejector flap (Fig. 9/Item A). Important! Please ensure that the ejector flap can be opened and closed easily! Adjusting the handlebar height (see Fig. 17) Loosen the star screw (Fig. 17/Item 1) on both sides of the scarifier by turning several revolutions.
  • Page 17 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:52 Uhr Seite 15 Important! Before you ever hook the grass basket to the scarifier you must ensure that the motor is switched off and the cutting unit is not rotating. HELPLINE No. UK / N.IRELAND 0151 649 1500 REP.
  • Page 18 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 16 HELPLINE No. UK / N.IRELAND 0151 649 1500 REP. IRELAND HELPLINE NO 189 094 6244 Model Number: 6396...
  • Page 19 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 17 HELPLINE No. UK / N.IRELAND 0151 649 1500 REP. IRELAND HELPLINE NO 189 094 6244 Model Number: 6396...

  • Page 20: Getting Started

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 18 Getting Started Adjusting the scarifier depth (see Fig. 14) The scarifier depth is adjusted at both front wheels via the adjustment mechanism. For this, pull out the adjusting screw and turn the wheel to the left or right into one of the available positions (0/I/II/III).
  • Page 21 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 19 that the cutting unit is not rotating and that the power supply is disconnected. Important! Never open the ejector flap when the motor is running. A rotating cutting unit can cause injuries. Always fasten the ejector flap carefully. The flap flips back to the “Closed”...

  • Page 22: Features

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 20 Features 2-hand safety switch Cable strain relief Double folding handle for easy storage 28 litre nylon Height collection bag adjustable handlebar Easy height adjustment with 3 working depths 33 cm working width HELPLINE No. UK / N.IRELAND 0151 649 1500 REP.

  • Page 23: Instructions

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 21 Instructions Intended use Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.
  • Page 24 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 22 sheaths pose a lethal hazard, some people still use them. Do not make this mistake! Cables, plugs and socket couplers must meet the following requirements listed below. Power cables used to hook up lawn aerators must have a rubber insulation sheath.
  • Page 25 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 23 Important! Due to the high risk of bodily injury to the user, the equipment may not be used to grind up branch or hedge clippings. Moreover, the equipment may not be used as a power cultivator to level out high areas such as mole hills.

  • Page 26: Faq´s

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 24 FAQ´s Fault Possible causes Rectification Motor does a) No electricity in plug a) Check line and fuse not start b) Cable defective b) Check c) Switch, switch/plug block c) Have machine defective checked by a customer service center d) Connections to motor d) Have machine checked...

  • Page 27: Other Useful Information

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 25 Other Useful Information Tips for proper working It is recommended that you overlap scarifying paths a little. Try to scarify in straight lines for a nice, clean look. Insodoing, the aeration swaths should always overlap each other by a few centimeters in order to avoid bare strips.
  • Page 28 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 26 event that the rotating roller strikes an object, immediately switch off the equipment and wait for the roller to come to a complete stop. Then inspect the condition of the roller. Replace any parts that are damaged (see section 10).
  • Page 29 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 27 At the end of the season, perform a general inspection of the equipment and remove any deposits which may have accumulated. At the start of each season, ensure that you check the condition of the equipment. If repairs are necessary, please contact one of our customer service centers (see address on warranty certificate).

  • Page 30: Technical Data

    Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 28 Technical data Mains voltage: 230V ~ 50Hz Power input: 1400 W Working width: 33 cm Number of blades: Scarifying depth: -3 / 3 / 7 / 9 mm LpA sound pressure level: 81,3 dB(A) Hand/arm vibration ahv: 2,6 m/s2 Sound and vibration were measured in accordance...
  • Page 31 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 29 Konformitätserklärung Hans Einhell AG · Wiesenweg 22 · D-94405 Landau/Isar erklärt folgende Konformität gemäß EU-Richtlinie dichiara la seguente conformità secondo la und Normen für Artikel direttiva UE e le norme per l’articolo declares conformity with the EU Directive attesterer følgende overensstemmelse i and standards marked below for the article henhold til EU-direktiv og standarder for produkt...
  • Page 32 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 30 Disposal and recycling The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic.
  • Page 33 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 31 WARRANTY CERTIFICATE The product described in these instructions comes with a 3 year manufactures warranty covering defects. This 3-year manufactures warranty period begins with the passing of risk or when the customer receives the product. For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions.
  • Page 34 Anleitung_GLS_1401_SPK7:_ 21.11.2007 13:53 Uhr Seite 32 GLS1401 11/2007...
