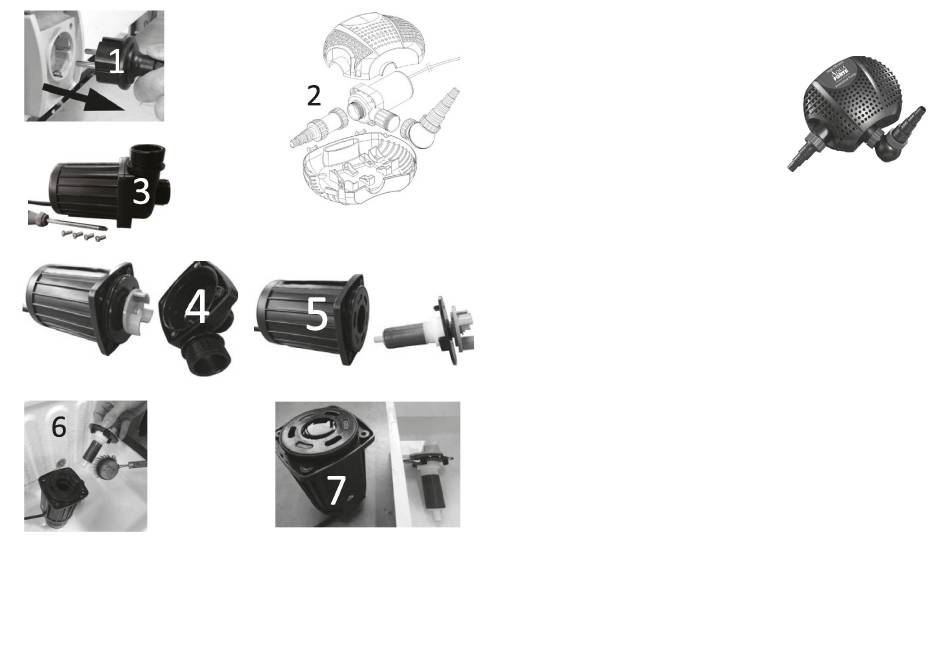

Always remove plug from wall outlet first!
Remove the screws from pump house
Remove pump house
Clean rotor with water and brush
Open pump cover and remove pump
Remove rotor from pump house
Put pump house in a vertical position and fill
with a mild lime scale remover (like cleaning
vinegar). Immerse rotor in a plastic bowl /con-
tainer filled with the same lime scale product
and leave both for 24 hours. After 24 hours
rinse off with water and re-assemble pump.

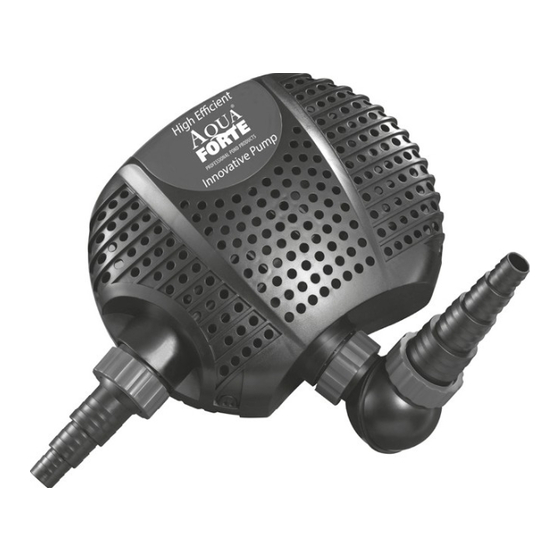

O-Plus Series
AquaForte pumps are carefully inspected and tested to ensure both safety and
operating performance. However,failure to follow the instructions and warn-
ings in this manual may result in pump's damage
and/or serious injury.Be sure to read and save
this manual for future reference.
Benefits of the O-Plus series:
- High performance motor with innovation
electronics
- Energy saving up to 50%.
- Super Quiet Operation.
- Suited for Salt and Fresh Water
- No Copper Components
- With Wear-resistant Ceramic Shaft,Longer Operation Life.
- Automatic power off protection upon no water
- Motor protection if rotor is blocked.
TECHNICAL PARAMETER:
Model
Voltage & frequency
O-Plus 3500
220-240V 50Hz
O-Plus 5000
220-240V 50Hz
O-Plus 6500
220-240V 50Hz
O-Plus 6500 LV
12V 50Hz
O-Plus 8000
220-240V 50Hz
O-Plus 10000
220-240V 50Hz
O-Plus 10000 LV
12V 50Hz
O-Plus 13000
220-240V 50Hz
O-Plus 15000
220-240V 50Hz
O-Plus 18000
220-240V 50Hz
O-Plus 20000
220-240V 50Hz
LIMITED WARRANTY:
This product is guaranteed for a period of 24 months from date of purchase for
material or manufacturing defects.In case it is submitted for repair the pump
must be with the original receipt. Guarantee consists in guaranteed substitution
of defective parts.Guarantee is considered to void in case of improper use,or
damages caused by improper handling or negligence on the part of the buyer.
All equipment must be sent postage paid.
AquaForte is a trademark of Sibo BV, Doornhoek 3950, 5465TC, Veghel, Nederland
Email:info@sibo.nl Website: www.aqua-forte.nl
EN
Watt (W)
Max. Head
25
3.0 meter
40
3.5 meter
50
4.0 meter
50
4.0 meter
70
4.5 meter
85
5.0 meter
90
5.0 meter
110
5.5 meter
135
6.0 meter
170
6.5 meter
200
7.0 meter
