Pfannenberg Ventilador com filtro
Instruções de operação e instalação
BR
Instrucciones de montaje y para uso
E
Installation- and operating instructions
GB
IP54/ NEMA 12 PFB
IP55/ NEMA 12 PFB
Leia e guarde esta instrução
BR
Lea y salve estas instrucciones.
E
Read and save this instruction.
GB
a
4
Geração
IP54/ NEMA 12 PFBA
IP55/ NEMA 12 PFBA
Advertisement
Related Manuals for Pfannenberg IP54/ NEMA 12 PFBA
Summary of Contents for Pfannenberg IP54/ NEMA 12 PFBA

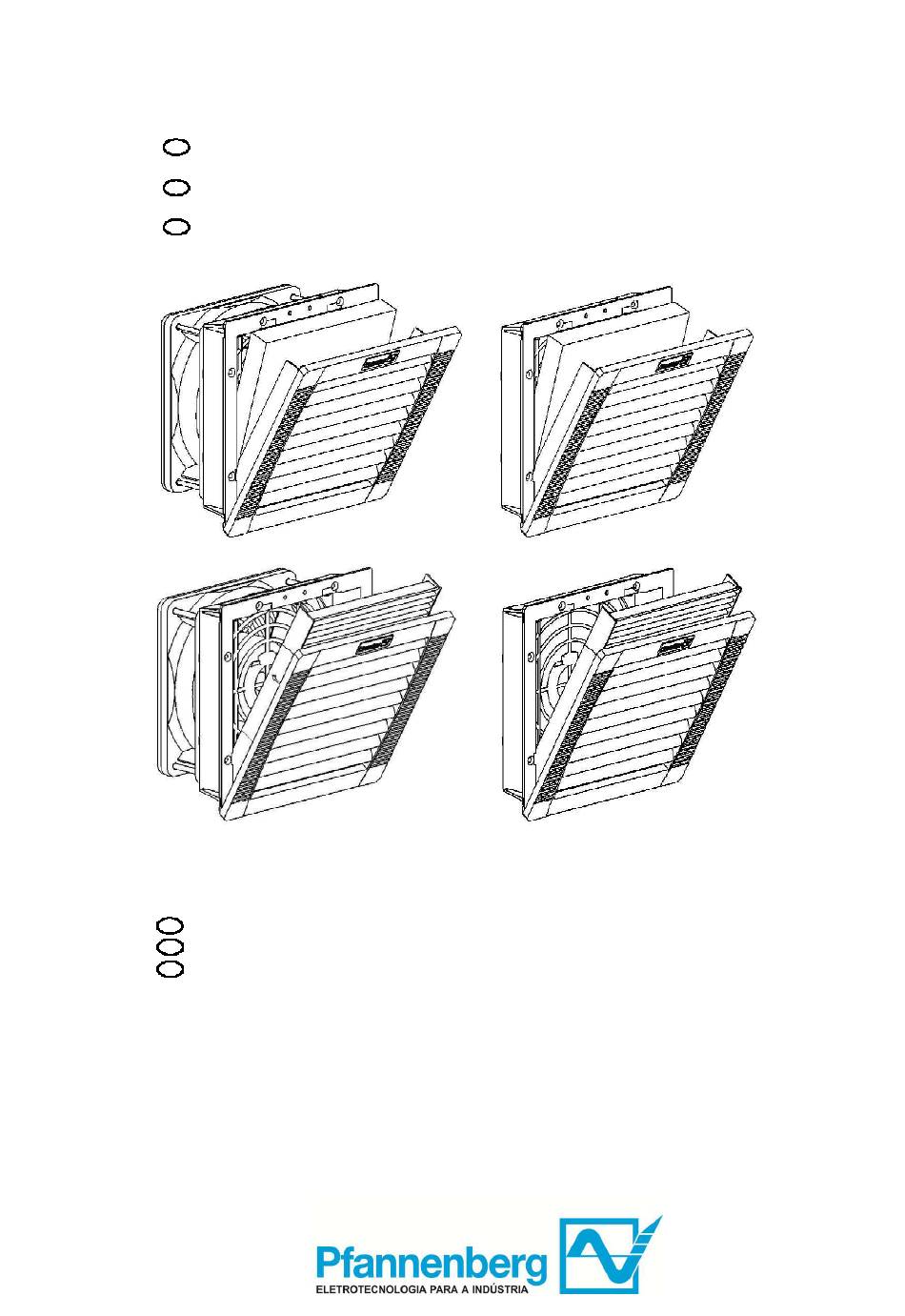

- Page 1 Instruções de operação e instalação Instrucciones de montaje y para uso Installation- and operating instructions IP54/ NEMA 12 PFB IP54/ NEMA 12 PFBA IP55/ NEMA 12 PFB IP55/ NEMA 12 PFBA Leia e guarde esta instrução Lea y salve estas instrucciones.
- Page 2 Cortes e dimensões Plantillas y dimensiones Cut outs and dimensions A = B X = Y mm(Inch) mm(inch) mm(inch) C ≤ 2(0,08") = A +1(0,04") PFBA +2(0,08") C >2(0,08") ≤ 3(0,12") = A +1(0,04") PFB 11000 92(3 ") 109(4 ") 53(2 ") ”)
- Page 3 Conexão de energia Conexión de energía Power connection Distância mínima de 30,5cm (12’’) entre o arco de elétrico e filtros (UL508A sec. 22) Distancia mínima entre los componentes del arco eléctrico y los filtros: 30,5 cm (12’’) (UL508A sec. 22) Minimum distance of 30,5cm (12”) between arcing parts and filters (acc.
-
Page 4: Technical Data
PFBA 30.000 0,26 -40.. +158°F PFBA 40.000 0,46 PFBA 60.000 Aquisição de peças de reposição Adquisición de repuestos Ordering spare parts www.filterfan.com.br · info@pfannenberg.com.br IP54/ TYPE 12 IP 55/ TYPE 12 50/60 Hz 115V 18611000028 PFB 11.000 230V 18611000032 18611600029 PFBA 10.000... - Page 5 Troca de filtro / Manutenção Cambio de filtro / Mantenimiento Filter change / Maintenance IP 55/ TYPE 12 IP 54/ TYPE 12 IP 55/ TYPE 12 IP 54/ TYPE 12 IP 54/ 55/ TYPE 12: Se certifique que o filtro está instalado na posição correta IP 54/ 55 /TYPE 12: Procure que la posición de montaje del filtro sea la correcta IP 54/ 55/ TYPE 12: Make sure that the filter is installe IP 55/ TYPE 12...
- Page 6 Warranty and licenses are limited to original Pfannenberg spare parts and become void if other spare parts are used. Furthermore, ingress protection and capacity levels are no longer ensured if original Pfannenberg spare parts are not used. As a result the ingress protection will be reduced to Type 1.
