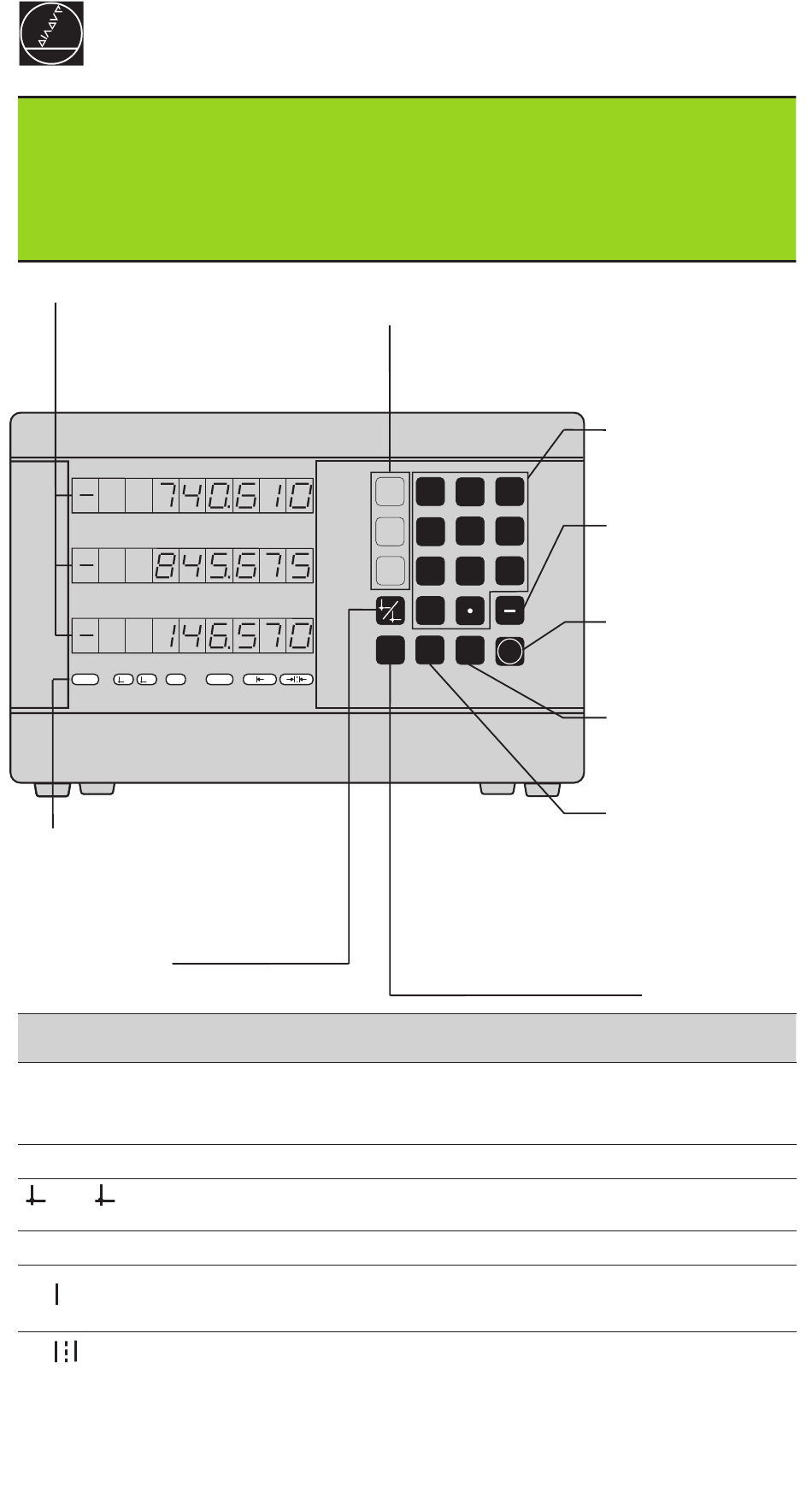

Working with the digital readouts
ND 510
Actual value and input display
(7-segment LED,
8 decades and sign)
Downwards: X-axis, Y-axis,
ND 550 only: Z-axis
REF
1
2
HEIDENHAIN
Status indicators
• Select datum
• Page backward in
parameter list
Indicator
REF
in.
1 /
2
SCL
← ← ← ← ←
→ → → → →
← ← ← ← ←
in.
SCL
Meaning
Reference mark was crossed over – datum points are now stored
in non-volatile memory.
Blinking: Waiting for reference mark to be crossed over.
Position values displayed in inches.
Datum point 1 / Datum point 2 currently active.
Scaling factor active.
Define workpiece edge as datum.
Blinking: Waiting for operator to confirm selection.
Define centerline between two workpiece edges as datum.
Blinking: Waiting for operator to confirm selection.
ND 550
• Select coordinate axis
(Z-axis with ND 550 only)
• Select axis-based operating parameters
X
7
8
9
5
6
4
Y
3
Z
1
2
1
0
2
SPEC
CL
MOD
ENT
FCT
• Clear entry
• CL plus two-digit number:
select parameter
• Clear parameter entry
Numeric keypad
and decimal point
• Sign
• Change parameter
Confirm
entry values
• Call operating
parameters
• Page forward in
parameter list
Datum setting
function
Advertisement
Table of Contents
Related Manuals for HEIDENHAIN ND 510
Summary of Contents for HEIDENHAIN ND 510
- Page 1 HEIDENHAIN Working with the digital readouts ND 510 ND 550 Actual value and input display (7-segment LED, • Select coordinate axis 8 decades and sign) (Z-axis with ND 550 only) Downwards: X-axis, Y-axis, • Select axis-based operating parameters ND 550 only: Z-axis...
- Page 2 The ND 510 and ND 550 digital readouts accept HEIDENHAIN linear encoders with sinusoidal output signals. These linear encoders have one or more reference marks, preferably of the distance- coded type. When a reference mark is crossed over, a signal is generated which identifies that position as a reference point.
- Page 3 Datum Setting Functions The special functions which your display unit is capable of allow you to define a workpiece edge or the centerline between two workpiece edges as the datum. With the SPEC FCT feature, the display unit takes into account the tool diameter you entered in operating parameter P25.
- Page 4 For every axis compensation values can be entered over 16 compensation points. To determine the compensation values with a comparator system from HEIDENHAIN, such as VM 101, you must select the REF display. Selecting the Compensation Value Table Select the operating parameter P00 and enter the code number 105 296. Use...
- Page 5 Working with Scaling Factors The ND 510 and the ND 550 can display the axis traverse lengthened or shortened by a scaling factor. You enter a scaling factor separately for each axis in the user parameter P12, then activate the scaling factor function with the user parameter P11.
- Page 6 Operating Parameters User Parameters User parameters are operating parameters that can be changed without entering the codes: P00 to P25 Axis assignment Parameters which are entered separately for each axis have axis codes: "1" signifies the X-axis, "2" the Y-axis, and (with the ND 550) "3" the Z-axis. A point separates the axis code from the parameter number.
- Page 7 Example: Displayed measuring length L a = 620.000 mm Actual length (determined with, for example, the VM 101 comparator system from HEIDENHAIN) L t = 619.876 mm Length difference ∆L = L t – L a = –124 µm Compens. factor k: k = ∆L / L a = –124 µm / 0.62 m = –200 [µm/m]...
- Page 8 Rear Panel Inputs for HEIDENHAIN linear encoders (ND 510: 2, ND 550: 3) with sinusoidal output signals (7µA to 16 µA Connecting cable max. 20 m (66 ft), Input frequency max. 50 kHz with 6 m/20 ft cable (35 kHz with 10 m/32.8 ft,...
