Inhalt / Contents Sicherheitshinweise Safety instructions Produktbeschreibung Product description Montage » air « adapter Mounting the » air « adapter Steuerung Control mit der » air « App with the » air « app mit dem » air « controller with the » air « controller...
Sicherheitshinweise Lesen Sie die Montage-/ Gebrauchs anweisung sorgfältig durch, bevor Sie das »air« adapter Dieses Zeichen macht Sie auf installieren. Beachten Sie die Situationen aufmerksam, bei Sicherheitshinweise in dieser denen Sie direkt in das Licht der Anleitung genau und bewahren LED blicken könnten.

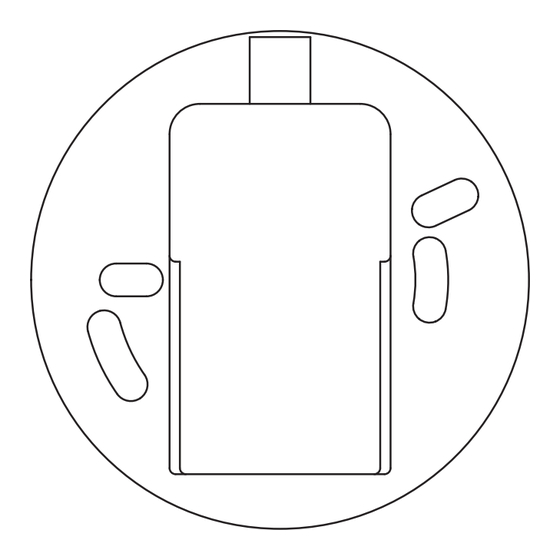

Produktbeschreibung Occhio air adapter Adapter inkl. » air « module für phasenabschnittdimmbare Leuchten und Vorschaltgeräte, Montage unter Aufbaudose, Seiteneinspeisung möglich. Occhio air module Bluetooth Dimmermodul für phasenabschnittdimmbare Leuchten und Vorschaltgeräte, Montage in air adapter, Hohl raum- oder Schalterdose. Maximaler Bedienkomfort und umfassende Steuerung via Bluetooth 4.0 ( Bluetooth Low...
Page 11
Deckenauslass 230 V AC Dübel » air « module Kabel » air « adapter Montageplatte (nicht im Lieferumfang) Schrauben...
Page 12
Montage » air « adapter Netzleitungen auf 6 cm kürzen. Die Kabelenden 5–6 mm abisolieren. Leitungsquerschnitt: 1 –1,5 mm Achtung! 5–6 mm Vor der Montage alle stromführen den Leitungen vom Stromnetz 1 –1,5 mm trennen und auf den Verlauf von Strom leitungen achten! Netzleitungen durch die Öffnung...
Page 14
Montage » air « adapter Netzleitung wie dargestellt mit dem » air « module verkabeln. Beiliegende Kabel wie dargestellt zur Leuchte hin mit dem » air « module verkabeln.
Page 15
Adapters führen. Auf die richtige Ausrichtung des Adapters achten ( siehe Darstellung ) . Montageplatte und den »air« adapter mit den mitgeliefer- ten Schrauben fixieren. Der »air« adapter ist nun fertig montiert. Weitere Montageschritte können der Anleitung der Leuchte ent nommen werden.
Page 18
Leuchten in meiner Nähe Eine Video-Kurzanleitung kann unter: Demo zeigen www.occhio.de/daten/ tutorials/air/de aufgerufen werden. Zum Einrichten des controllers wird die » air « App benötigt sie ist verfügbar für iOS- und Android-Geräte und kann jeweiligen Store heruntergeladen werden kann.
Page 22
Steuerung mit dem » air « controller (optional) Occhio air controller Intuitiv bedienbare Fernbedienung mit vier programmierbaren Tasten. Unabhängig von der » air « App können einzelne Leuchten, Gruppen und Szenen gesteuert werden ( Einrichtung via » air « App ) . Optional mit Wandhalterung erhältlich.
Page 23
Leuchten, alle Leuchten steuern. dimmen. Szenen, Gruppen, einzelne Leuchten, alle Zum Einrichten des controllers wird die » air « App Leuchten faden *. benötigt sie ist verfügbar für iOS- und Android-Geräte und kann im jeweiligen Store * Leuchten mit beidseitigem Lichtaustritt.
Page 26
Dimmen mit dem Lichtschalter (optional) Dimmen mit dem Lichtschalter Start Save < 1 Sek. 8 Sek. < 1 Sek.
Page 27
Helligkeit erreicht ist. Die gewählte Helligkeit wird automatisch gespeichert. Wird der Lichtschalter nicht innerhalb von 8 Sekunden aus- und ein geschaltet, erreicht die Lichtintensität ihr Maximum. Achtung! Die Steuerung des Licht schalters ist nur mit dem » air « module möglich...
150 W, NV Halogen max. 60 W Zulässige Betriebsbedingung max. 30°C, nur im Innenbereich betreiben Prüfzeichen Entsorgung Bei örtlicher Entsorgungsstelle entsorgen. Das Occhio air module und der »air« adapter sind recyclebar; RoHS-konform. Nicht in den Haus müll geben!
Safety instructions Carefully read through the mounting/use instructions before installing the »air« adapter. Follow This symbol draws attention to the safety instructions in this ins- situations in which you could look truction booklet exactly and save directly at the light from the LED.
Product description Occhio air adapter Adapter including » air « module for trailing-edge phase cut dimmable luminaires and power supply units, installation under spacing box, side feed possible. Occhio air module Bluetooth dimmer module for trailing-edge phase cut dimmable luminaires and power supply units;...
Page 39
Ceiling outlet 230 V AC Anchors » air « module Cables » air « adapter Mounting plate (not included in delivery) Screws...
Page 40
Mounting the » air « adapter Shorten power lines to 6 cm. Strip cable ends 5–6 mm. Cable cross-section: 1 –1.5 mm Caution! 5–6 mm Before installation, disconnect all power cables from the power 1 –1.5 mm supply and note the routing of the...
Page 42
Mounting the » air « adapter Connect the power line, as shown, to the » air « module. Connect the other cables, as shown, to the luminaire with the » air « module.
Page 43
Ensure that the orientation of the adapter is correct ( see figure ) . Fasten the mounting plate and the »air« adapter with the screws provided. The installation of the »air« adapter is now completed. Additional installation steps can be found in the instruction book...
Page 46
Control with the » air « app Occhio air products can be set up and controlled with the »air« app; it is available for iOS and Android devices and can be downloaded at the particular store. After the app is opened, the lumi-...
Page 50
Individual luminaires, groups and scenes can be controlled independently of the » air « app ( setup via » air « app ) . Available with optional wall mount. Maximum ease of use and total control via Bluetooth 4.0 ( Bluetooth low energy ) .
Page 51
For fading scenes, groups, individual luminaires, all of the To set up the controller, the » air « app is required. It is luminaires *. available for iOS and Android devices and can be down- loaded at the particular store.
Page 54
Dimming with the light switch (optional) Dimming with the light switch start save < 1 sec. 8 sec. < 1 sec.
Page 55
The selected brightness is automatically saved. If the light switch is not switched off and on within 8 seconds, then the light intensity reaches its maximum. Caution! The control of the light switch is only possible with the » air « module...
Permitted operating conditions max. 30°C for indoor use only Test symbols Disposal Dispose of at a local disposal site. The Occhio air module and the »air« adapter are recyclable and RoHS compliant. Do not dispose of with the household waste!
Page 60
Occhio GmbH Wiener Platz 7 81667 München Fon +49-89-44 77 86 30 Fax +49-89-44 77 86 39 info @ occhio.de www.occhio.de...
