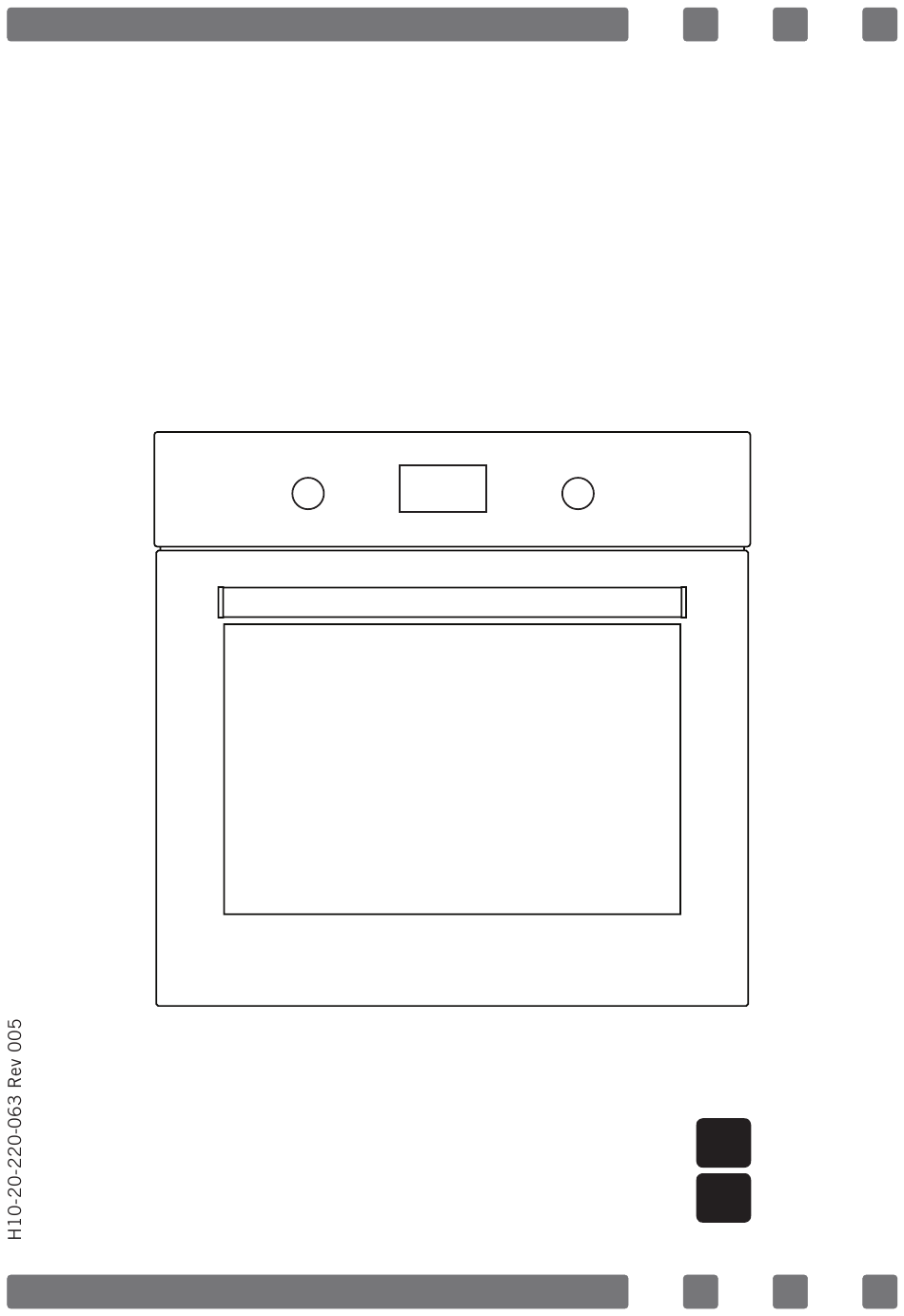

- Page 1 BUILT-IN OVEN 60 cm Electrical Ηλεκτρικός USER MANUAL ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ...
- Page 2 Dear Customer, Thank you for relying on this product. We aim to allow you to optimally and efficiently use this environment-friendly product produced in our modern facilities under precise conditions with respect to sense of quality in total. We advise you to read these operating manual thoroughly before using the oven and keep it permanently so that the features of the built-in oven you have purchased will stay the same as the first day for a long time.
-
Page 3: Table Of Contents
Contents Important warnings Electrical connection Introducing the appliance Accessories Technical specifications Installation of appliance Control panel Using the oven Using the grill Using the chicken roasting Program types Cooking recommendations Cooking table Baking with pizza stone Maintenance and cleaning Steam cleaning Cleaning and mounting oven door Cleaning oven glass Catalytic panel... -
Page 4: Important Warnings
IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner. - Page 5 12. Ensure that the oven door is completely closed after putting food inside the oven. 13. NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with a cover or a fire blanket. 14.
- Page 6 21. Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on or in the appliance. 22. Keep the ventilation channels open. 23. The appliance is not suitable for use with an external timer or a separate remote control system.
- Page 7 33. Do not use the appliance with its front door glass removed or broken. 34. Place the baking paper together with the food into a pre-heated oven by putting it inside a cooker or on an oven accessory. (tray, wire grill etc.) 35.
- Page 8 41. Do not use abrasive cleaners or sharp metal scrapers to clean the glass as the scratches that may occur on the surface of the door glass may cause the glass to break. 42. User should not handle the oven by himself. 43.
- Page 9 Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.
- Page 10 11. The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged. 12. Do not tighten the connecting cables to the oven door and do not run them over hot surfaces. If the cord melts, this may cause the oven to short circuit and even a fire.
- Page 11 19. Fixed connections shall be connected to a power supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device shall be connected to fixed power supply according to wiring code. Intended Use 1. This product has been designed for domestic use. Commercial use is not permitted.
-
Page 12: Electrical Connection
Electrical Connection This oven must be installed and connected to its place correctly according to manufacturer instructions and by an authorized service. Appliance must be installed in an oven enclosure providing high ventilation. Electrical connections of the appliance must be made only via sockets having earth system furnished in compliance with rules. -
Page 13: Introducing The Appliance
INTRODUCING THE APPLIANCE 1. Control panel 4. In tray wire grill 2. Deep tray * 5. Standard tray 3. Roast chicken skewer * 6. Oven door 7. Lamp 8. In tray wire grill 9. Standard tray... -
Page 14: Accessories
Accessories (optional) Deep tray * Used for pastry, big roasts, watery foods. It can also be used as oil collecting container if you roast directly on grill with cake, frozen foods and meat dishes. Tray / Glass tray * Used for pastry (cookie, biscuit etc.), frozen foods. Cİrcular tray * Used for pastry frozen foods. -
Page 15: Technical Specifications
Technical Specifications Specifications 60 cm Built-in oven (MFA1-6..) Lamp power 15-25 W 40-240 / Max °C Thermostat Lower heater 1200 W Upper heater 1000 W Turbo heater 1800 W Grill heater Small grill 1000 W Big grill 2000 W Supply voltage 220V-240 V 50/60 Hz. - Page 16 WARNING: The rules about electrical local standards must be adhered to during product installation. WARNING: Check for any damage on the product before installing it. Do not have product installed if it's damaged. Damaged products pose danger for your safety. Important Warnings for Installation: Cooling fan shall take extra steam out and prevent outer surfaces of appliance from...
- Page 17 60 cm Built-In Oven Installation And Mounting Place of use for product must be located before starting installation. Product mustn't be installed in places which are under the effect of strong air flow. Carry the product with minimum two people. Do not drag the product so that floor isn't damaged.
- Page 18 Supply cord mustn't be under the oven, squeeze in between oven and furniture or bend. Fix the oven to the furniture by using the screws provided with the product. Screws must be mounted as shown in figure 5 by passing them through plastics attached to frame of the product.
- Page 19 Figure 2 Figure 3...
- Page 20 Figure 4...
-
Page 21: Control Panel
Figure 5 CONTROL PANEL 1. Function button 2. Mechanical or digital timer 3. Thermostat WARNING: The control panel above is only for illustration purposes. Consider the control panel on your device. - Page 22 Thermostat Button: Helps to set cooking temperature of the food to be cooked in the oven. You can set the desired temperature by turning the button after placing the food into the oven. Check cooking table related to cooking temperatures of different foods. Mechanical Timer Button *: Helps to set time for the food to be cooked in the oven.
-
Page 23: Using The Oven
USING THE OVEN Initial Use Of Oven Here are the things you must do at first use of your oven after making its necessary connections as per instructions: 1. Remove labels or accessories attached inside the oven. If any, take out the protective folio on front side of the appliance. -
Page 24: Using The Grill
Using The Grill 1. When you place the grill on the top rack, the food on the grill shall not touch the grill. 2. You can preheat for 5 minutes while grilling. If necessary, you may turn the food upside down. 3. -
Page 25: Program Types
PROGRAM TYPES Program Button: Helps to set with which heaters the food placed in oven will be cooked. Heater program types in this button and their functions are stated below. Every model might not have all heater types and thus program types of these heaters. Heating program types in your appliance and important explanations of them are provided below for you can cook different foods appealing to your taste. -
Page 26: Cooking Recommendations
Grill: Grill cooker is used for grilling meat like foods such as steak, sausage and fish. While grilling, tray should be placed in the lower rack and water must be placed in it. Turbo heater and fan: Suitable for baking and roasting. Keep heat setting lower than "Lower and Upper Heater"... -
Page 27: Cooking Table
Cooking Table MFA1-6..: Cooking Cooking Cooking Cooking Food function temperature (°C) rack time (min.) Cake Static / Static+fan 170-180 35-45 Small cake Static / Turbo+fan 170-180 25-30 Static / Static+fan 180-200 35-45 Pastry Static 180-190 20-25 Cookie Static 170-180 20-25 Apple pie Static / Turbo+fan... -
Page 28: Baking With Pizza Stone
MFA1-8..: Cooking Cooking Cooking Cooking Food function temperature (°C) rack time (min.) Cake Static / Static+fan 170-180 30-35 Small cake Static / Turbo+fan 170-180 25-30 Static / Static+fan 180-200 30-35 Pastry Static 180-190 25-30 Cookie Static / Turbo+fan 170-180 20-30 Apple pie Static / Turbo+fan... -
Page 29: Maintenance And Cleaning
MAINTENANCE AND CLEANING 1. Remove the power plug from electrical socket. 2. Do not clean inner parts, panel, trays and other parts of the product with hard tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching materials or detergent. -
Page 30: Cleaning And Mounting Oven Door
Cleaning And Mounting Oven Door Figure 8 Figure 9 Figure 8.1 Figure 8.2 Figure 9.1 Figure 9.2 Open the door fully Set the hinge lock Later, close the For easier removal by pulling the to the widest angle opened oven door of oven door, when oven door toward as in figure 8.2. -
Page 31: Cleaning Oven Glass
Cleaning Oven Glass Lift by pressing on plastic latches on left and right side as shown in figure 10 and pulling the profile toward yourself as in figure 11. Glass is released after profile is removed as shown in figure 12. Remove the released glass by pulling toward yourself carefully. -
Page 32: Rack Positions
Rack Positions It is important to place the wire grill into the oven properly. Do not allow wire rack to Rack 4 touch rear wall of the oven. Rack positions Rack 3 are shown in the next figure. You may place Rack 2 a deep tray or a standard tray in the lower Rack 1... -
Page 33: Troubleshooting
TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the oven, first check the table below and try out the suggestions. Problem Possible Cause What to Do... - Page 34 Problem Possible Cause What to Do Water dripping. Water or steam may generate under Steam coming out from a crack on certain conditions depending on Let the oven cool down and than oven door. the food being cooked. This is wipe dry with a cloth.
-
Page 35: Handling Rules
HANDLING RULES 1. Do not use the door and/or handle to carry or move the appliance. 2. Carry out the movement and transportation in the original packaging. 3. Pay maximum attention to the appliance while loading/unloading and handling. 4. Make sure that the packaging is securely closed during handling and transportation. -
Page 36: Environmentally-Friendly Disposal
ENVIRONMENTALLY-FRIENDLY DISPOSAL Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame work for the return and recycling of used appliances as applicable throughout to the EU.
