REEF Installation Instructions

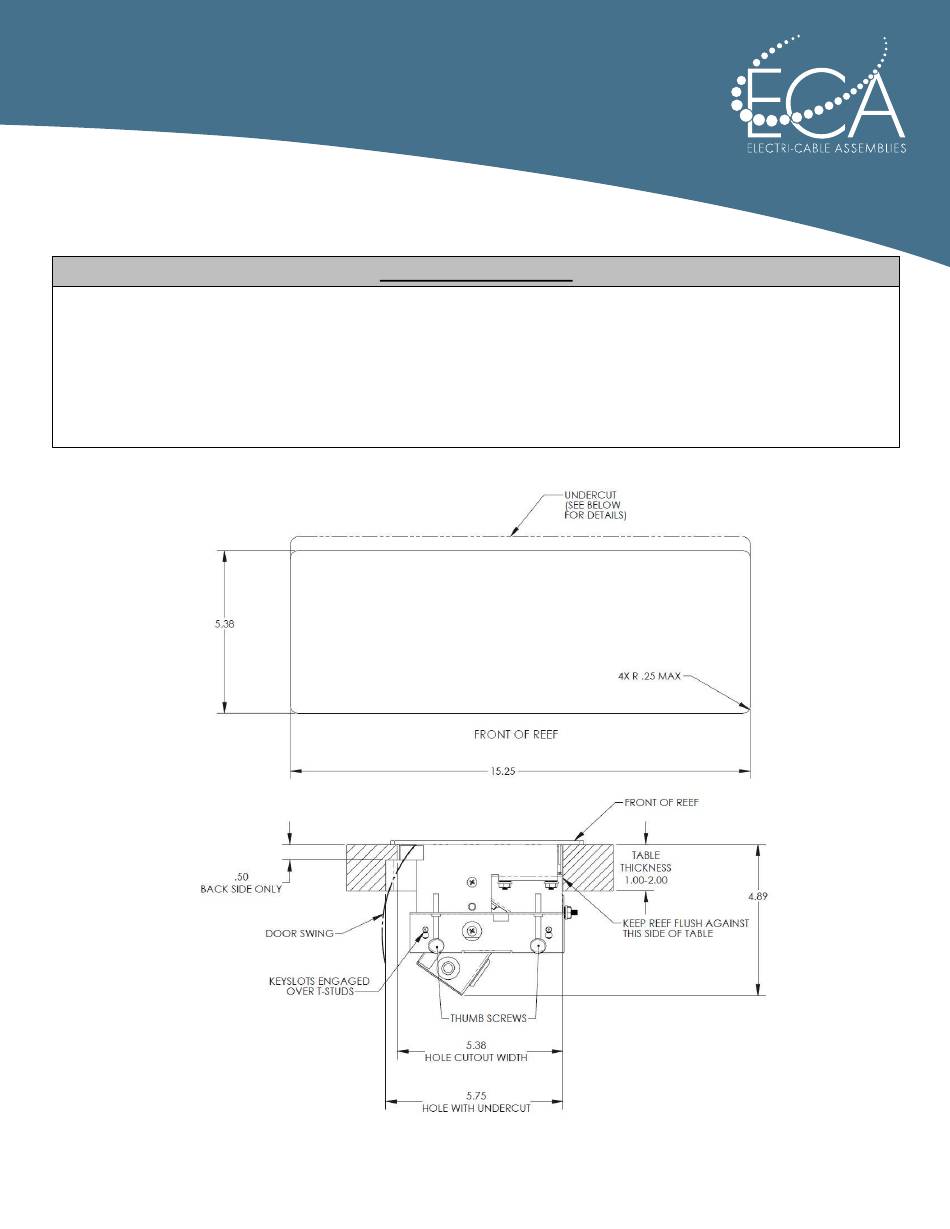

1. Determine the REEF's mounting location and prepare the surface. (See Fig. 1 & 2, orient the undercut to the
rear of the unit)
2. Insert the REEF into the cutout from above and check for smooth operation of the door and adjust position in
cutout if required.
3. Clamp into position using clamps & thumb screws provided. Note: Key slots in clamps engage over T-studs in
REEF and thumb screws tighten against the underside of the table.
4. Connect all power and data cabling as needed.
