Instructions for use:
1. Determine the surface cutout required for the Cove model being installed, see fig. 1 & 2, and prepare the
surface.
2. Insert the Cove through the cutout.
3. Place the brackets and thumb nut on stud, see fig. 3. or secure the Cove with mounting screws (not provided
see fig. 2). Tighten the nuts, or screws until secure, do not over tighten.
4. Connect System 42 power cables to connectors of cove, ensure latches are secure, and fully seated.
Note: Use only Electri-Cable Assemblies System 42 Cables.
5. ECA System 42 connectors have been evaluated to prevent inadvertent contact with live parts. Unused con-
nector openings are not required to be capped.

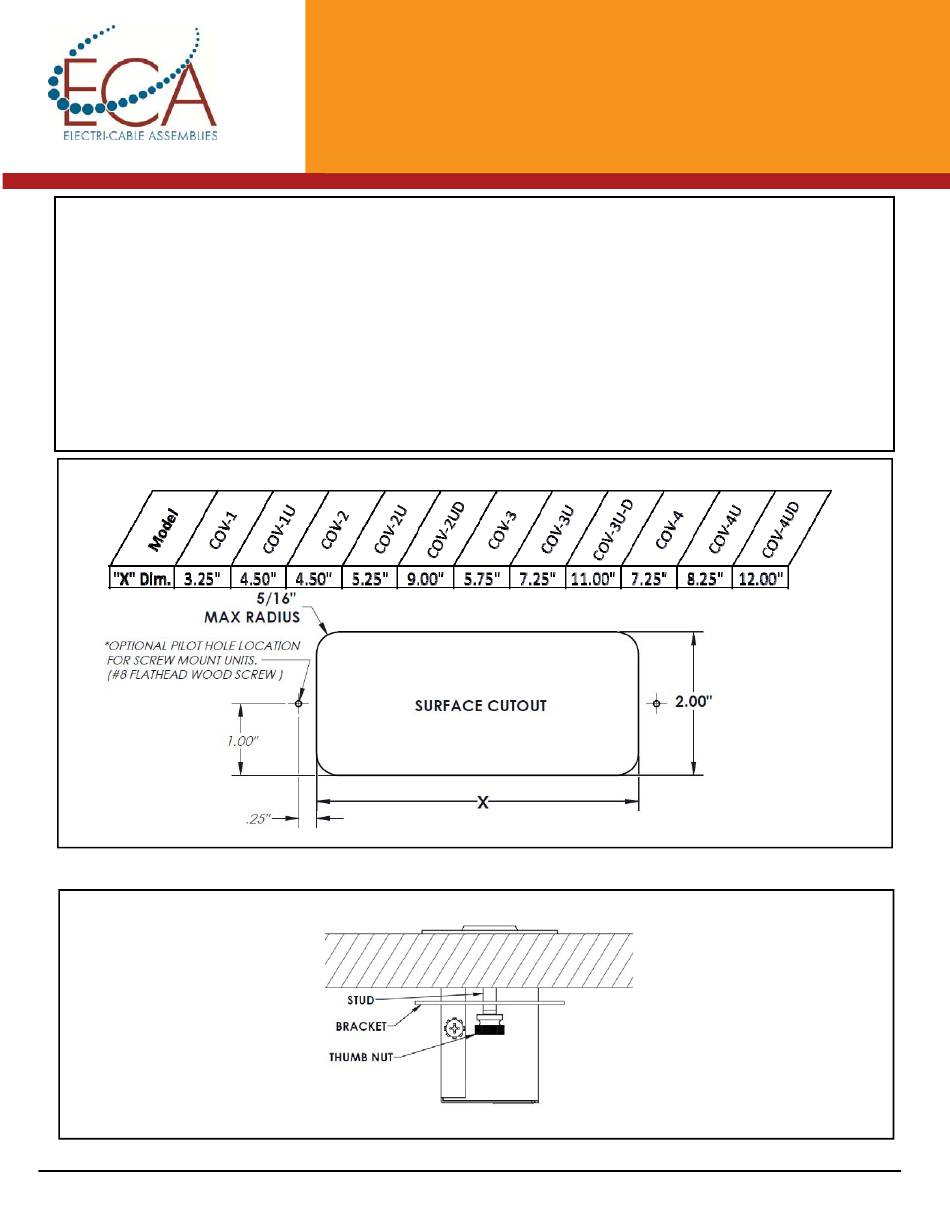

Table cutout dimensions:
Mounting with thumb screws:
9065-0260 Rev B
10 Mountain View Drive
•
© ECA– November 2013—Product specifications subject to change without notice
Mounts to Surface Thicknesses: .25"-1.25"
Shelton, CT 06484 •
P:800.521.3175
Cove with DaisyLink
Installation Sheet
Innovative Power + Data Solutions
•
F:203.924.6687
INSTALL-COVE42-063014
fig. 1
fig. 2
fig. 3
•
www.electri-cable.com
1
