INSTRUCTIONS

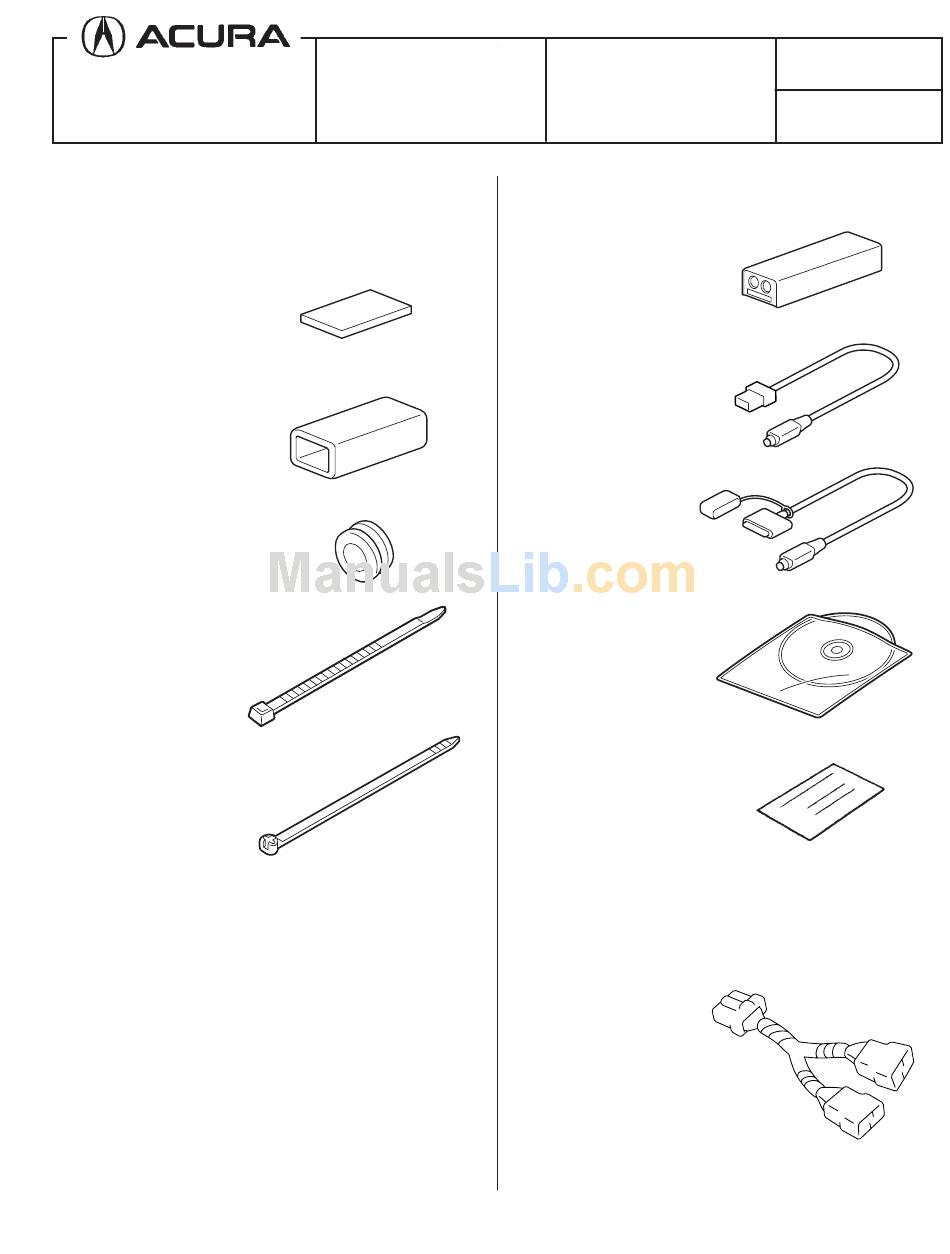

PARTS LIST
Attachment Kit (Sold Separately)
P/N 08A28-1H1-800
4 Cushion tapes
Holder cushion
Grommet
8 Wire ties
2 Long wire ties
© 2007 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
ACURA MUSIC LINK
(FOR iPod
)
®
Music Link Adapter Kit (sold separately)
P/N 08A28-1H2-100
Music Link adapter unit
Bus cable
Music Link harness
CD-ROM
Quick Reference guide
Y-Harness Adapter (sold separately)
P/N 08A31-0F1-000
Y-harness adapter
BII 31179-34943 (0704)
Application
BII 31179-34943
2006 MDX
08B28-S3V-2000-91
Publications No.
Issue Date
APRIL 2007
1 of 8
Advertisement
Table of Contents
Related Manuals for Acura Music Link BII31179-34943
Summary of Contents for Acura Music Link BII31179-34943
- Page 1 Holder cushion Grommet 8 Wire ties 2 Long wire ties © 2007 American Honda Motor Co., Inc. - All Rights Reserved. Accessory ACURA MUSIC LINK (FOR iPod ® Music Link Adapter Kit (sold separately) P/N 08A28-1H2-100 Music Link adapter unit...
- Page 2 TOOLS AND SUPPLIES REQUIRED #2 Phillips screwdriver Flat-tip screwdriver Diagonal cutters Scissors Ratchet 10 mm Socket 10 mm Combination wrench Drill motor 3 mm Drill bit 19 mm Hole saw (3/4") Felt-tip pen Pushpin Eye protection Gloves Isopropyl alcohol Electrical tape Illustration of the Music Link System Installed on the Vehicle ADAPTER...
- Page 3 Move the shift lever to the N position, then remove the coin box. COIN BOX CLIPS (2) CENTER PANEL LOWER TRIM Remove the mat and center panel lower trim (four clips). Open the accessory socket cover, and remove the center lower cover (four self-tapping screws, release the harness clip, and disconnect the accessory socket connector).
- Page 4 10. Remove the two self-tapping screws and four bolts that secure the radio brackets. Pull the audio unit out toward you, unplug the six vehicle connectors and the antenna lead and remove the audio unit. SELF-TAPPING SCREWS BOLTS (4) AUDIO UNIT 11.
- Page 5 14. Using a felt-tip pen, mark the Music Link harness as shown. CUSHION TAPE (Cut into 4 pieces.) FELT-TIP MARK 50 mm 50 mm GROMMET MUSIC LINK HARNESS 15. Route the Music Link harness through the grommet. 16. Cut one cushion tape into 4 equal pieces, and wrap two pieces of the cushion tapes to the Music Link harness at the measurements shown.
- Page 6 20. Insert the Music Link adapter unit into the unit cushion. UNIT CUSHION 21. Route the Music Link harness and bus cable through the audio unit opening, and connect the Music Link harness DIN connector (White) and bus cable DIN connector (Black) to the Music Link adapter assembly.
- Page 7 24. Secure the bus cable: Without the XM Radio: Align the bus cable 14-pin connector with the vehicle 20-pin connector, bundle up the excess bus cable, and secure it to the vehicle harness with the two wire ties. BUS CABLE AUDIO UNIT (Bindle up OPENING...
- Page 8 adapter 14-pin connectors. • Secure the Y-harness adapter to the vehicle harness with a wire tie. BUS CABLE VEHICLE (Bundle up excess.) HARNESS WIRE Y-HARNESS ADAPTER • Bundle up the excess bus cable, and secure it to the vehicle harness with the two wire ties. STOPPER GLOVE BOLTS...
