TC easy Plus
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC Easy Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Rutenbeck TC Easy Plus

Summary of Contents for Rutenbeck TC Easy Plus

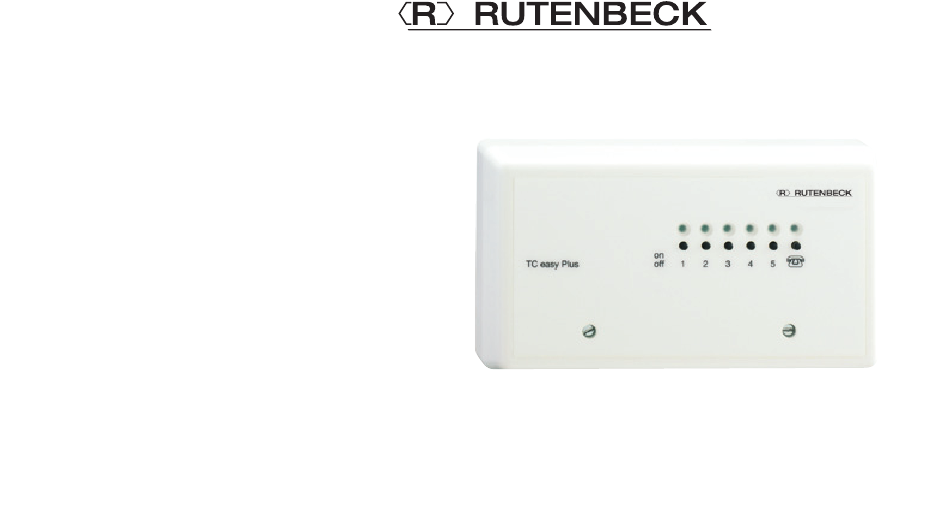

  • Page 1 TC easy Plus Operating instructions...

  • Page 2: Overview

    Overview Accessory Plug power supply 12 V Operating instructions optional Temperature sensor 700 802 201 Emergency power supply NV 2 TC GB 700 900 139 Additional module SAR 2 Ap GB 500 101 05 1 LED S1 to S5 2 pushbutton S1 to S5 3 LED ”automatic call acceptance”...

  • Page 3: Table Of Contents

    Table of Contents Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 Accessory .
  • Page 4 Ringing Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Code Number .

  • Page 5: General

    General The TC easy Plus is a remote Individual user data are easy 150 mA for relays (i .e . to program by a telephone switching and alarming de- SAR 2 GB 500 101 05) . call . The operation is sup- vice .

  • Page 6: Installation

    Installation Wall Mounting The TC easy Plus can be 3 Lead the necessary in- the base plate (see fig- mounted directly on the wall . stallation cables for the ure, C) . 1 Attach the base plate at devices A1 to A5 through...

  • Page 7: Putting Into Operation

    (see page 10 . page 9) . 4 Install the equipment to The TC easy Plus can be switched, respectively, also be connected at an the control relays as extension of a telephone shown in the connection system .

  • Page 8: Factory Settings

    Installation Factory Settings Own Settings: The default settings of the Alarm phone delivery state can be re- _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ number 1: none stored any time by pressing pushbutton ”S1”...

  • Page 9: Connection Of Telephone Line, Plug Power Supply

    Installation Connection of Telephone Line, Plug Power Supply, Inputs and Temperature Sensor...

  • Page 10: Connection Of Outputs And Pushbuttons

    Installation Connection of Outputs and Pushbuttons...
  • Page 11 Installation The external pushbuttons for local operation are con- nected electrically parallel to the integrated pushbut- tons S1 to S5 . The outputs A1 and A2 have relay con- tacts with a load capacity of 48 V/2 A AC/DC . The out- puts A3 to A5 can deliver 12 V/150 mA .

  • Page 12: Operation

    Operation State Request The automatic call accept- After calling and seizure of Call the TC easy Plus and ance will be activated with the telephone line as well dial the code number . the pushbutton ” ” . The as- as correct entry of the code signed LED lights up .

  • Page 13: General Settings

    Operation General Settings Call the TC easy Plus and dial the code number . ”Please dial a digit .” setting digit 9 menu settings disconnection settings announcement With disconnection without announcement .

  • Page 14: Menu Settings

    Operation Menu Settings Alarm Phone Numbers Call the TC easy Plus and 9 impulse time in The TC easy Plus has two dial the code number and hours alarm inputs . If a connected the digit „9“ for the selection...

  • Page 15: Own Phone Number

    Operation Own Phone Number Answering Machine Mode Alarm Phone Numbers If no confirmation takes If the TC easy Plus sends off In order to address a con- place, alarm messages will an alarm message via the nected answering machine be announced at the pro-...

  • Page 16: Ringing Signals

    Operation Ringing Signals Code Number Impulse Time The number of ringing sig- The four digit code number With the impulse time the nals until answering an in- can be set in the menu set- outputs can be activated for coming call by the TC easy tings (“6”) .

  • Page 17: Temperature Level

    -9 °C to 40 °C . initiated if a certain temper- The TC easy Plus has a hys- ature level is reached . In teresis of 3 °C, that means, this case, the alarm phone...

  • Page 18: Setting Procedures

    5 . To set the tional sequences is printed TC easy Plus must be called code number, press 6 . To on the supplementary sheet . from a telephone . After en-...
  • Page 19 Setting Procedures Call the TC easy Plus: Phone number of the TC easy Plus line ”Here is the TC easy Plus . Please dial the code num- ber .” Dialling of code number: ”0000” ”Please dial a digit .” Changing to the menu set- tings: ”9”...
  • Page 20 Setting Procedures setting announcement Set alarm phone number 2: ”2” ”Phone number two . Please dial . For confirmation press the pound key, for cancella- tion press the asterisk key .” ”0815#” ”Phone number two: 0815” setting announcement Set own phone number: ”3”...
  • Page 21 Setting Procedures setting announcement Setting of answering ma- chine mode: ”4” ”Answering machine mode . Please dial . Answering ma- chine mode on: 1, Answer- ing machine mode off: 0 . For confirmation press the pound key, for cancellation press the asterisk key .”...
  • Page 22 Setting Procedures the pound key, for cancella- tion press the asterisk key .” ”7#” ”Ringing signals: 7” setting announcement Setting of code number: ”6” ”Code number: 0000 . Please dial . New code number . For confirmation press the pound key, for cancellation press the asterisk key .”...
  • Page 23 Setting Procedures Setting of impulse time (sec): ”7” ”Impulse mode: 3 seconds . Please dial . Seconds . For confirmation press the pound key, for cancellation press the asterisk key .” The setting of the impulse time is alternatively possible ”35#”...
  • Page 24 Setting Procedures . . .still setting of tempera- ”Please dial temperature ture level: ”1#” level . For confirmation press the pound key, for cancella- tion press the asterisk key .” ”Temperature level more than ”28#” 28 degrees .” setting announcement Abort menu settings: ”Please dial a digit .”...

  • Page 25: Switch Devices And Impulse Time, Check The State

    Switch Devices and Impulse Time, Check the State of Devices and Temperatures Turning on device 5: Call the phone number of the TC easy Plus . ”Here is the TC easy Plus . Please dial the code num- ber .” ”1873”...
  • Page 26 Switch Devices and Impulse Time, Check the State of Devices and Temperatures Checking the state of device 2: ”2#” ”The device 2 is turned off . Please dial a digit .” Checking the state of device 5: ”5#” ”The device 5 is turned on . Impulse mode 35 seconds .

  • Page 27: Alarm Messages

    .” The alarm has been con- ” ” ”The alarm has been con- firmed . firmed . Please dial the code number .” ” ” ² The TC easy Plus will send off a maximum of 2 dialing attempts .
  • Page 28 The programmed tempera- ture level (25 °C) has been ”4711” exceeded . ”Here is the TC easy Plus . 0235582224 . The temper- The TC easy Plus calls the ature level is more than 25 alarm phone number 1 .

  • Page 29: Unprotected Mode

    Special Features Unprotected Mode Time out Power Supply If the code number ”1111” is When the TC easy Plus The power feeding must be set, the testing of the code seized the telepone line and connected at terminals 12 V...

  • Page 30: Behavior At Power Failure

    Special Features Behavior at Power Failure All settings and the actual switching states are perma- nently stored and are there- fore, available after a power failure . If a power failure takes place during an alarm call, the alarm call will be re- peated after the power re- turns .

  • Page 31: Technical Data

    Technical Data Dimensions L x W x H: 143 x 81 x 28 mm Weight: 400 g Color: pure white, according to RAL 9010 Temperature range Operation: -5 to 45 °C Storage: -25 to 70 °C Protection class: IP30 according to EN 60529 Power supply: 12 V DC with screw terminals Switching outputs 1 and 2:...
  • Page 32 Technical Data Class: Temperature sensor (optional) Article number: 700 802 201 Length: 600 mm Extension: to approx . 10 m Temperature range: -10 °C to 40 °C, resolution 1 °C Temperature values -10 °C: 42,4 k 25 °C: 10 k 40 °C: 5,8 k B-value:...

  • Page 33: Current Consumption

    Power Consumption Power consumption at supply voltage of 12 V Switching state Connection state Idle state (call acceptance during announce- no announcement ment all relays off 28 mA 45 mA 57 mA one relay on 45 mA 60 mA 74 mA two relays on 62 mA 77 mA...

  • Page 34: Guarantee

    Guarantee Service We guarantee the perfect In case of a malfunction, function of the TC easy Plus consult your dealer or send and TC Z easy for 2 years the device with receipt and a after date of purchase (re-...

  • Page 35: Manufacturer's Declaration

    .rutenbeck .de in GmbH & Co . KG declare in the download-sector . our sole responsibility, that the TC easy Plus was man- ufactured under a full quality assurance system accord- ing to Annex V of directive 1999/5/EC, certified by Noti- fied Body No .
  • Page 36 Niederworth 1-10 58579 Schalksmühle GERMANY Phone +49 2355 82-0 Telefax +49 2355 82-105 www .rutenbeck .de mail@rutenbeck .de...
