Rutenbeck TCR easy Plus Alarm Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

TCR easy Plus Alarm
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCR easy Plus Alarm and is the answer not in the manual?

Questions and answers

Related Manuals for Rutenbeck TCR easy Plus Alarm

Summary of Contents for Rutenbeck TCR easy Plus Alarm

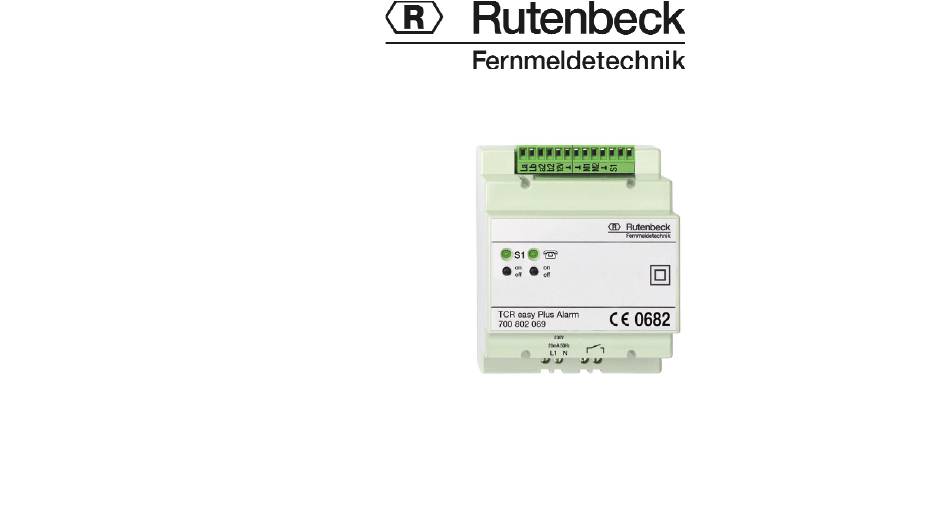

  • Page 1 TCR easy Plus Alarm Operating Instructions...

  • Page 2: Table Of Contents

    Table of Contents General ........4 Installation .
  • Page 3 Switch Device and Impulse Time, Check the State of Device ....... .20 Alarm Messages .

  • Page 4: General

    General The TCR easy Plus Alarm – The switching takes place phone line as well as with from now on known as TC with DTMF-signals (DTMF= the built-in push-buttons device – is a remote switch- Dual-Tone Multi-Frequency). (see page 6).

  • Page 5: Installation

    Installation Putting into Operation The mounting and installa- 1 Connect the subscriber The terminals can hold wires tion of the TC device in an line at the screw terminals up to max. 1 x 1.5 mm². electrical distribution box La and Lb (ring and tip) of must be performed by a the device.

  • Page 6: Connection Of The Tc Device

    Installation Connection of the TC Device Legend: external push-button M1/M2: inputs Hint: For the local operation of the output, an external push- button can be connected, which is electrically connec- ted parallel to the integrated on/off-push-button. Attention: Use appropriate fuses for the circuit according to the max.

  • Page 7: Factory Settings

    Installation Factory Settings The default settings of the Own settings: delivery state can be re- Alarm input 1 stored any time by pressing Alarm phone no. 1: none _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ both push-buttons until the Alarm phone no.

  • Page 8: Function

    Function Operation State Request The automatic call accept- After calling and seizure of Call the TC device and dial ance will be activated with the telephone line, the lan- the code number. the push-button . The as- guage selection (at the first signed LED lights up.

  • Page 9: General Settings

    Operation General Settings Menu Settings Call the TC device and dial Call the TC device and dial 6 code number the code number. the code number and the 7 no. of dial attempts digit ”9” for the selection of 8 language ”Please dial a device the menu settings.

  • Page 10: Alarm Phone Numbers And De-/Activating Inputs

    Operation Alarm Phone Numbers Own Phone Number and De-/Activating Inputs If a confirmation does not If a contact is activated, the If the TC device sends off take place, alarm messages programmed alarm phone an alarm message via the will be announced at the number will automatically be telephone line, it will first an- programmed alarm phone...

  • Page 11: Answering Machine Mode

    Operation Answering Machine Mode Ringing Signal Setting Code Number In order to address a con- The amount of ringing sig- The four digit code number nected answering machine nals until the TC device an- can be set in the menu set- instead of the TC device via swers the call can be set in tings (”6”).

  • Page 12: Number Of Dial Attempts

    Operation Number of Dial Attempts Language Setting Procedures The number of alarm calls The language of the announ- For programming the param- carried out by the TC device cements can be selected eters the phone line of the can be set from ”1” to ”12” with digit ”8”.
  • Page 13 Operation Setting Procedures To set the amount of ringing The following example own phone no.:0235582224 signals, press five. To set shows how the below stated answering machine the code number, press six. values can be set starting mode: To set the number of dial at- from delivery state: ringing signals: tempts, press seven, to se-...
  • Page 14 Setting Procedures Operation Dialing Announcement Call the TC device first time: ”0235582224” ”Deutsch 1, english 2, ned- erlands 3.” Choosing language ”2” ”This is the Telecontrol. Please dial the code number.” Dialing of code number ”0000” ”Please dial a device number.”...
  • Page 15 Setting Procedures Operation Dialing Announcement Set alarm phone number 1: ”1” ”Phone number 1. Please dial phone number 1. To confirm press the pound key, for cancellation the as- terisk key.” ”4711#” ”Phone number 1: 4711” ”Alarm input 1. Press one for phone number 1, two for phone number 2 and three for phone number 3.
  • Page 16 Setting Procedures Operation Dialing Announcement Alarm input off: 0. To con- firm press the pound key, for cancellation the asterisk key.” ”0#” ”Alarm input 1 off. Press one for phone number 1, two for phone number 2 and three for phone number 3. To acti- vate or deactivate the alarm Back to the setting an- input, press four.”...
  • Page 17 Setting Procedures Operation Dialing Announcement Setting of answering ma- chine mode: ”4” ”Answering machine mode: off. Please dial. Answering machine mode on: 1, An- swering machine mode off: 0. To confirm press the pound key, for cancellation the asterisk key.” Confirmation of the actual setting: ”#”...
  • Page 18 Setting Procedures Operation Dialing Announcement ”7#” ”Ringing signals: 7” setting announcement Setting of code number: ”6” ”Code number: 0000. Please dial. New code num- ber. For confirmation press pound key, for cancellation asterisk key.” ”1873#” ”New code number: 1873” setting announcement Setting of dial attempts: ”7”...
  • Page 19 Setting Procedures Operation Dialing Announcement Setting of language: ”8” ”Deutsch 1, english 2, ned- erlands 3. To confirm press the pound key, for cancella- tion the asterisk key.” ”#” setting announcement ” ” Leave the menu settings: ”Please dial a device number.”...

  • Page 20: Switch Device And Impulse Time, Check The State Of Device

    Switch Device and Impulse Time, Check the State of Device Operation Dialing Announcement Turning on the device: ”0235582224” ”This is the Telecontrol. Please dial the code number.” ”1873” ”Please dial a device number.” ”11” ”The device 1 is turned on. Please dial a device num- ber.”...

  • Page 21: Alarm Messages

    Alarm Messages Operation Dialing Announcement Input 2 has been activated. The device dials the pro- grammed alarm phone num- ber 1. ”0815” ”This is the Telecontrol. 0235582224. The alarm 2 has been activated.” The alarm will not be con- firmed. After a 2 min. break, the alarm phone number 2 will be called.
  • Page 22 Alarm Messages Operation Dialing Announcement The alarm will not be con- firmed. After a 2 min. break, the alarm phone number 1 will be called again. ”0815” ”This is the Telecontrol. 0235582224. The alarm 2 has been activated.” Automatic redial until the alarm is confirmed or the number of dial attempts has ”...

  • Page 23: Unprotected Mode

    Special Features Unprotected Mode Time-out Power Supply If the code number ”1111” is When the TC device seized The feeding of the TC de- set, the testing of the code the telepone line and no vice can be alternatively number will be left out, DTMF-signals have been re- done with 12 V (UPS).

  • Page 24: Power Consumption Of Tc Device

    Special Features Behavior during Power Power Consumption of TC Device Failure All settings and the actual switching states are perma- Device Power Consumption nently stored and are there- fore, available after a power Power Supply failure. If a power failure takes place during an alarm call, the alarm call will be re- 230 V...

  • Page 25: Technical Data

    Technical Data Mains: 230 V/50 to 60 Hz Switching output: potential-free contact max. 16 A, 230 V AC (real load) Power consumption: see table on page 24 Ringing frequency : 20 Hz to 60 Hz Dimensions L x W x H: 72 x 90 x 65 mm (4 module width) Weight: 310 g...

  • Page 26: Guarantee

    (receipt) malfunction to: providing that it was profes- sionally installed and operat- Rutenbeck Service-Center Gewerbegebiet For further questions con- Im Meilesfelde 5 tact our Rutenbeck-Hot- 99819 Marksuhl Line: GERMANY +49 36925 90090 Phone: +49 36925 90091 Fax:...

  • Page 27: Manufacturer's Declaration

    The complete declaration of EC identification number conformity can be found 0682). under www.rutenbeck.de in the download-sector. The TCR easy Plus Alarm is being manufactured within a comprising quality assur- ance system according to ISO 9001:2000 with regis- tration number 000886QM.
  • Page 28 Niederworth 1-10 58579 Schalksmühle GERMANY Phone +49 2355 82-0 Telefax +49 2355 82-105 www.rutenbeck.de mail@rutenbeck.de...
