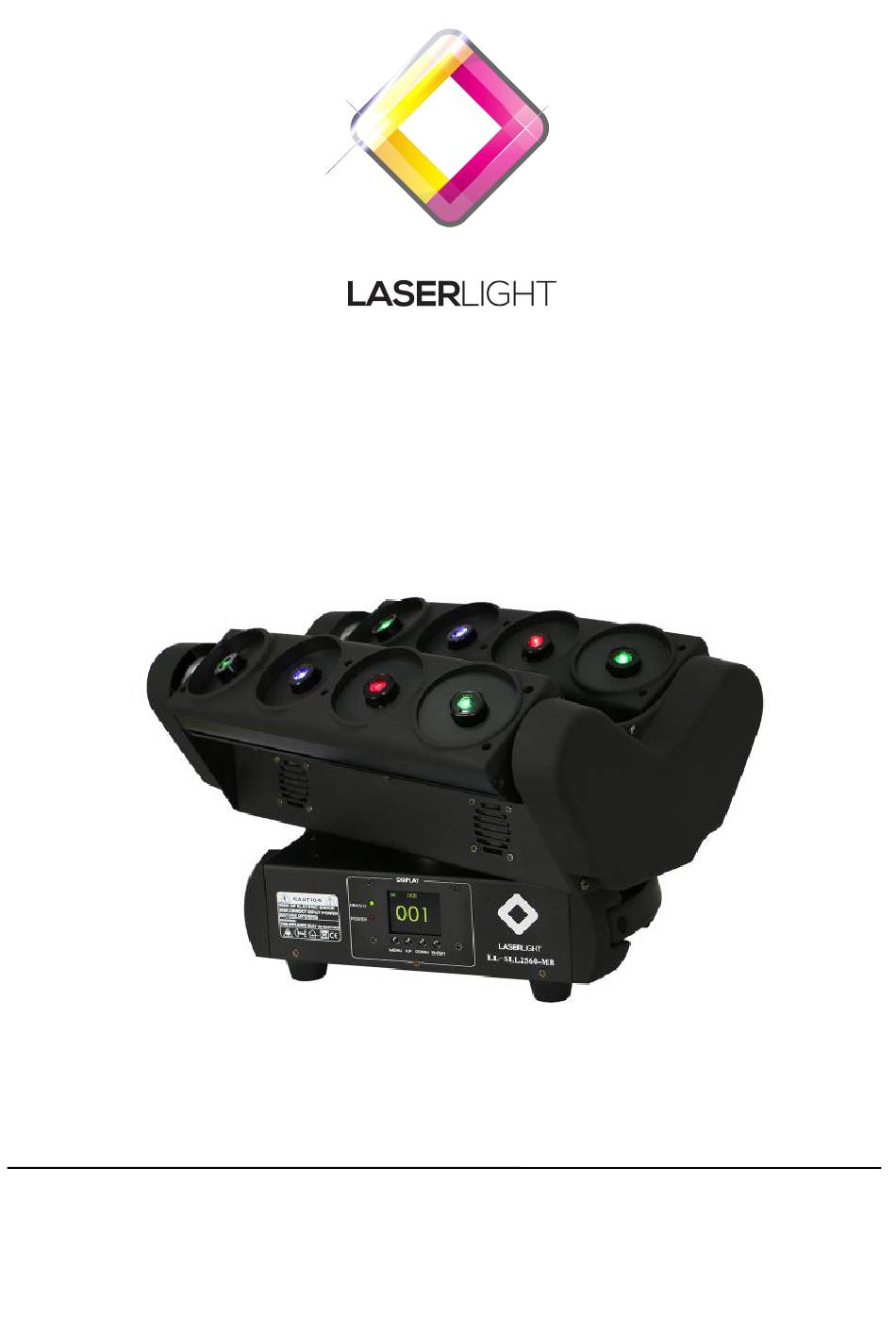

- Page 1 LL-SLL2560-MB Professional Stage Lighting Laser show...
- Page 2 Thank you for purchasing this product. To optimize the performance of this product, prior to use, please read these operating instructions carefully to familiarise yourself with the basic operation of this unit. Please keep the manual in safe price for future reference.
- Page 3 1. Please check the voltage whether is the same with the one showed on the equipment or not. 2. It must ask for the technical person and set the light safety when installation. And let the light beam at the suitable angle. 3.
- Page 4 7.Please keep that there's no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe when the equipment was working. 8.Before connect power, check the plug is immobility or not, power line should be connect well. 9.Please do not open or close the equipment frequently that's to avoid any affect to the life span of the laser diode, and try the best to avoid the long time working.
-
Page 5: Tft Display
TFT setting: Mode TFT DISPLAY Sound Auto mode(1-8effect)ca n choice either of 8 effects DMX512 control mode，two mode （8CH/19CH)can choice either of 8CH/19CH. 1. DMX Setting： Input dmx singal, and the link the dmx controller and the lights by the control line as the following picture, you can control the lights by the controller. - Page 6 Link the lights as the following picture (the light which does not receive signal, only output signal, will be the master light)， master-slave set as 19CH： TFT display panel, as following： Touch keys and TFT menu display, menu operation is simple and easy to use.
- Page 7 earth wire correctly or not. The specification of the front and rear panel: Power input to the socket Power switch button Fuse 2A DMX IN/ DMX OUT：DMX signal output and input TFT display LE Technical Specifications...
- Page 8 SPIDER MOVING LASER BEAM Power Supply: AC100 ~ 240V 50 / 60Hz Consumption: 150W Laser: 2x Red-200mW / 4xVerde-80mW / 2xAzul-500mW Bread: 540 ° Tilt: 270 ° Working mode: AUTO / SOUND / MASTER-SLAVE / DMX DMX: 8CH / 19CH configurable Diplay: LCD Dispaly Net weight: 8 kg Gross weight: 9.5 kg...
- Page 9 Signal link(on/off) push rod delay (on/off) ID code(0-25) invalid temperature set(50°-85°）invalid temp protect (on/off) invalid screen protect(on/off) screen rotating (on/off) LOGO(on/off) system reset(enter?) laser bright (default 255) factory reset ( enter ?) X axis motor (0-255) system Y1 axis motor (0-255) testing Y2 axis motor(0-255) laser bright (0-59 OFF, 60-255 ON)
- Page 10 Secondary menu include of running mode, address setting, Language setting, advanced settings, system setting, system information and so on. running mode, at the same time only can run one mode, select the DMX mode or automatic mode, press the "ENTER" button can also choose different control mode channel or automatic mode effect.
- Page 11 signals in a posture of disconnected before the control signals. Push rod delay---putting delay after opening, accused of dimming soft push rod. The push rod delay can choose whether to start in control. ID code----invalid temperature protect----invalid screen protect---can setting of off/on. When off, after screen play, clean screen.
- Page 12 running time (use of total time) Temperature--invalid Software version, currently used program version. DMX-512 Channel introductions： 1. 19CH mode as following: control function Channel Value 0-255 X motor 0-255 Y1 motor 0-255 Y2 motor 0-255 X fine tuning (16Bit) 0-255 Y fine tuning(16Bit) 0-255...
- Page 13 0-255 5 light-dimmer from dark to bright 0-255 6 light-dimmer from dark to bright 0-255 7 light-dimmer from dark to bright 0-255 8 light-dimmer from dark to bright invalid 6-30 jump change(motor by 512 control) 31-55 gradual change (motor by 512 control) 56-80 pulse change(motor by 512 control) 81-105...
- Page 14 8CH Mode as following: Channel Value Control function 0-255 X motor 0-255 Y1 motor 0-255 Y2 motor total light-dimmer 0-255 open(0-59OFF,60-255ON) no strobe 1-255 strobe from slow to fast invalid 6-30 jump change(motor by 512 control) 31-55 gradual change (motor by 512 control) 56-80 pulse change(motor by 512 control) 81-105...
- Page 15 Maintenance Maintenance should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. Always disconnect from the mains when the device is not in use or before cleaning it.
