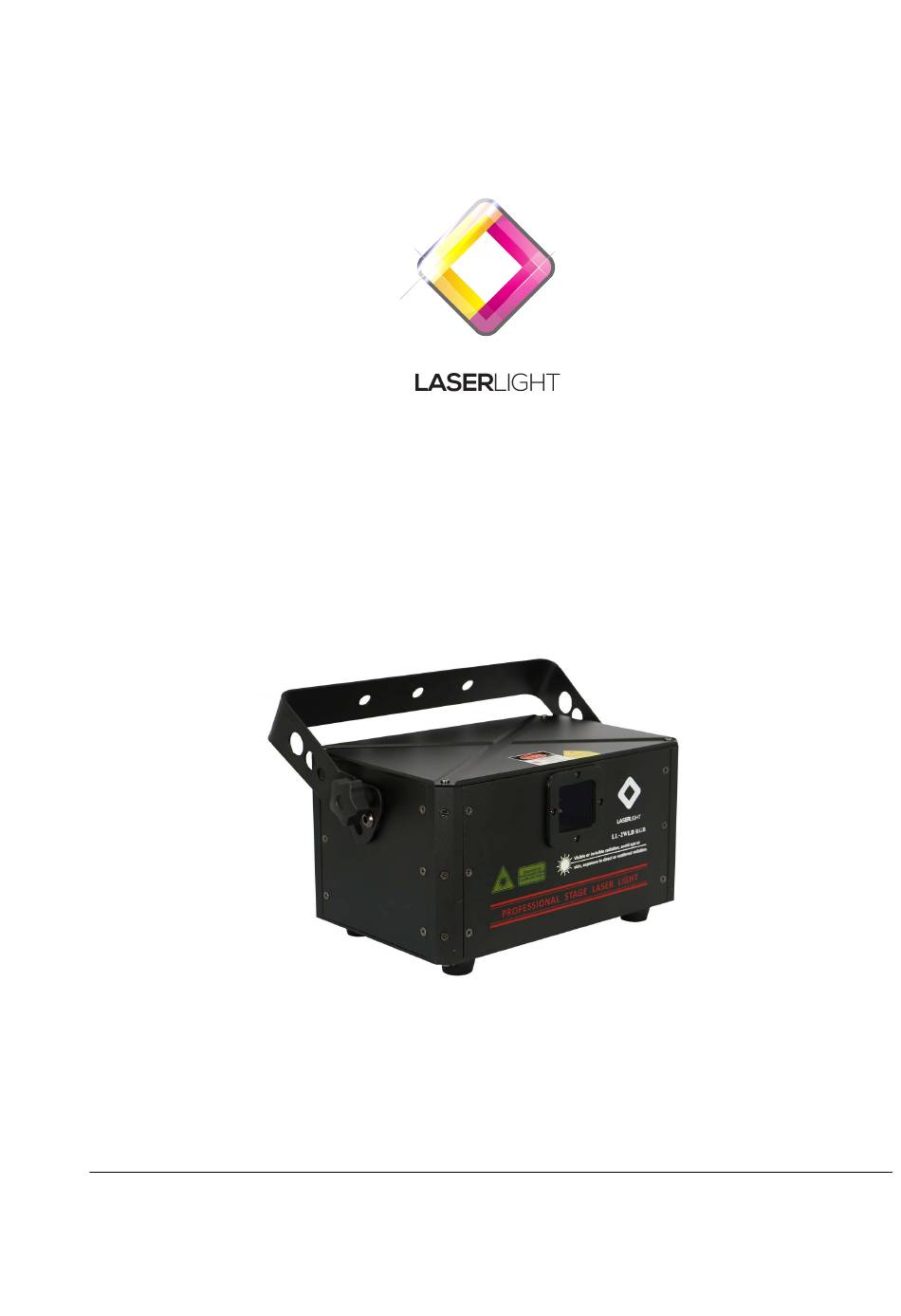

- Page 1 Professional stage animation laser light LL-2WLD RGB Professional Stage Lighting Laser show...
-
Page 2: Installation
Thank you for purchasing this product. To optimize the performance of this product, prior to use, please read these operating instructions carefully to familiarise yourself with the basic operation of this unit. Please keep the manual in safe price for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required. -
Page 3: Lcd Setting
4.This unit should be keep dry, do not use in the rain and dusty environment. It can be use in the outdoor with the water-proof cover protector. 5. Set the light immobility and try to avoid strong shake or hit. 6.Prevent dust into the equipment to avoid problems. - Page 4 DMX setting: Input dmx singal, and the link the dmx controller and the lights by the control line as the following picture, you can control the lights by the controller. 1. Master-slave setting: Link the lights as the following picture (the light which does not receive signal, only output signal, will be the master light) ...
- Page 5 Using before pls must be check power supply link with earth wire correctly or not. The specification of the front and rear panel: 1. Power input to the socket 2. Power ON/OFF 3. Laser safety key 4. LCD display 5.
- Page 6 LCD function menu Settings, as following：...
- Page 7 DMX-512 channel Description ： 1、12channel-mode, as following: channel channel control content value close light 0～41 Laser OFF 42～83 Manual control CH2-CH12 valid Automatic 84～125 Run beam effects build-in, CH2-CH12 invalid 126～167 Run animation effects build-in, CH2-CH12 invalid 168~209 Run beam effects build-in, CH2-CH12 invalid Music 210～251 Run animation effects build-in, CH2-CH12 invalid...
- Page 8 pattern 128～159 vertical 160～191 moving vertical moving speed choose 192～223 224～255 1～127 pattern size choose pattern 128～159 zoom out speed choose zoom 160～191 enlarge speed choose 192～223 zoom speed choose 224～255 CH9 zoom resizing 1～255 pattern zoom resizing choose CH10 pattern 1～127 drawing speed choose...
- Page 9 192～223 left rotating speed choose 224～255 right rotating speed choose 1～127 level rotating angle choose pattern A level 128～159 rotating level rotating speed choose 160～191 192～223 224～255 1～127 vertical rotating angle choose 128～159 pattern A vertical rotating speed choose 160～191 vertical 192～223 rotating...
- Page 10 CH14 128～159 30°rotating speed choose pattern B 160～191 180°rotating speed choose rotating 192～223 left rotating speed choose 224～255 right rotating speed choose CH15 1～127 level rotating angle choose 128～159 pattern B level level rotating speed choose 160～191 rotating 192～223 224～255 1～127 vertical rotating angle choose pattern B...
-
Page 11: Maintenance
Maintenance Maintenance should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. Always disconnect from the mains when the device is not in use or before cleaning it.
