aria

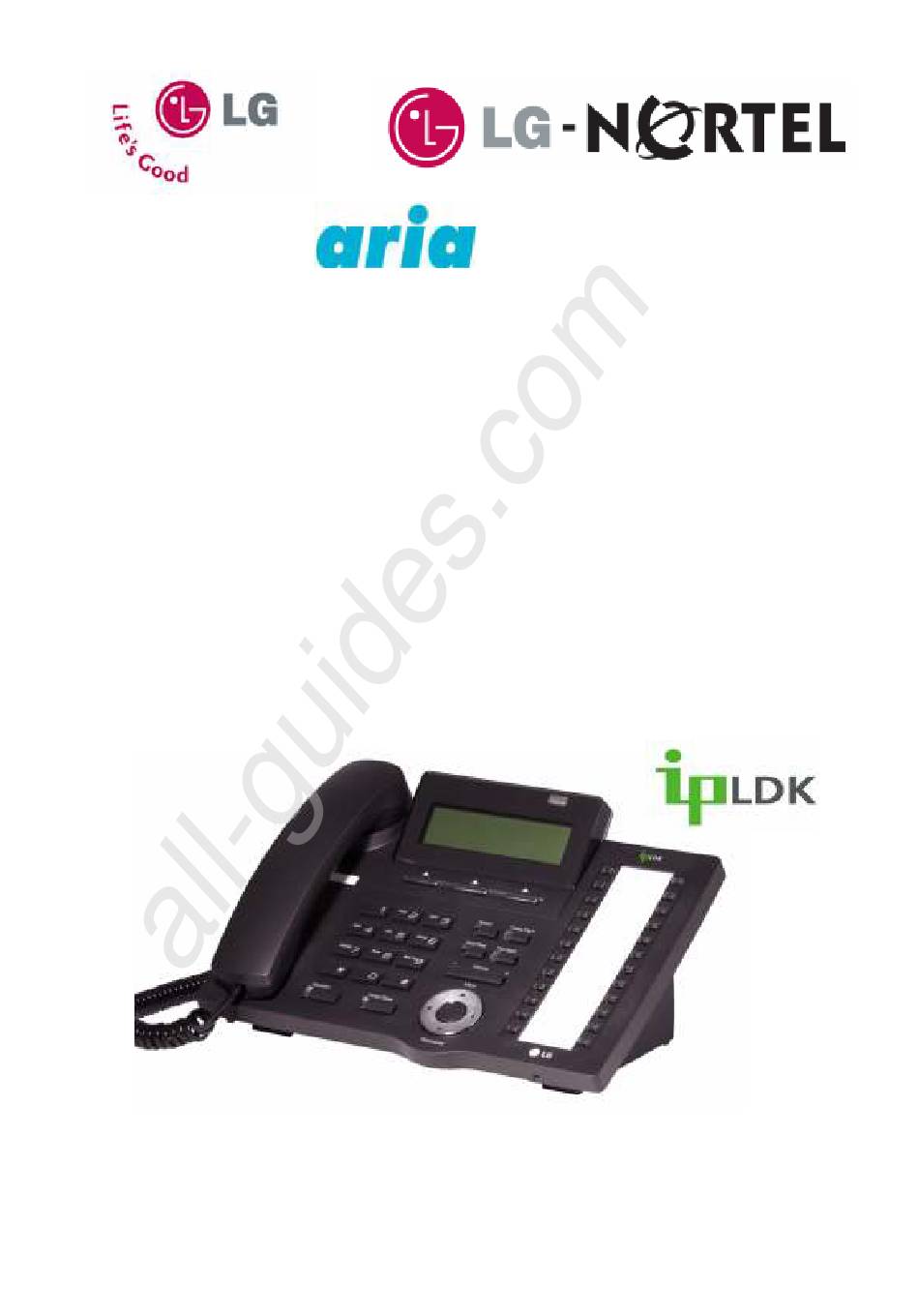

DIGITAL KEY TELEPHONE SYSTEM USER'S GUIDE
–24IP
Digital Key Telephone
Digital Key Telephone
Digital Key Telephone
Digital Key Telephone
Single Line Telephone (Analogue) Operation,
Single Line Telephone (Analogue) Operation,
Single Line Telephone (Analogue) Operation,
New LDP Keyphone Operation.
All manuals and user guides at all-guides.com
System
System
System
System
New Zealand
New Zealand
USER GUIDE
USER GUIDE
~ Contents ~
~ Contents ~
Quick Reference Guides,
Quick Reference Guides,
Digital Keyset Features,
Digital Keyset Features,
Digital Keyset Features,
Attendant Operation,
Attendant Operation,
Attendant Operation
New LDP Keyphone Operation.
1
NZ 0800 366363
- 24IP
info@cts.co.nz
CTS Ltd 19082008
