3.1 B200 PF with truck power take-off

3.1.1 Installation of the compressor
The B200 PF compressors have a male splined shaft
DIN 5462 / ISO 14 and a mounting flange ISO 7653-D
that allows them to be installed directly on declutchable
power take-offs.
Power Take Off specifications :
• Must allow a gravity torque of 50 Nm and be able to
accept a working torque of 124 Nm along all the
unloading duration.
Tank builders :
• MERCEDES :
- Original model in aluminium type NA 131 2C com-
patible, in compliance with the dispensation delive-
red by MERCEDES.
- Every other model in cast iron or aluminium in
compliance with the specifications above.
• DAF / IVECO / MAN / RVI / SCANIA :
- Every original or not original model, whatever the
material : cast iron or aluminium, in compliance
with the specifications above.
• VOLVO :
- Original model in aluminium type PTR DM compa-
tible for the range FH/FM in compliance with the
dispensation delivered by VOLVO.
- Every other model in cast iron or aluminium in
compliance with the specifications above.
Not allowed :
• Power take off with double outlet
Installation and operating conditions :
• The use of the discharge flexible supplied by
MOUVEX, fitted in accordance with the B200
Instructions.
• The use of the fixation kit supplied by MOUVEX,
fitted in accordance with the B200 Instructions.
• No extra bracket required to fix the B200.
• B200 must be fitted, operated and serviced in a pro-
per installation in accordance with the B200
Instructions, with the PTO Manufacturer and Truck
Builder Instructions.
Installation is done with screws or studs, minimum grade
8.8.
The B200 PF is provided with a mounting kit that includes
a metallic PTO seal, and 4 specific nuts and washers
that it is essential to use.
NT 1401-X00 10 18 B200 Flow Control e

3. INSTALLATION

WARNING
If this is possible, tighten the 4 nuts to 37 Nm for all the
PTOs. Don't put any grease on the studs.

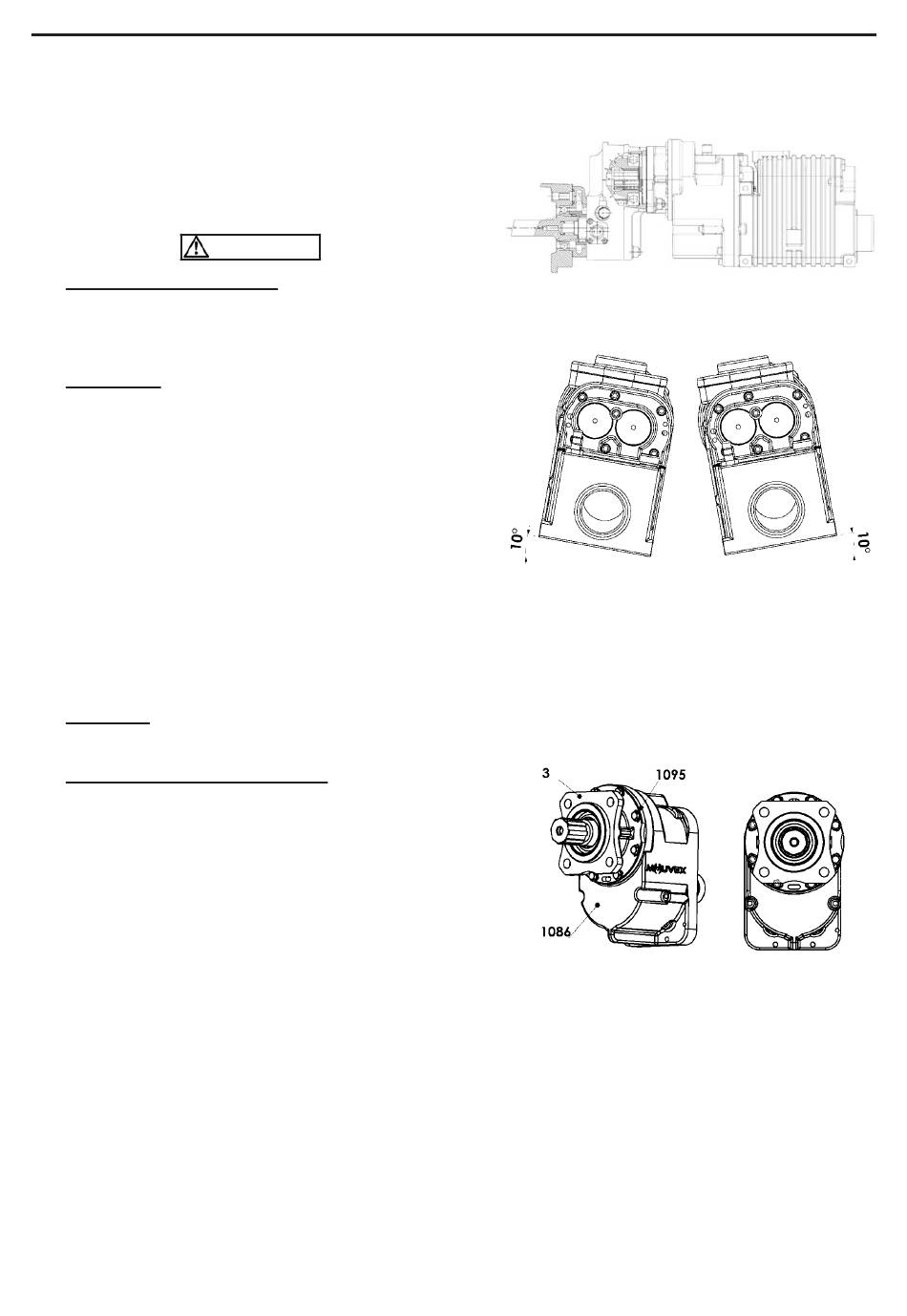

The compressor can be mounted in slightly tilted posi-
tion, but should remain within the angular values defined
on the figures below.
The tapped holes in step-up casing 1086 and the ope-
nings on cover 3 can be used to obtain a suitable incli-
nation, whatever the inclination of the PTO flange.
To obtain only a slight inclination of the PTO flange, it is
possible to bring the compressor back in a horizontal
position, taking care to proceed as follows :
• Loosen the 8 screws 1095 without removing them.
• Put the compressor in the desired position.
• Tighten the screws 1095.
10/22
Initial position
