Baby Love ODYSSEY LX1065T Series Instruction Book

Twin umbrella layback stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

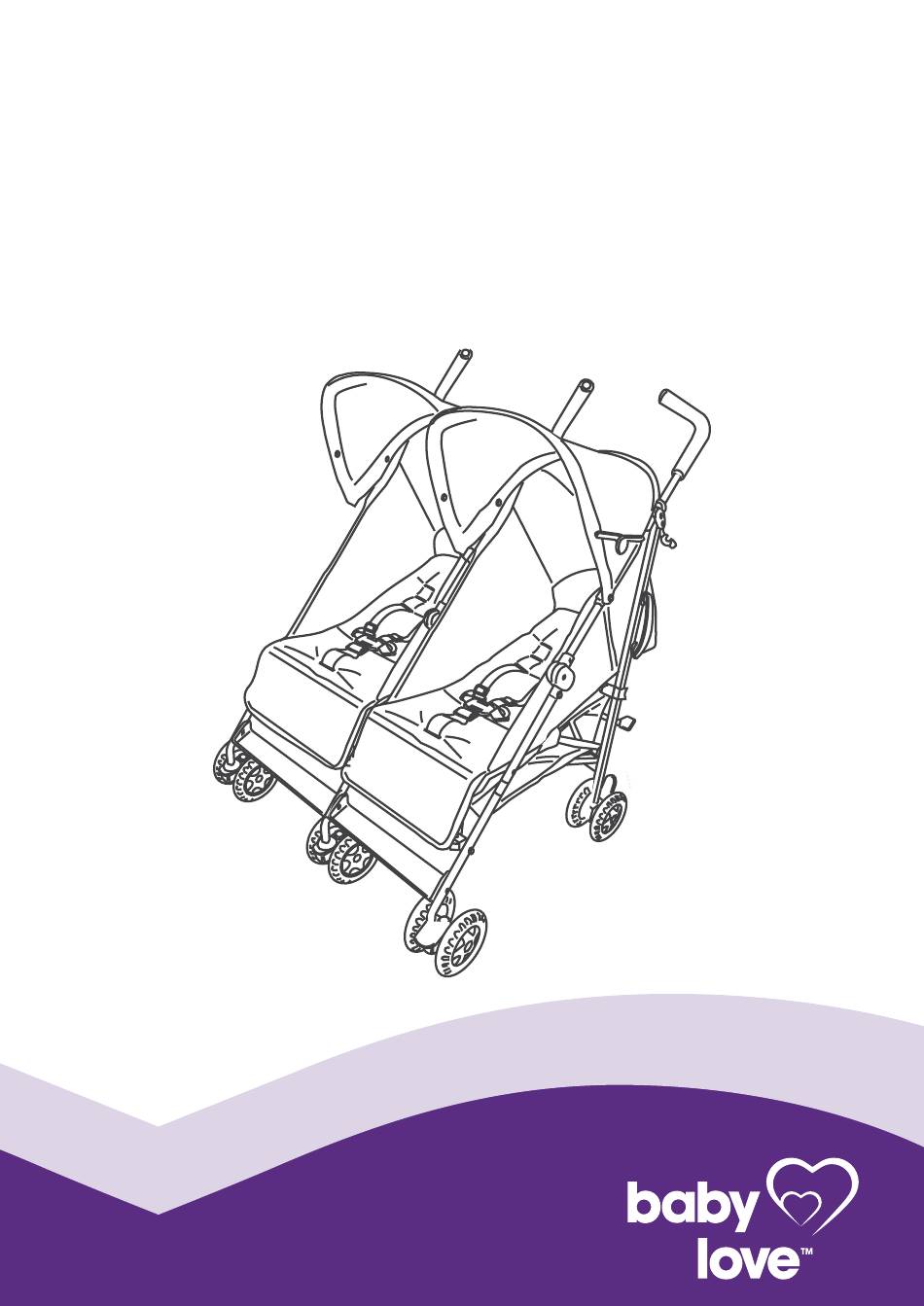

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
ODYSSEY
TWIN UMBRELLA LAYBACK STROLLER
INSTRUCTION BOOK
Series LX1065T

Advertisement

Table of Contents
loading

Related Manuals for Baby Love ODYSSEY LX1065T Series

Summary of Contents for Baby Love ODYSSEY LX1065T Series

  • Page 1 KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE ODYSSEY TWIN UMBRELLA LAYBACK STROLLER INSTRUCTION BOOK Series LX1065T...

  • Page 2: Important Notes

    IMPORTANT NOTES IMPORTANT NOTES: ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. • USE GREAT CARE WHEN USING THE STROLLER ON STAIRS, ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
  • Page 3 WARNINGS WARNINGS: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. • DO NOT LEAVE CHILDREN UNATTENDED. • SECURE THE CHILD IN THE HARNESS AT ALL TIMES. • DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER. •...

  • Page 4: Manual Handling Techniques

    MANUAL HANDLING TECHNIQUES SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •...

  • Page 5: Parts List

    PARTS LIST 1 x Stroller Frame, Seat & basket 2 x Canopies 3 x Sets of Front Wheels www.babylove.com.au...

  • Page 6: Opening The Stroller

    1. OPENING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES. • RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE FRAME. • WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS.
  • Page 7 1. OPENING THE STROLLER Stand the stroller upright. Hold the stroller handle with one hand and with the other hand release the storage latch. www.babylove.com.au...
  • Page 8 1. OPENING THE STROLLER Holding the handles, lower the front legs towards the floor. The stroller is now partially open. CAUTION To fully open the frame, continue to hold the handles. Place one foot on the lower locking bar peg and push down until the locking hinge clicks into place.
  • Page 9 1. OPENING THE STROLLER The frame is fully opened and locked. Check that both the upper hinge and lower locking bar are fully engaged before using the stroller. 2. ASSEMBLING AND REMOVING THE FRONT SWIVEL WHEELS Take each front swivel wheel assembly and push it onto each of the front legs until it clicks into place.
  • Page 10 3. USING THE FRONT SWIVEL WHEELS PLEASE NOTE: Always lock the swivel wheels when using the stroller on rough surfaces as this will minimise wheel wobble. The swivel wheels should only be locked when the wheels are in the trailing position (wheels under frame). To lock the swivel wheels, lift the locking clip up.

  • Page 11: Using The Brakes

    4. USING THE BRAKES WARNING: ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY. To lock the brakes fully, push down on each brake lever using your foot. Push the stroller backwards and forwards a few times to make sure the brakes are locked.
  • Page 12 5. ADJUSTING THE LEG SUPPORTS IMPORTANT NOTES: • THE LEG SUPPORT FEATURE IS PROVIDED FOR YOUR CHILD'S COMFORT. • THE LEG SUPPORT IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT. • DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG SUPPORT. IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED.
  • Page 13 5. ADJUSTING THE LEG SUPPORTS Raise the leg support by lifting it until the release latches lock into place. www.babylove.com.au...
  • Page 14 6. ADJUSTING THE BACKRESTS WARNINGS: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN LESS THAN 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.
  • Page 15 6. ADJUSTING THE BACKRESTS To raise the backrest, hold the backrest along the bottom edge with To raise the backrest, hold the backrest along the bottom edge with both hands and lift to select a more upright seating position. both hands and lift to select a more upright seating position. www.babylove.com.au...

  • Page 16: Important Note

    7. ATTACHING AND USING THE CANOPIES IMPORTANT NOTE: The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN. The canopy or hood on this product will not give your child total protection from the harmful rays of the sun. Place the canopy on the stroller frame and push the canopy clips on the sides of the canopy onto the stroller frame until they snap into place.
  • Page 17 7. ATTACHING AND USING THE CANOPIES To fold the canopy, place two fingers under the bar of the canopy tension brackets (located on each side of the canopy), push the bar up, then push the canopy backwards. To open the canopy, pull the canopy forward, then lock the canopy tension brackets by placing two fingers on top of the tension bracket bar and push down to lock into place.
  • Page 18 7. ATTACHING AND USING THE CANOPIES To open the canopy window, pull the canopy window flap away from the canopy. Roll the canopy window flap up and secure with the elastic loop and toggle. www.babylove.com.au...
  • Page 19 8. SECURING YOUR CHILD IN THE HARNESS WARNING: USE THE HARNESS AT ALL TIMES. • ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED HARNESS. • THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD. • NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE STROLLER, BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY POSE A STRANGULATION HAZARD.
  • Page 20 8. SECURING YOUR CHILD IN THE HARNESS Shoulder straps Buckle housing Waist Waist strap strap Crotch strap Position the shoulder strap tongue on the top of the waist buckle tongue on both sides. Shoulder strap Shoulder strap Buckle housing Waist Waist strap strap...
  • Page 21 8. SECURING YOUR CHILD IN THE HARNESS 3 bar slider 3 bar slider Waist strap 3 bar slider Crotch strap Tighten or loosen crotch straps by sliding the 3 bar sliders up or down. 4 bar slider Tighten or loosen the waist straps, hold and lift the 4 bar slider and then pull the harness strap to adjust to the desired fit.
  • Page 22 8. SECURING YOUR CHILD IN THE HARNESS Tighten or loosen the shoulder straps, slide the 3 bar slider up or down to adjust to the desired fit. Always adjust the harness strap when changing the seating position of the child. To release the buckle, squeeze the top and buckle tongues together with enough pressure so the buckle tongues can release from the buckle housing.
  • Page 23 8. SECURING YOUR CHILD IN THE HARNESS The stroller seat has 3 sets of harness slots at different heights to accommodate the child. To change the shoulder harness height, push the shoulder harness tongue out of the current harness slot and through the back of the seat.

  • Page 24: Using The Tether Strap

    9. USING THE TETHER STRAP WARNINGS: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY. • THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES AND USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE STROLLER ROLLING AWAY OR TIPPING OVER.

  • Page 25: Using The Stroller

    10. USING THE STROLLER PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • Always ensure you bend your knees where appropriate and take due care when lifting the frame. • With your hand through the wrist tether strap loop, push the stroller holding the handle.

  • Page 26: Folding The Stroller

    11. FOLDING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • REMOVE THE CHILD FROM THE STROLLER BEFORE COMMENCING ANY FOLDING OPERATION. • FOLD THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE YOUR HANDS. • WHEN FOLDING THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS.
  • Page 27 11. FOLDING THE STROLLER Lock the brakes. (Refer to Section 4A) Lock the swivel wheels. (Refer to Section 3A) www.babylove.com.au...
  • Page 28 11. FOLDING THE STROLLER Close the canopy. (Refer to Section 7C) Raise the backrest to the fully upright position. (Refer to Section 6B) www.babylove.com.au...
  • Page 29 11. FOLDING THE STROLLER Press the release latch in on the primary lock and at the same time lift the handle up until the frame hinge unlocks. 1.Press CAUTION 2.Lift CAUTION www.babylove.com.au...
  • Page 30 11. FOLDING THE STROLLER Then with both feet on the ground push the handles forward until the frame is fully folded. The locking clip will automatically clip onto the frame and keep the stroller folded. CAUTION www.babylove.com.au...
  • Page 31 12. LIFTING AND CARRYING THE STROLLER CAUTION www.babylove.com.au...

  • Page 32: Care And Maintenance

    CARE AND MAINTENANCE • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight for extended periods of time. • Remove fabric covers and trims may be cleaned using warm water with household soap or mild detergent.
  • Page 33 IMPORTANT NOTES www.babylove.com.au...
  • Page 34 Customer Service Ph: 1300 131 477 Email: info@babylove.com.au Distributed by: Nursery Elegance Pty. Ltd. ACN: 122 443 387 6 Thorpe Street, Sunshine, Victoria, 3020, Australia Due to our continuing program of development, Nursery Elegance reserves the right to alter the specifications, colour or design without any further notice.
