Surface mount bottle filling station
Table of Contents

Advertisement

Plumbing Connections

• Ensure lines and ports remain clean and free of contaminants during assembly.
• Purge each component if necessary.
• To ensure quick-connect connections seal properly, follow instructions per Figure 2, Page 2.
Connect Plumbing Lines
1. Connect water supply line to unit:
2. Connect the 3/8"O.D. Copper tube from the in-line strainer to the 3/8" to the Service Stop Valve.
3. Connect the 1-1/4"O.D. Drain Tray Outlet to the in-wall Drain Line using a Slip Joint Drain Union or compression clamp
(not supplied). Tighten all connections water tight.
4. Turn water supply on, inspect for leaks and correct any leaks before continuing.

Instruction for Use

1. Place container under the dispenser nozzle and depress the actuator button. Hold until container is filled to the level
desired.
2. To stop water flow, release actuator button. Pull container away from dispenser nozzle.
PRINTED IN U.S.A.
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com

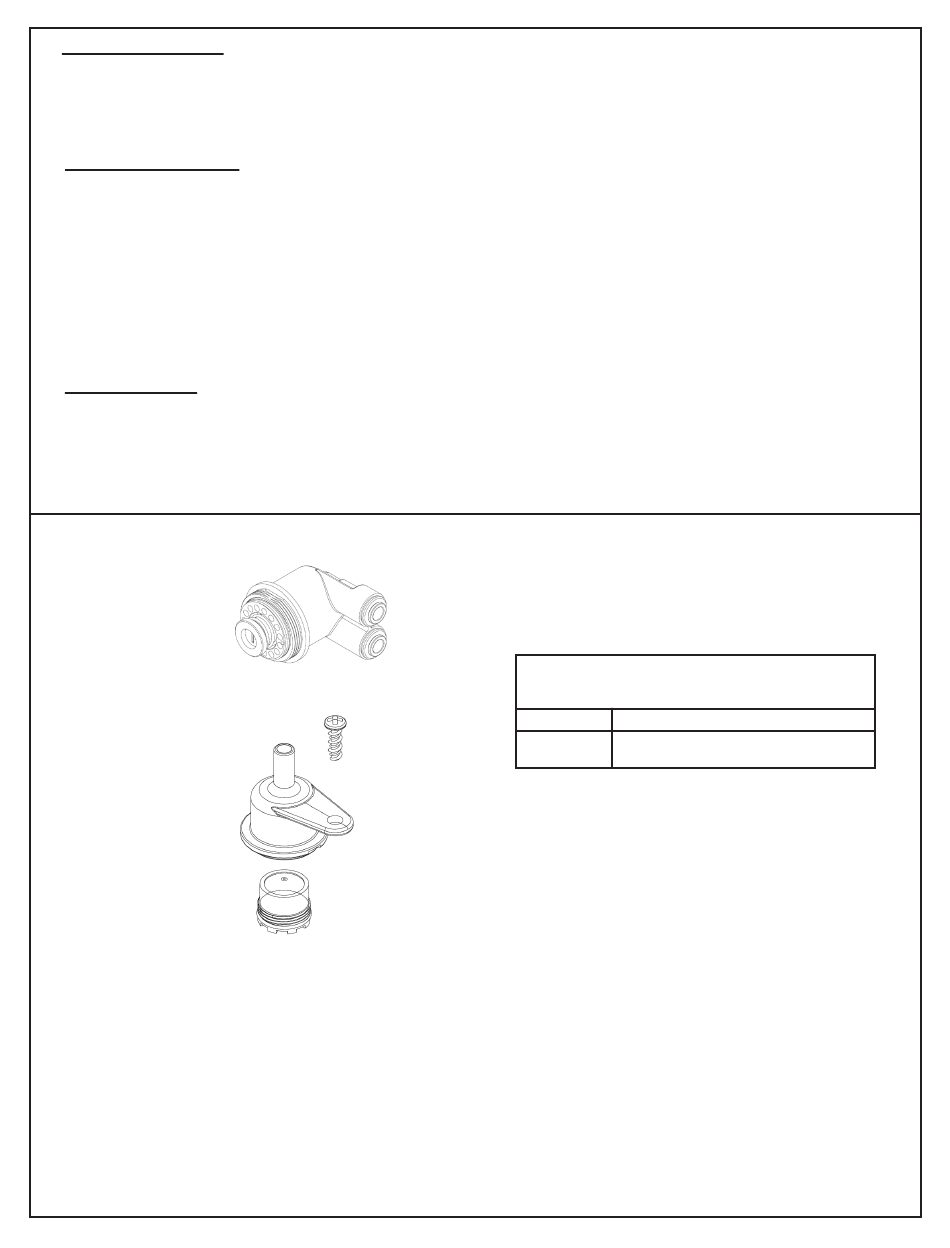

REGULATOR
AERATOR
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
EMASM*A

REPLACEMENT PARTS

PART NO.
1000001673
98546C
Page 5
DESCRIPTION
1.0 GPM REGULATOR KIT- EMASM
AERATOR KIT
0000001496 (Rev. F - 08/17)
